Zurn® P6900-TMV-1-XL 2499846
  1. pin-int

Zurn® P6900-TMV-1-XL 2499846

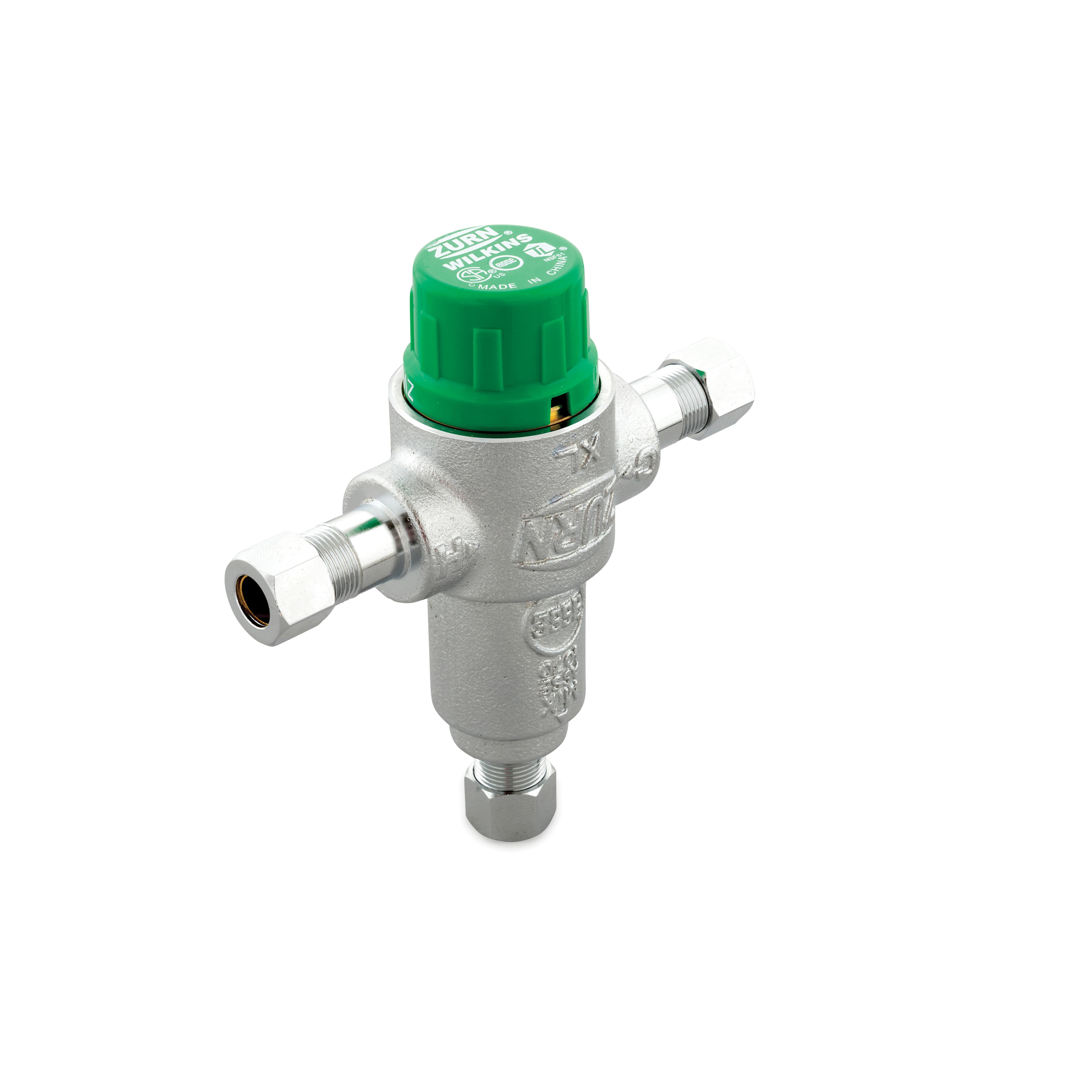

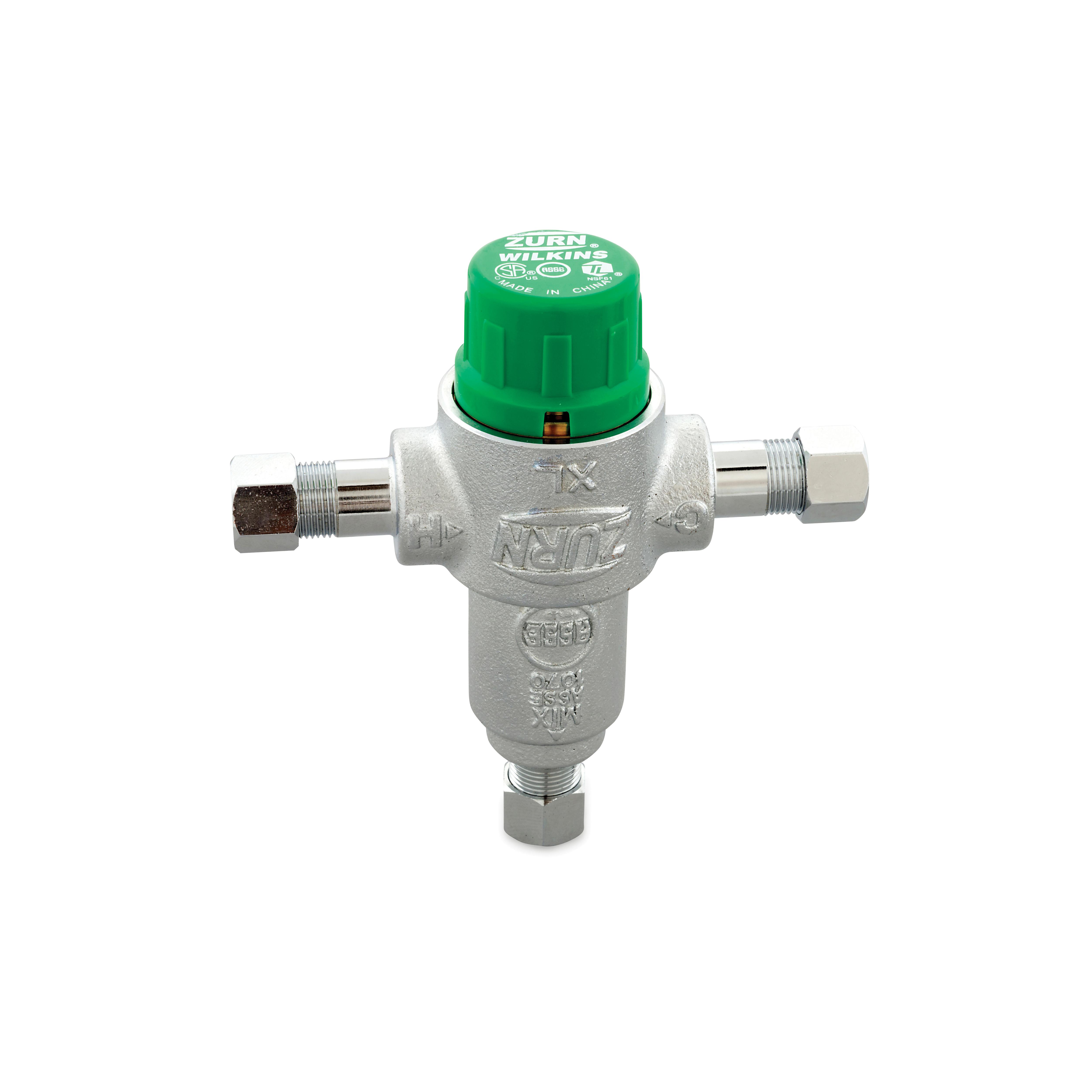

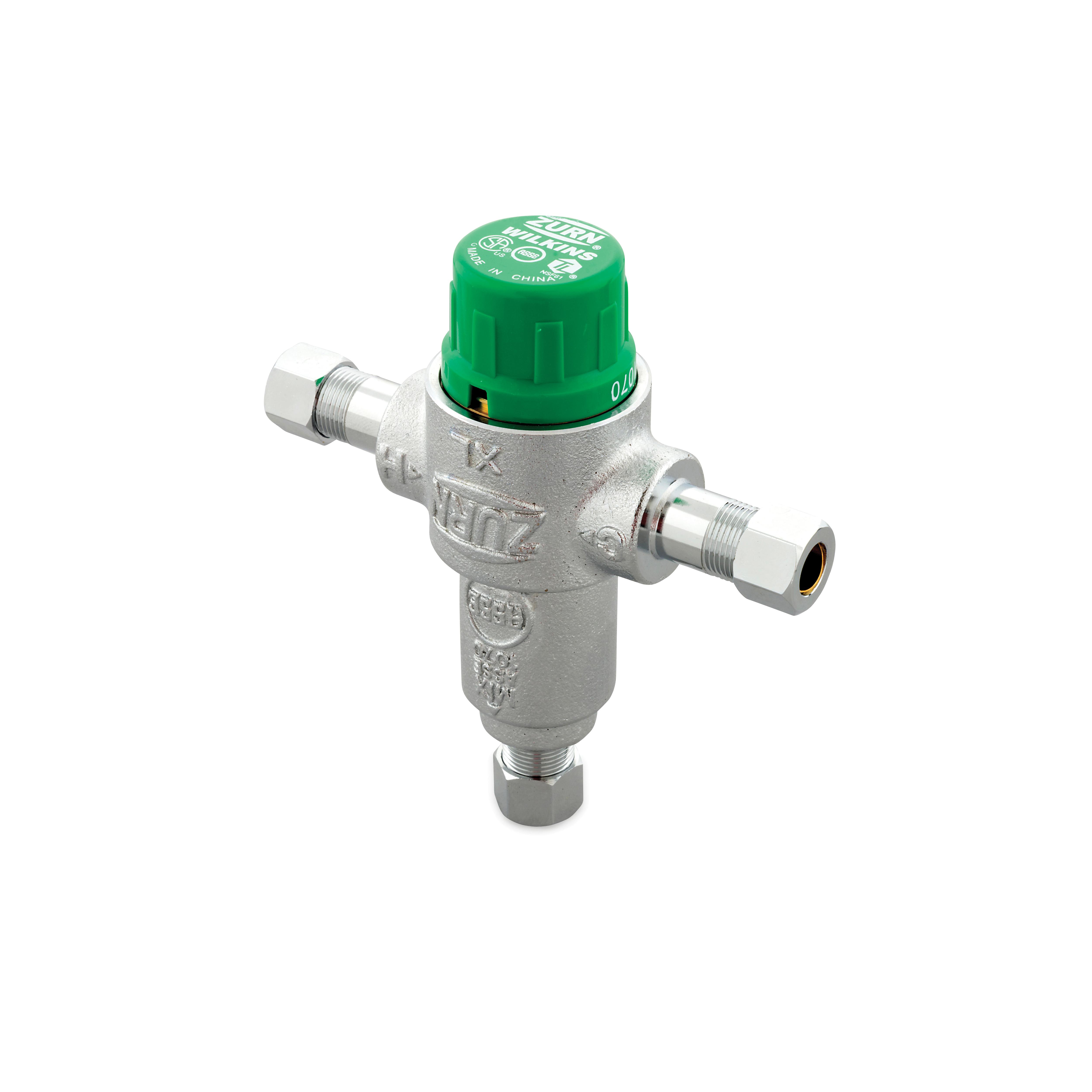

Zurn® P6900-TMV-1-XL Thermostatic Mixing Valve, 3/8 in Nominal, NPT, 0.5 to 4 gpm, 145 psi, 95 to 115 deg F

  • Manufacturer: Zurn Elkay Water Solutions
  • Brand Name: Zurn®
  • Part Number: 2499846
  • MPN: P6900-TMV-1-XL
  • UPC: 670240387003
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

Ideal for use where lead-free valves are required. The Zurn® model P6900-TMV-1 thermostatic mixing valve is designed to be installed at the point of use under sinks and sensor faucets to assist in the prevention of scalding. The valves rapid response and precise temperature control meet the stringent standards of ASSE 1070 listed for fixtures, sinks, lavatories or bathtubs. The P6900-TMV1-XL will mix hot and cold water from the distribution system to a final safer temperature outlet range of 95 to 115 deg. The 3/8 in compression fittings make this valve ideal for residential and commercial applications.

Zurn® Thermostatic Mixing Valve, 3/8 in Nominal, NPT Connection, Compression End, 145 psi Pressure, 0.5 to 4 gpm Flow Rate, 4-3/16 in Inlet to Outlet Length, 2-27/32 in Top to Inlet Center, Bronze Body, FKM Seal, Stainless Steel Trim, FKM Softgoods, Nickle Chrome-Plated, 95 to 115 deg F, Dimensions: 4-27/32 in H

Body Material      :      Bronze
Connection Type      :      NPT
Dimensions      :      4-27/32 in H
End Type      :      Compression
Finish      :      Nickle Chrome-Plated
Flow Rate      :      0.5 to 4 gpm
Inlet to Outlet Length      :      4-3/16 in
Nominal Size      :      3/8 in
Pressure Rating      :      145 psi
Seal Material      :      FKM
Softgoods Material      :      FKM
Temperature Rating      :      95 to 115 deg F
Top to Inlet Center      :      2-27/32 in
Trim Material      :      Stainless Steel
  • Control water temperature
