Zurn® AG-8 599366
  1. pin-int

Zurn® AG-8 599366

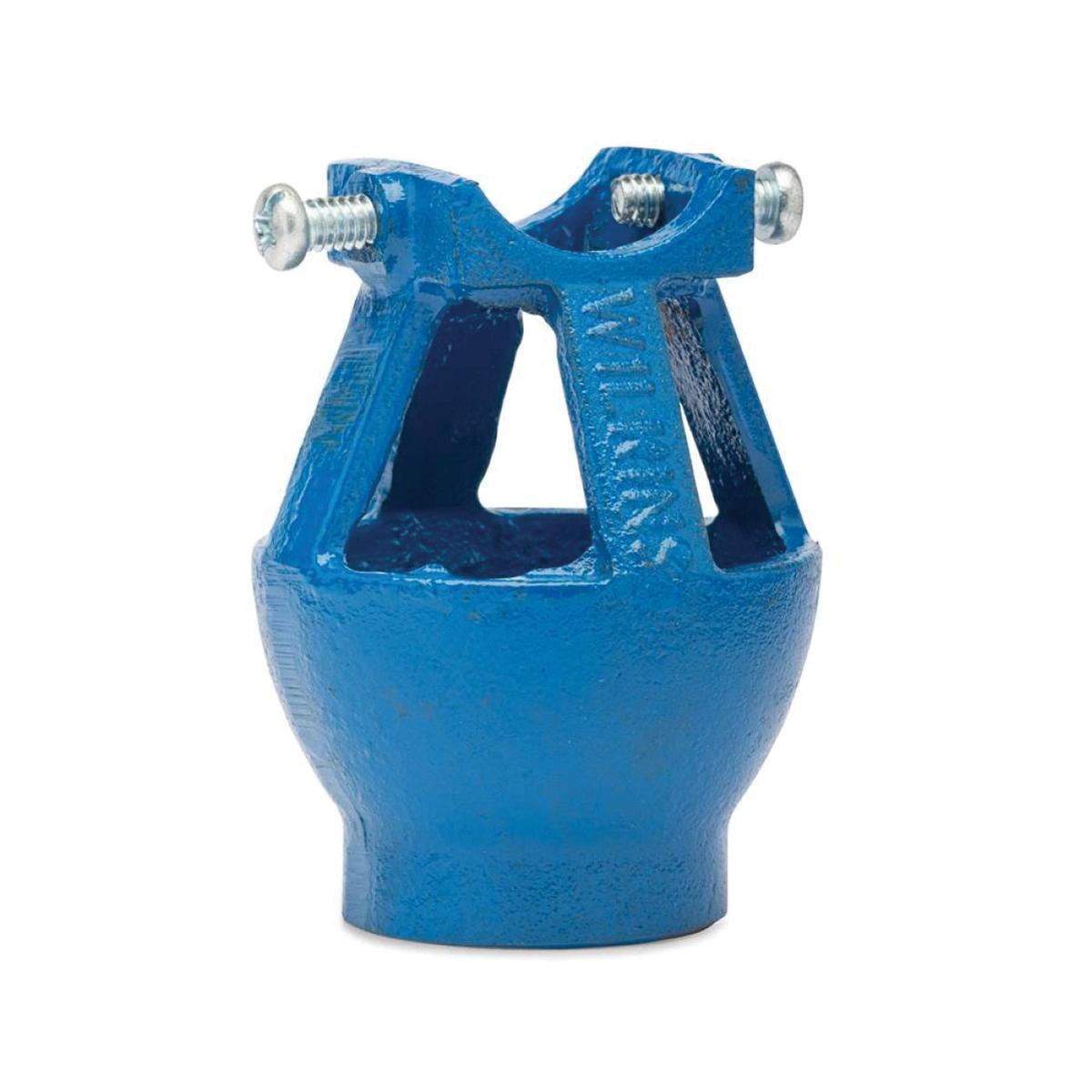

Zurn® AG-8 Air Gap Fitting, Cast Iron, 3-1/2 in L x 2-1/2 in W

  • Manufacturer: Zurn Elkay Water Solutions
  • Brand Name: Zurn®
  • Part Number: 599366
  • MPN: AG-8
  • UPC: 612052053073
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

The Zurn® AG air gap fitting for reduced pressure principle backflow preventers allows for the connection of a drain pipe to the backflow preventer to direct nuisance water discharge to a safe drain. Used in indoor installations of an RP assembly.

Zurn® Air Gap Fitting, AG Series, 1/4 to 1 in, For Use With: Model 975XL, 975XL2 and 975XL3 Backflow Preventers, Cast Iron, Gray, Finish: Epoxy-Coated, 3-1/2 in L x 2-1/2 in W, Domestic/Import: Import, Additional Information: 1 in NPT Outlet Pipe Size

Additional Information      :      1 in NPT Outlet Pipe Size
Color      :      Gray
Dimensions      :      3-1/2 in L x 2-1/2 in W
Domestic/Import      :      Import
Finish      :      Epoxy-Coated
Material      :      Cast Iron
Series      :      AG Series
Size      :      1/4 to 1 in
Suitable For Use With      :      Model 975XL, 975XL2 and 975XL3 Backflow Preventers
  • Device is necessary when installing a drain line and can be mounted to the body
  • Available for all Zurn® Wilkins reduced pressure principle assemblies
  • Eliminates cross connection between the drain and potable water supply
  • Zinc-plated steel bolts resists corrosion
