Zurn® 600XL-12 2390464

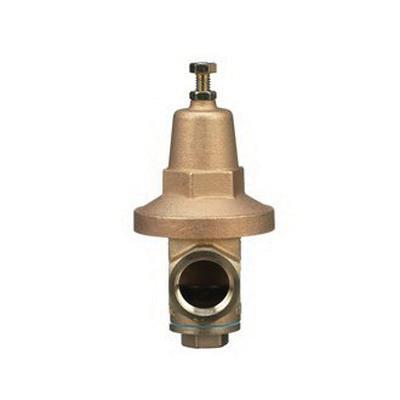

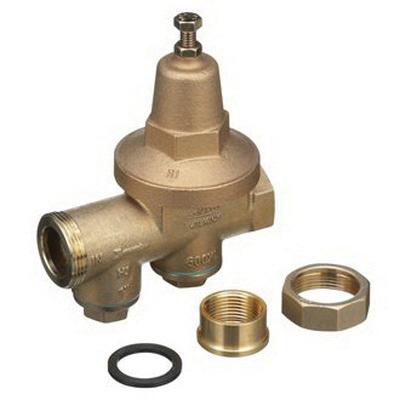

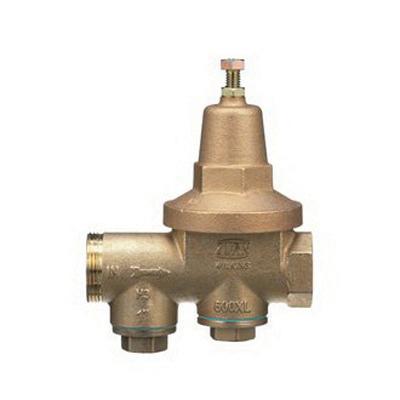

Zurn® 600XL-12 Water Pressure Reducing Valve With Integral By-Pass Check Valve and Strainer, 1/2 in Nominal, 300 psi

  • Manufacturer: Zurn Elkay Water Solutions
  • Brand Name: Zurn®
  • Part Number: 2390464
  • MPN: 600XL-12
  • UPC: 612052029566
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

The 600XL pressure reducing valve handles sandy, debris-laden water systems for high-flow capacity in residential, commercial and new construction applications. It meets compliance with universal plumbing code. The stainless steel strainer includes a standard 20 mesh configuration and separate-access cover for simplified cleaning, while the bronze threaded bell provides superior corrosion-resistance and speeds access to the internals - together, cutting labor time up to 50%. Internal components of the 600XL utilize a balanced design, providing accurate downstream pressure without consideration of the incoming pressure.

Zurn® Water Pressure Reducing Valve With Integral By-Pass Check Valve and Strainer, 1/2 in Nominal, FNPT Union x FNPT Connection, 300 psi, Material Standard: ASTM B 584, Bronze Body, Stainless Steel Seat, Bronze Stem, Lead-Free, 140 deg F, 6-1/4 in H x 5-1/2 in W

Body Material      :      Bronze
Connection Type      :      FNPT Union x FNPT
Dimensions      :      6-1/4 in H x 5-1/2 in W
Lead-Free/Contains Lead      :      Lead-Free
Material Standard      :      ASTM B 584
Nominal Size      :      1/2 in
Pressure Rating      :      300 psi
Seat Material      :      Stainless Steel
Stem Material      :      Bronze
Temperature Rating      :      140 deg F
  • Integral strainer is easily cleaned with the removal of one cap
