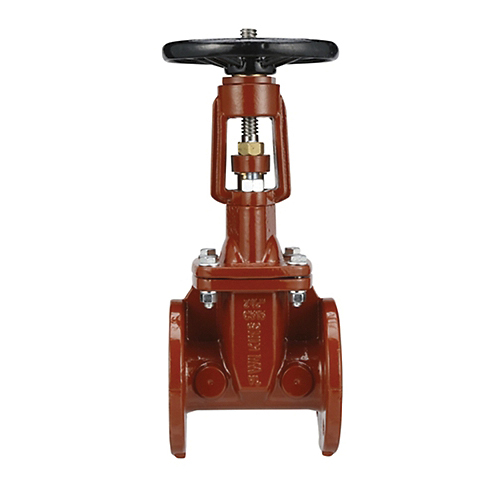

Zurn® 4-48OSY 2484879

The 48OS&Y Gate Valve is used to provide a visual indication of whether a valve is in the open or closed position, and is utilized on fire sprinkler system applications. Features of this resilient wedge gate valve include stainless steel internals and stem, and outside stem and yoke. The 48OS&Y has a maximum working water pressure of 250 psi, maximum working water temperature of 140 deg F, and hydrostatic test pressure of 500 psi. Choose from connection options such as flanged, grooved, or flanged x grooved ends.

Zurn® Resilient Wedge Gate Valve, 4 in Nominal, Flanged Connection, 250 psi, Water Media, 9 in Inlet to Outlet Length, 22-1/2 in Top to Inlet Center, Iron Body, 300 Series Stainless Steel Stem, 300 Stainless Steel Trim, Iron Handle, EPDM Softgoods, Handwheel Operator, 140 deg F, Material Standard: ASTM A536 65-45-12, Lead-Free, Model 48, Os and Y

• Easy indication of valve open or closed position for reduced inspection time
• For stand alone use or on Backflow Preventers
• Stainless steel internals and stem resist corrosion
• Low-lead law compliant
• AWWA Compliant C515, C-550
• UL® Listed
• C-UL® Listed

• Specification Sheet Specification Sheet
