Zoeller® 840-0006 2489642
  1. pin-int

Zoeller® 840-0006 2489642

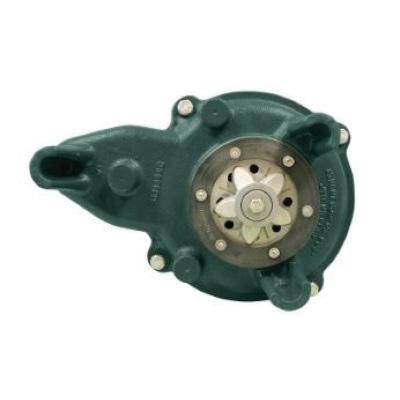

Zoeller® 840-0006 Grinder Pump, 200 to 575 V, 4.5 to 20 A, 2 hp, 3450 rpm Speed, Cast Iron, Powder-Coated Epoxy

  • Manufacturer: Zoeller Company
  • Brand Name: Zoeller®
  • Part Number: 2489642
  • MPN: 840-0006
  • UPC: 053514046262
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

Zoeller® Grinder Pump, Model: 840, 200 to 575 V, 4.5 to 20 A, 60 Hz, 2 hp, 3450 rpm Speed, 59 gpm Flow Rate, 1 ph, 3 ph, 1-1/4 in Discharge, 130 deg F, 15 in L x 12 in W x 24-3/4 in H, 125 ft Maximum Feet of Head, Ductile Iron Impeller, Ball Bearing, Cast Iron, Powder-Coated Epoxy

Amperage Rating      :      4.5 to 20 A
Bearing Type      :      Ball
Dimensions      :      15 in L x 12 in W x 24-3/4 in H
Discharge Size      :      1-1/4 in
Finish      :      Powder-Coated Epoxy
Flow Rate      :      59 gpm
Frequency Rating      :      60 Hz
HP Rating      :      2 hp
Impeller Material      :      Ductile Iron
Material      :      Cast Iron
Maximum Feet of Head      :      125 ft
Model      :      840
Phase      :      1 ph, 3 ph
Speed Rating      :      3450 rpm
Temperature Rating      :      130 deg F
Voltage Rating      :      200 to 575 V
  • Durable, heavy-duty, finned cast iron construction
  • Oil-filled, hermetically sealed motor with Class F insulation
  • Hardened stainless steel cutter and disc
  • Cutters protected from abrasive solids
  • Cutters can automatically alternate direction to enhance blade life and free hang-ups (automatic or manual)
  • Stainless steel screws, bolts and lifting bail
  • Easily adapts to many existing competitor's rail systems
  • Tandem seals with leak detection
  • Automatic thermal overload protection (1 ph)
  • Thermal sensor protection (standard on 3 Ph)
  • Legs for free-standing installation
  • Corrosion-resistant, powder-coated epoxy finish
  • Reversible cutter action
  • Carbon/ceramic tandem seals
  • Thermal sensors (overload on 1 ph)
  • Moisture probes
  • Balanced ductile iron impeller
  • Stainless steel cutter and plate
  • Stainless steel shaft
  • Stainless steel lifting bail
