Zoeller® 32334-0001 2493701

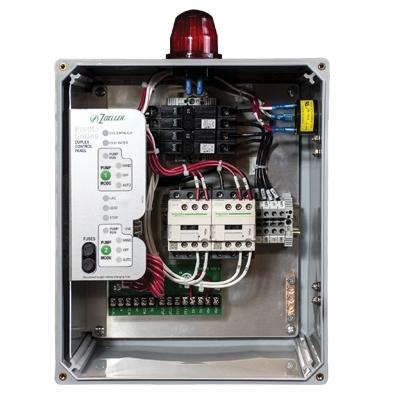

Zoeller® Pivot® Series 32334-0001 Duplex Control Panel

  • Manufacturer: Zoeller Company
  • Brand Name: Zoeller®
  • Part Number: 2493701
  • MPN: 32334-0001
  • UPC: 053514445904
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

The duplex pivot control panel for 115/200/230 V, 1 ph lift station pump applications ranging from 15 to 20 A. The panel comes with built-in audible and visual alarms. Now you can get Zoeller® quality in the whole system by pairing two pumps with our highly featured pivot control panel. The panel enclosure is NEMA 4X so it is able to be used outdoors and will withstand a variety of weather conditions.

Zoeller® Duplex Control Panel, Pivot® Series, 120/208/240 V, 40 W Power Consumption, 60 Hz, Additional Information: NEMA 4X Enclosure, 15 to 20 A Amperage Rating, 1-Phase, 30 A Breaker Rating

Additional Information      :      NEMA 4X Enclosure, 15 to 20 A Amperage Rating, 1-Phase, 30 A Breaker Rating
Frequency Rating      :      60 Hz
Power Consumption      :      40 W
Series      :      Pivot® Series
Voltage Rating      :      120/208/240 V
  • A duplex control panel capable of operating two pumps in a lift station application
  • A NEMA 4X enclosure able to withstand a variety of weather conditions
  • Red/amber/green LEDs for float switch indicators, pump run, high water, system ready and HOA functions
  • Ample room within the panel around the terminal block for field wiring
  • Test toggle will check all LEDs, globe and horn
  • Elapsed time and cycle counts can be downloaded via a built-in USB port
  • Adjustable settings
  • Smart float logic that will compensate for bad floats
  • Continuous run alarm with a 20 minute default and many other adjustable settings
  • Globe mode (solid, blink or alarm specific blink pattern)
