Zoeller® 32324-0001 2475015

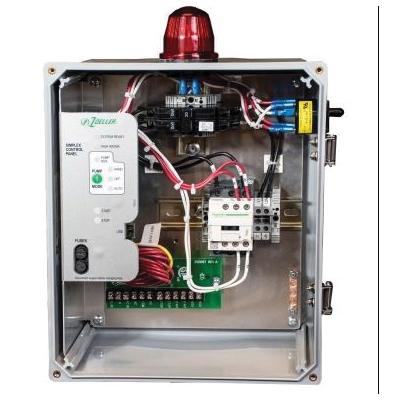

1 ph simplex and duplex panels loaded with many more standard features than typical panels. Many counters and alarms built-in.

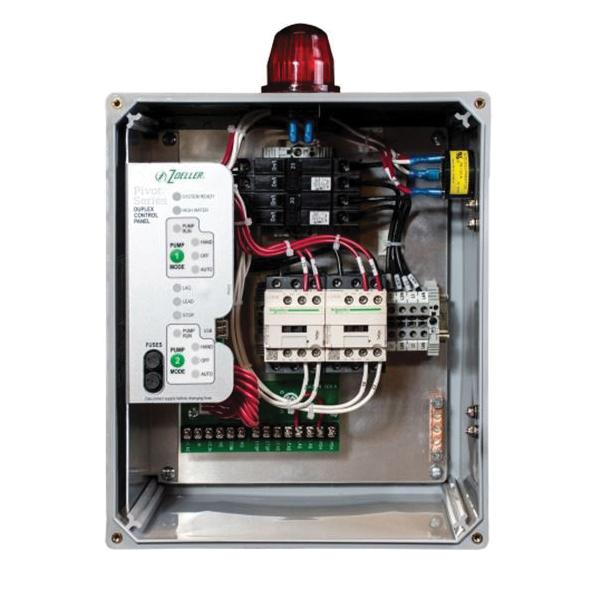

Zoeller® Duplex Control Panel, Pivot Series, 120/208/240 V, 40 W Power Consumption, 50/60 Hz, 7 to 15 A Contact Rating, -40 to 60 deg C, 12 x 10 x 6 in, Additional Information: 1-Phase, NEMA 4X Enclosures

• Red alarm beacon with 360 deg visibility
• Audible alarm buzzer rated 95 db at 2 ft (0.6 m)
• Silence/reset/test toggle switch with weather-proof rubber boot
• Hand/off/auto control are included for each pump
• Auxiliary output dry contacts (NO-COM-NC) terminals, Form C, 5 A resistive load
• Pump run dry contact, (NO-COM)

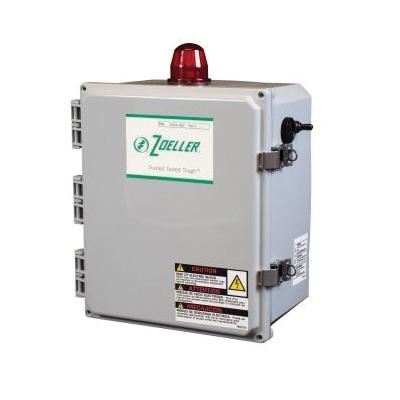

• NEMA 4X 14 x 12 x 6 in enclosure with lockable latch
• Control circuit powered by 120 VAC, 60 Hz
• Alarm circuit can be powered by separate power feed, if needed
• Alarm and control circuits individually fused, 3 A, fast acting, 120 VAC
• Circuit breaker protection on 1 ph models
• Multi-tap 200/230/460 V transformer on 3 ph models
• Max alarm and control circuit power consumption - simplex models 32 W, duplex models 40 W
• Max standby power consumption - 5 W
• Terminals for 120 V control power, 120 V alarm power, up to 4 float switches (duplex), pump input power
• 3 ph IEC motor contactors, models 208/230/380/460/575 VAC, 60 Hz
• Two sets of wiring schematics and installation instructions are included along with an inside door-mounted QR code for easy access to additional support material online
• All wires and terminal locations thoroughly labeled for easy identification
• All components are serviceable

• Full Engineering Drawing Full Engineering Drawing
• Instruction/Installation Manual Instruction/Installation Manual
• Line Drawing Line Drawing
• Specification Sheet Specification Sheet
• Video Link https://youtu.be/HyqU6OIcsTU
