Zoeller® 31324-0001 2474738
  1. pin-int

Zoeller® 31324-0001 2474738

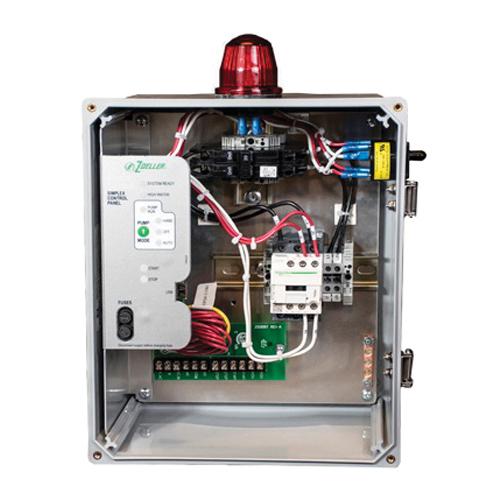

Zoeller® Pivot Series 31324-0001 Simplex Control Panel

  • Manufacturer: Zoeller Company
  • Brand Name: Zoeller®
  • Part Number: 2474738
  • MPN: 31324-0001
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

The simplex pivot Series control panel for 115/200/230 V, 1 ph lift station pump applications ranging from 7 to 15 A. The panel comes with built-in audible and visual alarms. Now you can get Zoeller® quality in the whole system by pairing a pump with our highly featured pivot control panel. The panel enclosure is NEMA 4X so it is able to be used outdoors and will withstand a variety of weather conditions.

Zoeller® Simplex Control Panel, Pivot Series, 115/200/230 V, Additional Information: 1-Phase, 7 to 15 A Full Load, 20 A Breaker Amperage Rating

Additional Information      :      1-Phase, 7 to 15 A Full Load, 20 A Breaker Amperage Rating
Series      :      Pivot Series
Voltage Rating      :      115/200/230 V
  • Red/amber/green LEDs for float switch indicators, pump run, high water, system ready and HOA functions
  • Ample room within the panel around the terminal block for field wiring
  • Test toggle will check all LEDs, globe and horn
  • Elapsed time and cycle counts can be downloaded via a built-in USB port
  • Adjustable settings
