Zoeller® 267-0006 2498054

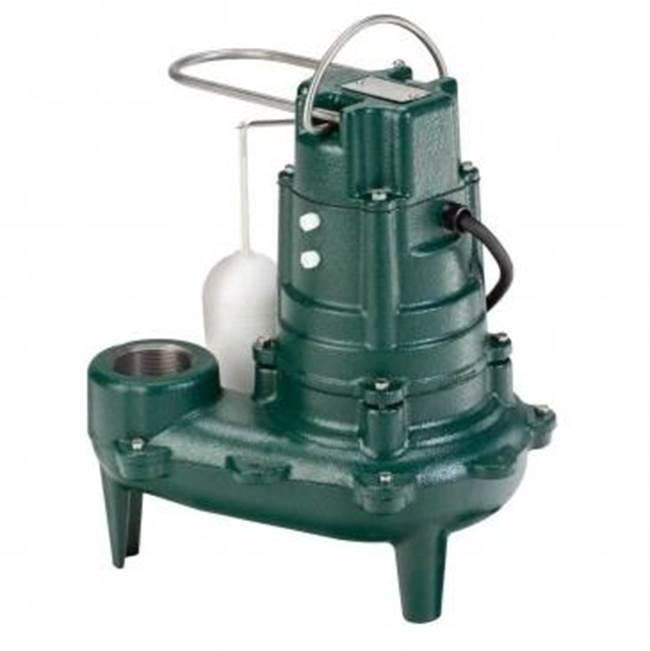

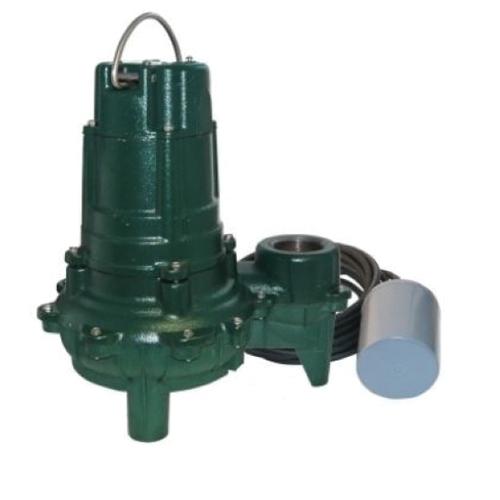

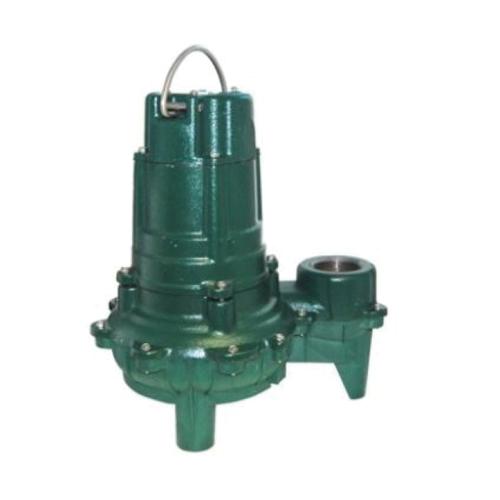

Zoeller® M267 267-0006 Sewage Pump, 115 to 460 V, 1.5 to 9.4 A, 60 Hz, 1/2 hp, 128 gpm, Cast Iron

  • Manufacturer: Zoeller Company
  • Brand Name: Zoeller®
  • Part Number: 2498054
  • MPN: 267-0006
  • UPC: 053514017651
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

Zoeller® Sewage Pump, Model: M267, 115 to 460 V, 1.5 to 9.4 A, 60 Hz Frequency, HP Rating: 1/2 hp, 1725 rpm Speed, 128 gpm Flow Rate, 1, 3 ph, 2 in NPT Discharge, 10 ft Cord Length, Maximum Feet of Head: 21.5 ft, Insulation Class: Class B, 130 deg F, Non-Clogging Vortex Impeller, Dimensions: 14-5/16 in H, Cast Iron, Powder-Coated Epoxy

Amperage Rating      :      1.5 to 9.4 A
Cord Length      :      10 ft
Dimensions      :      14-5/16 in H
Discharge Size      :      2 in NPT
Finish      :      Powder-Coated Epoxy
Flow Rate      :      128 gpm
Frequency Rating      :      60 Hz
HP Rating      :      1/2 hp
Impeller Material      :      Non-Clogging Vortex
Insulation Class      :      Class B
Material      :      Cast Iron
Maximum Feet of Head      :      21.5 ft
Model      :      M267
Phase      :      1, 3 ph
Speed Rating      :      1725 rpm
Temperature Rating      :      130 deg F
Voltage Rating      :      115 to 460 V
  • Float-operated, 2-pole mechanical switch
  • Durable cast construction, ASTM Class 25 cast iron switch case and pump housing
  • Cast iron base on model 267
  • Non-clogging vortex impeller design, engineered plastic impeller with metal inserts (1 ph), model 267 available with cast iron impeller (standard on 3 ph models)
  • Not affected by materials normally found in drainage and sewage pumps
  • Stainless steel screws, bolts, handle, guard and arm and seal assembly
  • Neoprene square ring and gasket
  • Oil-filled, hermetically-sealed motor
  • Oil lubricated bearings
  • Carbon and ceramic shaft seal
  • Passes 2 in spherical solids
  • 2 in female discharge
  • On point: 12 in (automatic units)
  • Off point: 4 in (automatic units)
  • Corrosion-resistant, powder-coated epoxy finish
  • Completely submersible
  • Watertight and dust-tight
  • Automatic and non-automatic models available
  • Automatic reset thermal overload protection (1 ph only)
