Zoeller® 244F4-0001 2489643

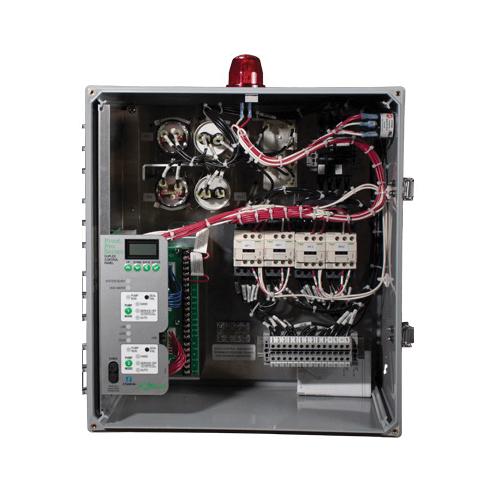

Zoeller® Pivot Pro+ Series 244F4-0001 Duplex Control Panel

  • Manufacturer: Zoeller Company
  • Brand Name: Zoeller®
  • Part Number: 2489643
  • MPN: 244F4-0001
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

The duplex pivot Pro+ Series control panel for 200/230/460 V, 3 ph lift station pump applications ranging from 9 to 14 A. The panel comes with an LCD interface, auto reversing and built-in audible and visual alarms. Now you can get Zoeller® quality in the whole system by pairing two pumps with our highly featured pivot Pro+ control panel. The panel enclosure is NEMA 4X so it is able to be used outdoors and will withstand a variety of weather conditions.

Zoeller® Duplex Control Panel, Pivot Pro+ Series, 200/230/460 V, Additional Information: 3-Phase Phase, 9 to 14 A Full Load, 9 to 14 A Breaker Amperage Rating

Additional Information      :      3-Phase Phase, 9 to 14 A Full Load, 9 to 14 A Breaker Amperage Rating
Series      :      Pivot Pro+ Series
Voltage Rating      :      200/230/460 V
  • Red/amber/green LEDs for float switch indicators, pump run, high water, system ready and HOA functions
  • Ample room within the panel around the terminal block for field wiring
  • Test toggle will check all LEDs, globe and horn
  • Elapsed time and cycle counts via USB port and LCD
  • Adjustable settings
