Zoeller® 10-0034 19982

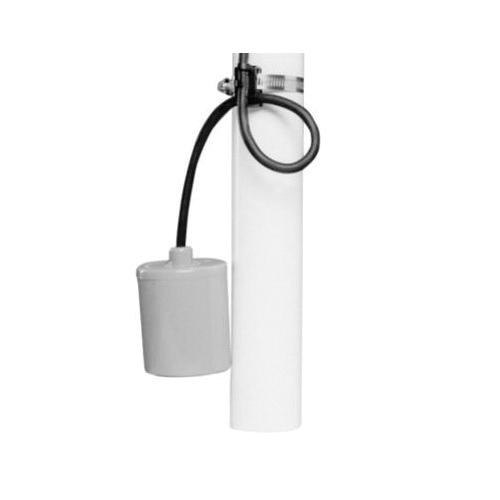

Zoeller® Switch Mate Series 10-0034 Piggyback Variable Level Float Switch, 13 A, 115 VAC

  • Manufacturer: Zoeller Company
  • Brand Name: Zoeller®
  • Part Number: 19982
  • MPN: 10-0034
  • UPC: 053514011888
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

Zoeller® Piggyback Variable Level Float Switch, Series: Switch Mate, 13 A, 115 VAC, 1 Phase, 1/2 hp, Open Enclosure, 140 deg F

Amperage Rating      :      13 A
Enclosure Type      :      Open
HP Rating      :      1/2 hp
Phase      :      1
Series      :      Switch Mate
Temperature Rating      :      140 deg F
Voltage Rating      :      115 VAC
  • Simple installation
  • Adjustable/variable level
  • Standard 15 ft and 20 ft SJOW CPE cord with molded plug
  • Float constructed of durable PVC/polypropylene encasing variable level switch
  • Standard normally open (NO) 'pumps down'
  • Optional normally closed available (NC) 'pumps up', consult factory
  • Float is omnidirectional
  • Variable level float switch, for use in 18 in Dia minimum basins
  • No molded plug, can be used as a control switch to operate an external magnetic or combination starter on three phase pumps

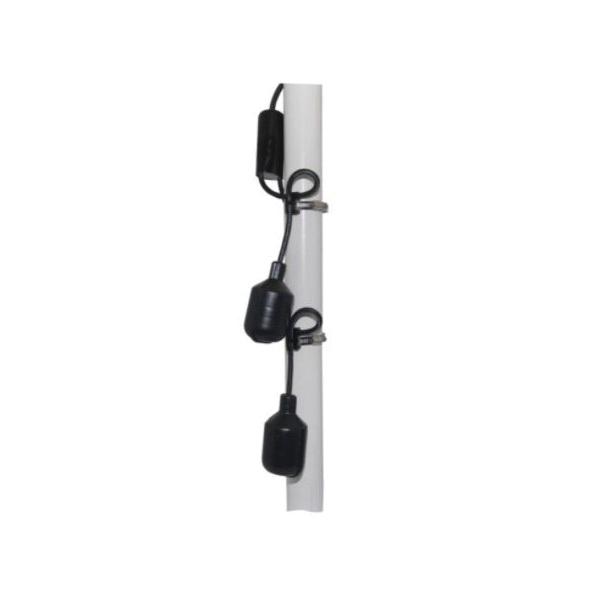

  • Vertical piggyback float switch, ideal for narrow diameter basins 6-1/2 in maximum cycle range
  • Use recommendation chart for switch selection
