WATTS® T388002 2494668
  1. pin-int

WATTS® T388002 2494668

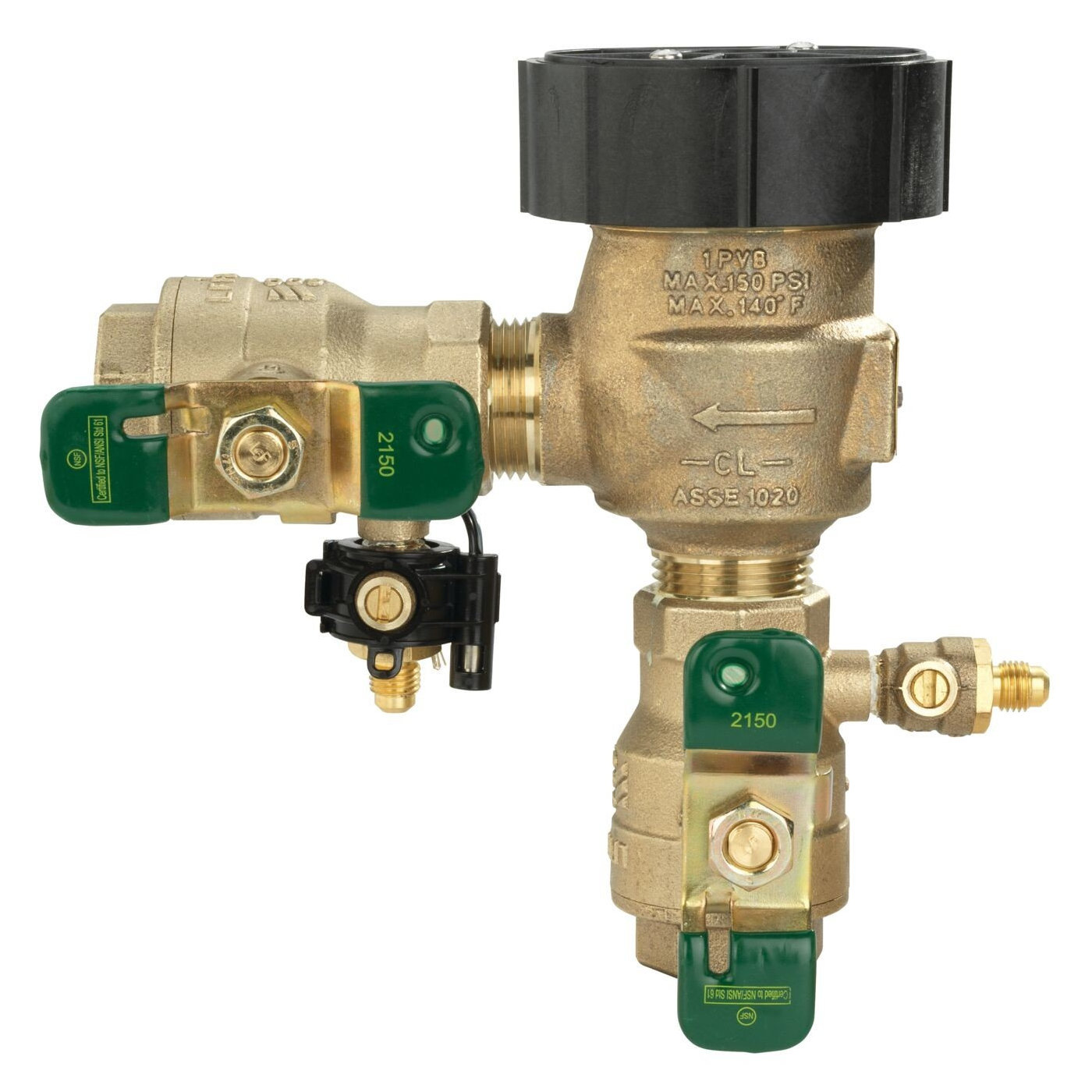

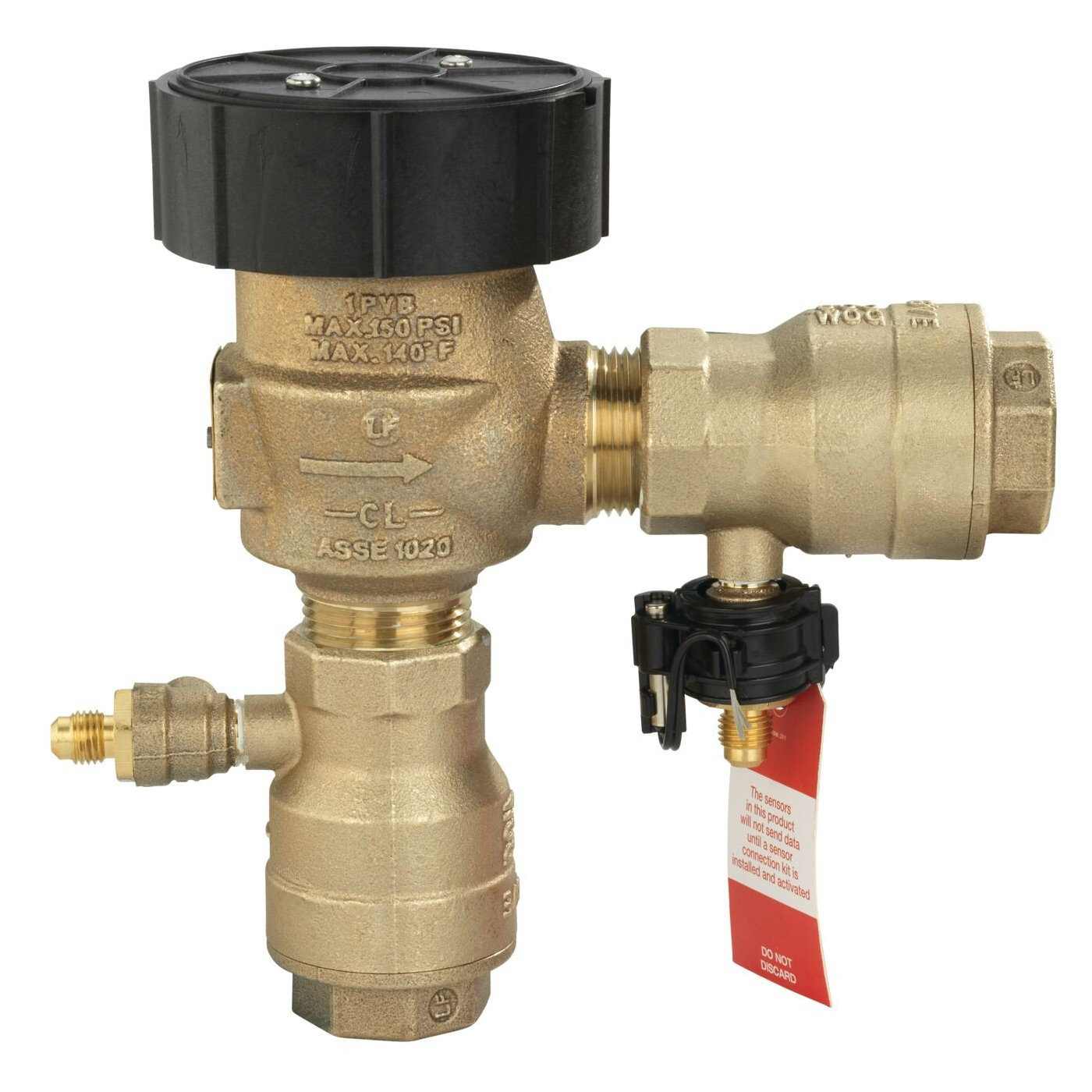

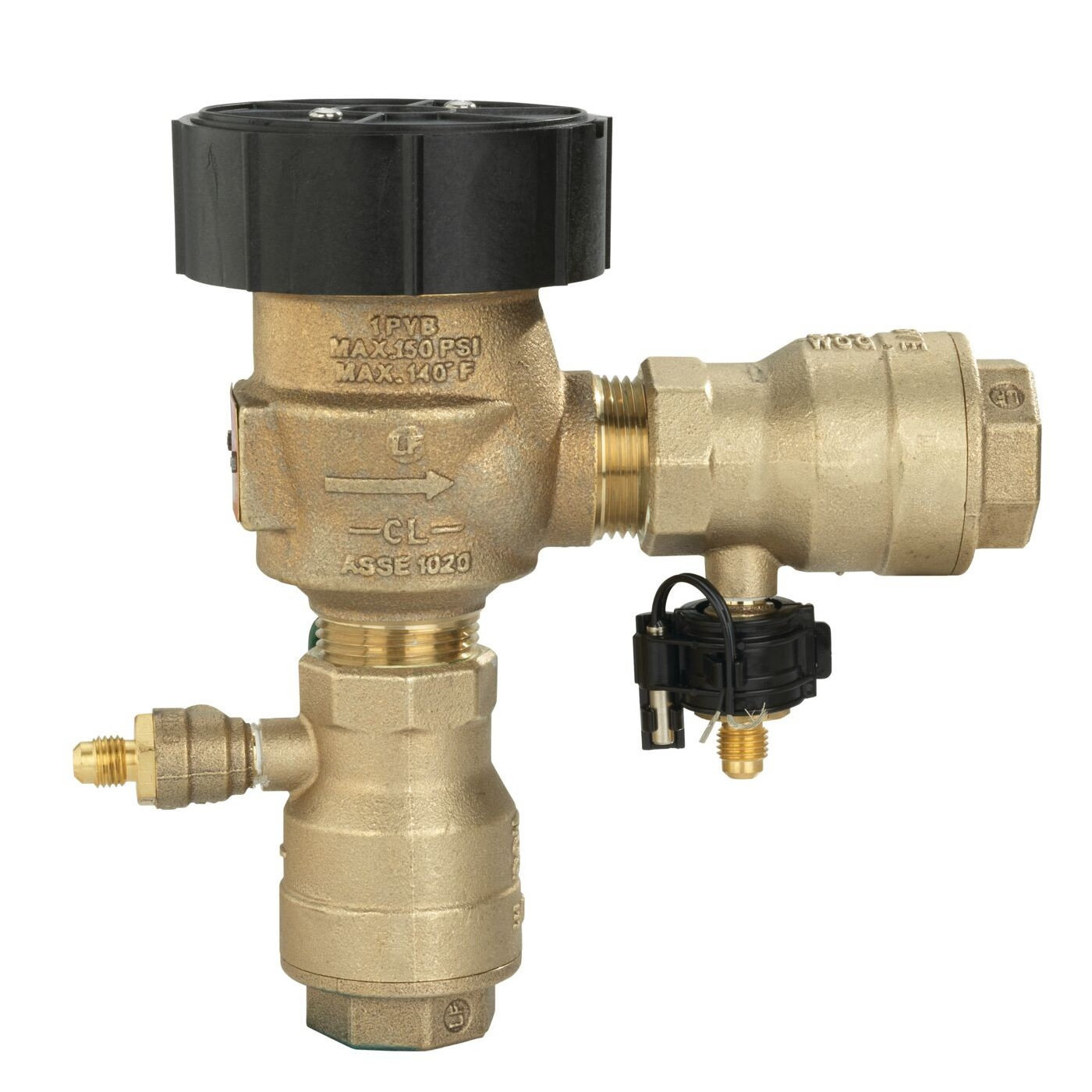

WATTS® T388002 Anti-Siphon Pressure Vacuum Breaker, 1 x 1 in Nominal, FNPT x FNPT, 150 psi, Bronze Body

  • Manufacturer: Watts Water Technologies
  • Brand Name: WATTS®
  • Part Number: 2494668
  • MPN: T388002
  • UPC: 098268545913
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

This 1 inch anti-siphon pressure vacuum breaker backflow preventer helps prevent the reverse flow of polluted water from entering into the potable water supply due to backsiphonage. It consists of bronze body construction, silicone rubber check valve disc, plastic check valve seat, stainless steel springs, a bonnet with silicone rubber O-ring seal, a lightweight plastic disc float, tee handle shutoffs, and test cocks for winterization draining. It is ideal in health hazard continuous pressure applications such as irrigation systems and industrial process water systems where the water enters the equipment at or below its flood rim. The maximum pressure is 150 psi (10.3 bar) and the minimum pressure is 15 psi (55kPa). The pressure vacuum breaker includes a freeze sensor for use with SentryPlus Alert® technology to signal facility personnel when temperature nears and reaches the freezing point. Freeze alerts feature available with add-on connection kit for Wi-Fi networks, building management systems (BMS), irrigation management systems (IMS).

WATTS® Anti-Siphon Pressure Vacuum Breaker, 800M4QT Series, 1 x 1 in Nominal, Connection Type: FNPT x FNPT, 150 psi, Contains Lead, Bronze Body, Stainless Steel Spring Trim, Celcon® Bonnet, Silicone Rubber Vent Disc, Polypropylene Disc Holder Float, Silicone Rubber Valve Disc, Noryl Plastic Valve Seat Softgoods, 33 to 140 deg F, 7-1/2 in H x 7-1/2 in W, Additional Information: Lever Handle

Additional Information      :      Lever Handle
Body Material      :      Bronze
Connection Type      :      FNPT x FNPT
Dimensions      :      7-1/2 in H x 7-1/2 in W
Lead-Free/Contains Lead      :      Contains Lead
Nominal Size      :      1 x 1 in
Pressure Rating      :      150 psi
Series      :      800M4QT Series
Softgoods Material      :      Celcon® Bonnet, Silicone Rubber Vent Disc, Polypropylene Disc Holder Float, Silicone Rubber Valve Disc, Noryl Plastic Valve Seat
Temperature Rating      :      33 to 140 deg F
Trim Material      :      Stainless Steel Spring
  • Includes a freeze sensor for use with SentryPlus Alert technology to signal facility personnel when temperature nears and reaches the freezing point
  • Available freeze sensor connection kit to activate a monitoring system that trigger alerts for low and freezing temperatures
  • Bronze body for durability
  • Acetal bonnet acts as a freeze plug to prevent costly body damage
  • Freeze alerts feature available with add-on connection kit for Wi-Fi networks, building management systems (BMS), and irrigation management systems (IMS)
  • Female NPT inlet and outlet with quarter turn shutoffs
  • Easy internal access
  • Test cocks are conveniently positioned for easy testing and winterization
