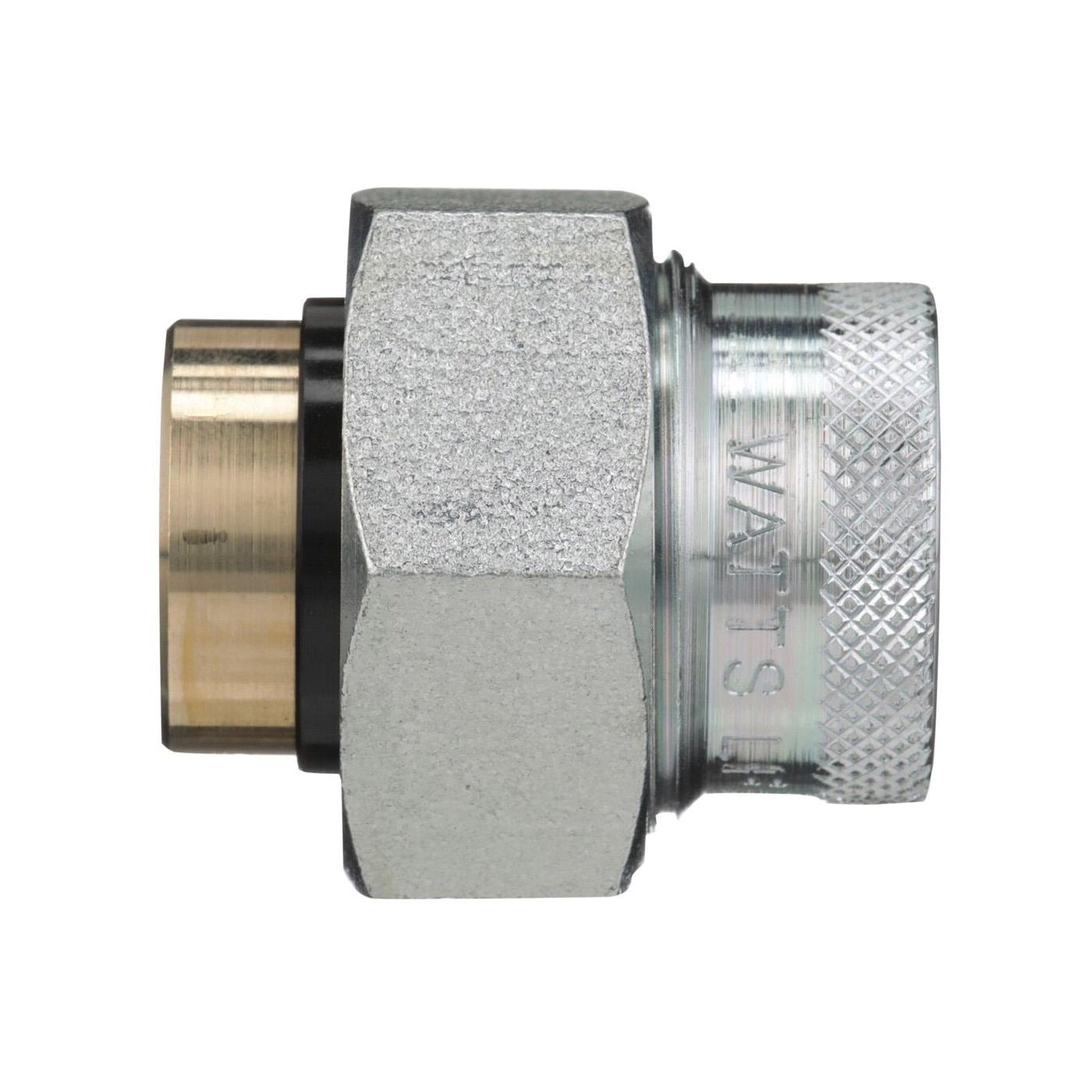

WATTS® LF3001A 2412478

Series LF3001A lead-free dielectric unions are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and features a female iron pipe thread to solder connection. It consists of a union nut, two tailpieces and a gasket that separates the tailpieces to prevent an electric current from occurring. Series LF3001A is ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas and water piping.

WATTS® Dielectric Union, LF3001A Series, Union Fitting, 3/4 in Connection Size 1, Connection Type 1: FIP, 3/4 in Connection Size 2, Connection Type 2: Socket, FIP|Socket Connection, Brass/Steel, Material Construction: Brass/Steel, 1-5/8 in Hex, 250 psi, 2-1/8 in L x 1-5/8 in W, 180 deg F, Additional Information: Steel Adapter/Inlet, Polysulfone Insulator

• Meets federal specifications for tensile strength and thread end connections
• Individually factory certified to withstand a minimum of 600 V on a dry line with no flashover
• Buna-N gasket
• Designed and manufactured to the highest quality standards
• FIP thread to solder connections
