WATTS® F065372 2484762
  1. pin-int

WATTS® F065372 2484762

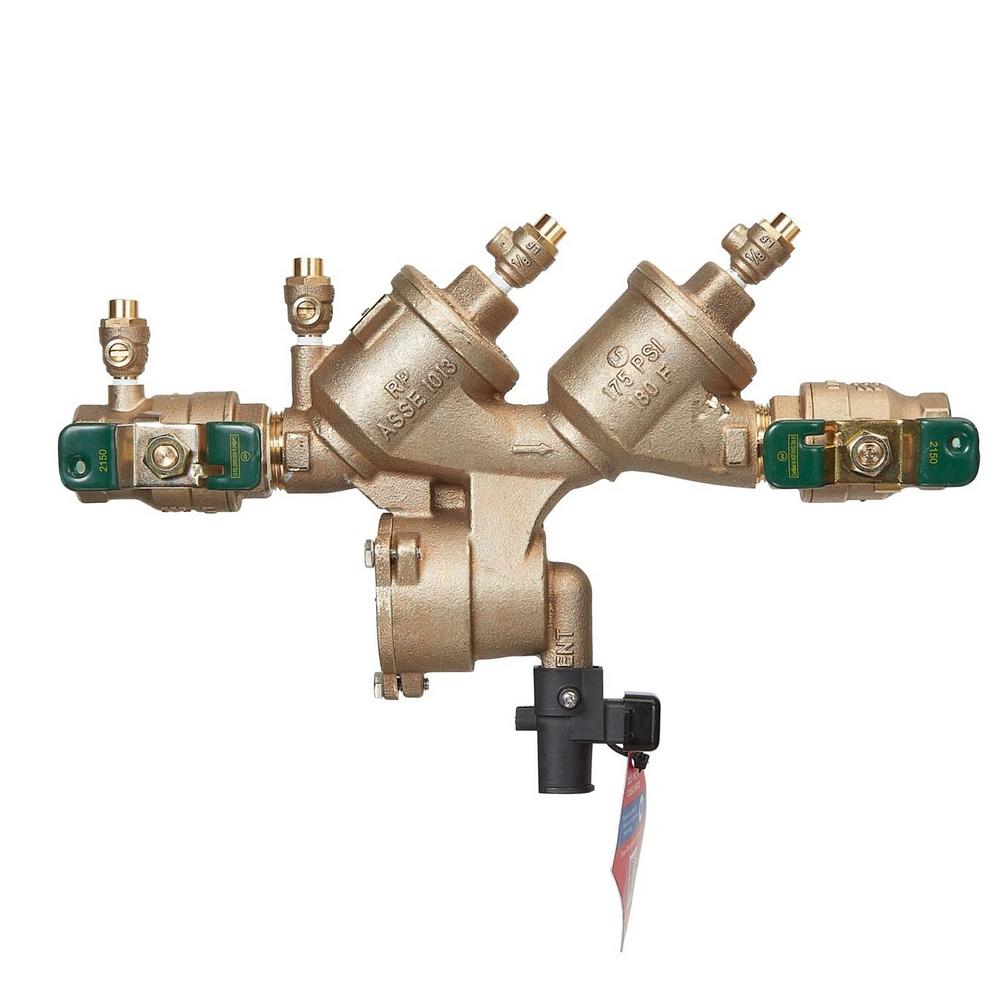

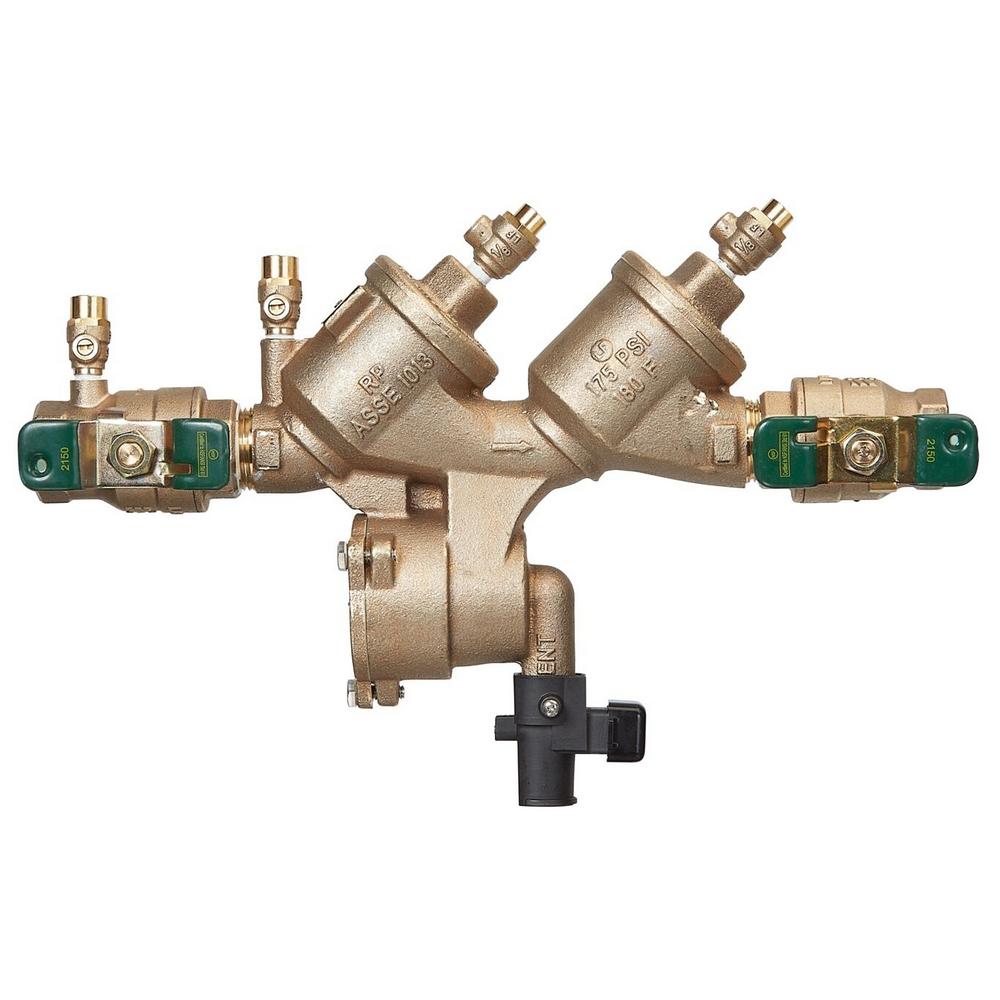

WATTS® LF919 Series F065372 Reduced Pressure Zone Backflow Preventer Assembly, 3/4 in, FNPT, Lead-Free

  • Manufacturer: Watts Water Technologies
  • Brand Name: WATTS®
  • Part Number: 2484762
  • MPN: F065372
  • UPC: 098268541236
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

This 3/4 in lead-free reduced pressure zone backflow preventer assembly includes a flood sensor with SentryPlus Alert® technology to detect water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify facility personnel about potential flooding. Add-on sensor connection kits are available for BMS and cellular communications. This assembly is designed to prevent the flow of polluted water from entering the potable water supply due to backsiphonage and or backpressure. Ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and from other contaminants found at the service line entrance.

WATTS® Reduced Pressure Zone Backflow Preventer Assembly, LF919 Series, 3/4 in Nominal, FNPT Connection, 175 psi Pressure, Copper Silicone Alloy Body, Lead-Free/Contains Lead: Lead-Free, Bronze, 33 to 180 deg F, Dimensions: 15-1/2 in L

Body Material      :      Copper Silicone Alloy
Connection Type      :      FNPT
Dimensions      :      15-1/2 in L
Finish      :      Bronze
Lead-Free/Contains Lead      :      Lead-Free
Nominal Size      :      3/4 in
Pressure Rating      :      175 psi
Series      :      LF919 Series
Temperature Rating      :      33 to 180 deg F
  • Flood sensor with SentryPlus Alert technology to detect water discharges from the relief valve
  • Quarter-turn ball valve shut-offs with tee handles, two poppet style check valves and replaceable check seats
  • Compact, space saving design with separate access covers for the check valves and relief valve
  • Top-mounted, screwdriver-slotted test cocks for easy testing and use in reduced clearance installation
  • EZ twist relief valve cover with quarter-turn locking joint to capture the spring load during repair to facilitate disassembly
  • Bottom-mounted relief valve for reduced space requirements
  • Innovative check valve plastic cover bushing provides trouble-free guiding of the check valve poppet
