WATTS® 88004522 2501491
  1. pin-int

WATTS® 88004522 2501491

WATTS® SS009 Series 88004522 Backflow Preventer Assembly, 3/4 in, FNPT x FNPT, Lead-Free

  • Manufacturer: Watts Water Technologies
  • Brand Name: WATTS®
  • Part Number: 2501491
  • MPN: 88004522
  • UPC: 098268355338
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

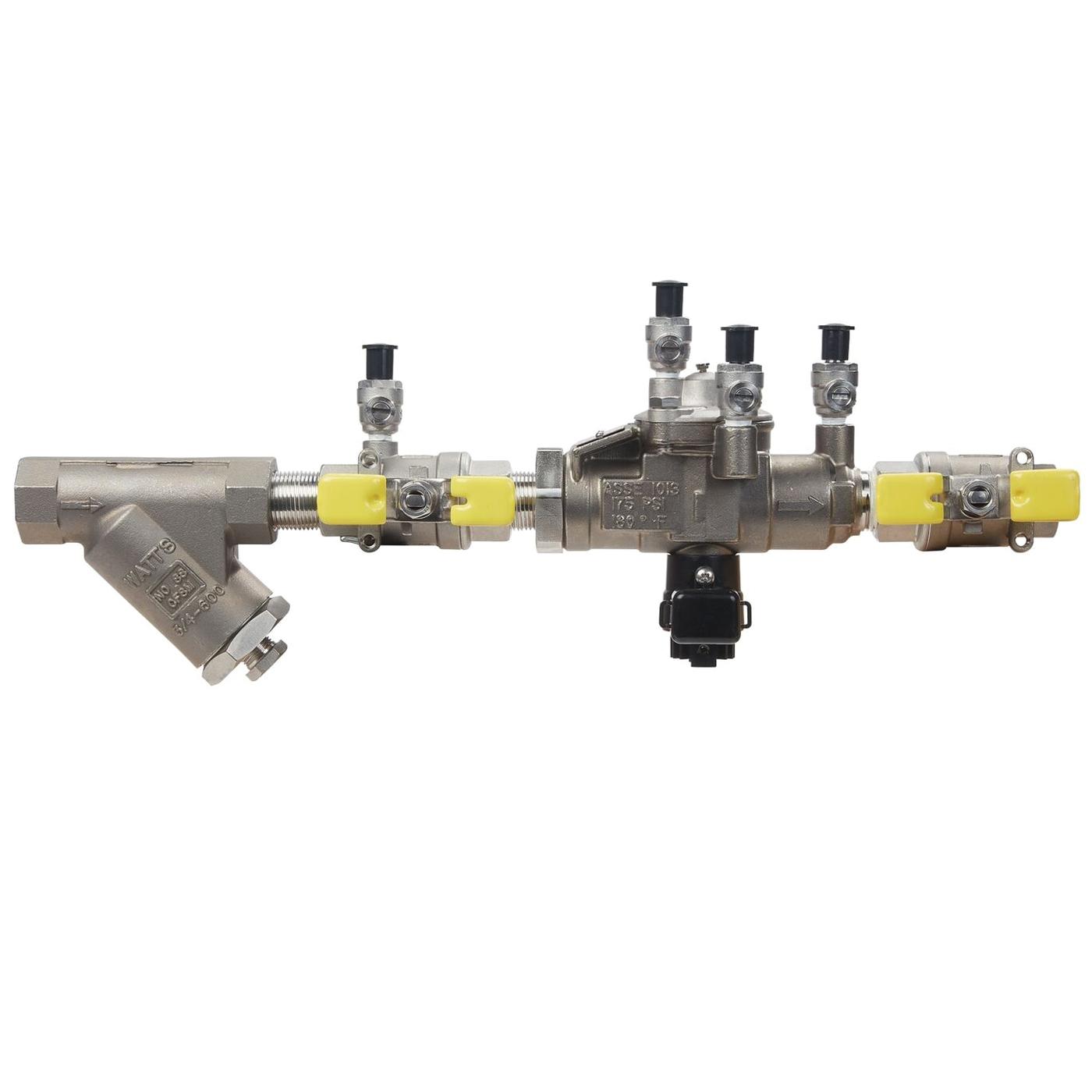

This 3/4 inch stainless steel reduced pressure zone backflow preventer assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to back siphonage and or backpressure. It is ideal for typical applications that are found in industrial plants, medical diagnostic equipment, reverse osmosis systems, carbonated beverage machines, brewing distillers, paper and pulp industries, chemical plants and aggressive atmospheres. This assembly consists of a 316 stainless steel body, bronze strainer, NPT end connections, quarter turn ball valve shutoffs with tee handles, top mounted vandal resistant EZ-test cocks with covers, two in-line independent check valves, captured springs, replaceable check seats, corrosion resistant internal parts, and a hydraulically operated differential pressure internal relief valve for reduced space requirements. This backflow assembly includes flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify the user of potential flooding. Add-on sensor connection kits are available for both BMS and cellular communications.

WATTS® Backflow Preventer Assembly, SS009 Series, 3/4 in Nominal, FNPT x FNPT Connection, Full Port, 175 psi Pressure, Media: Water, Quarter-Turn Ball Valve Operator, 316 Stainless Steel Body, Lead-Free/Contains Lead: Lead-Free, 180 deg F

Body Material      :      316 Stainless Steel
Connection Type      :      FNPT x FNPT
Lead-Free/Contains Lead      :      Lead-Free
Media      :      Water
Nominal Size      :      3/4 in
Operator Type      :      Quarter-Turn Ball Valve
Port Type      :      Full
Pressure Rating      :      175 psi
Series      :      SS009 Series
Temperature Rating      :      180 deg F
  • Features flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
  • Alert features available with add-on sensor connection kit
  • Investment cast 316 stainless steel assembly for corrosion resistance furnished with a strainer
  • NPT inlet and outlet connections
  • Quarter turn full port resilient seated ball valve shutoffs
  • Top mounted vandal resistant EZ-TC test cocks provide easy access for testing
  • Internal relief valve for reduced installation clearances
  • Replaceable seats for an economical repair
  • Bolted on, top entry single access cover for ease of maintenance
