WATTS® 88004087 2483126
  1. pin-int

WATTS® 88004087 2483126

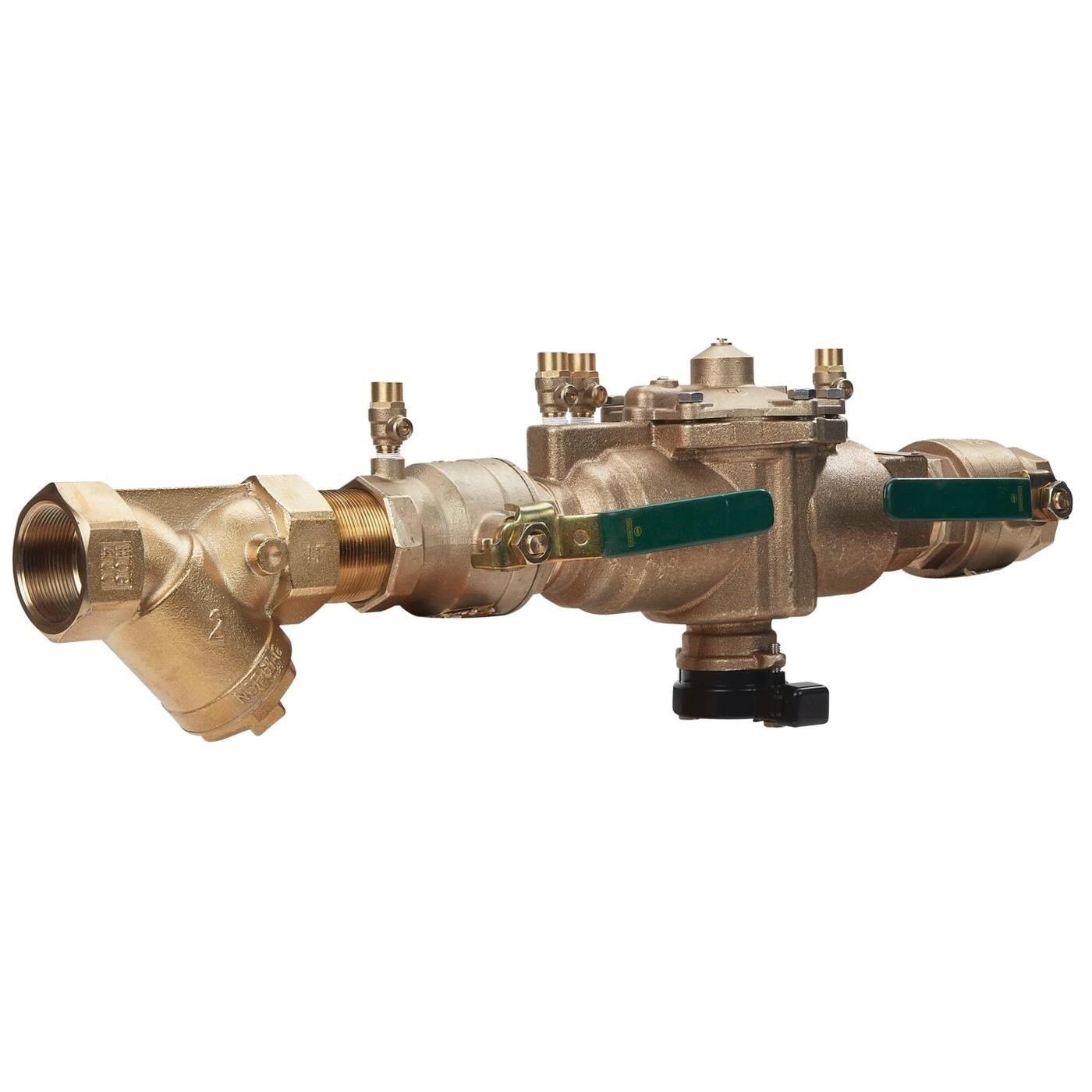

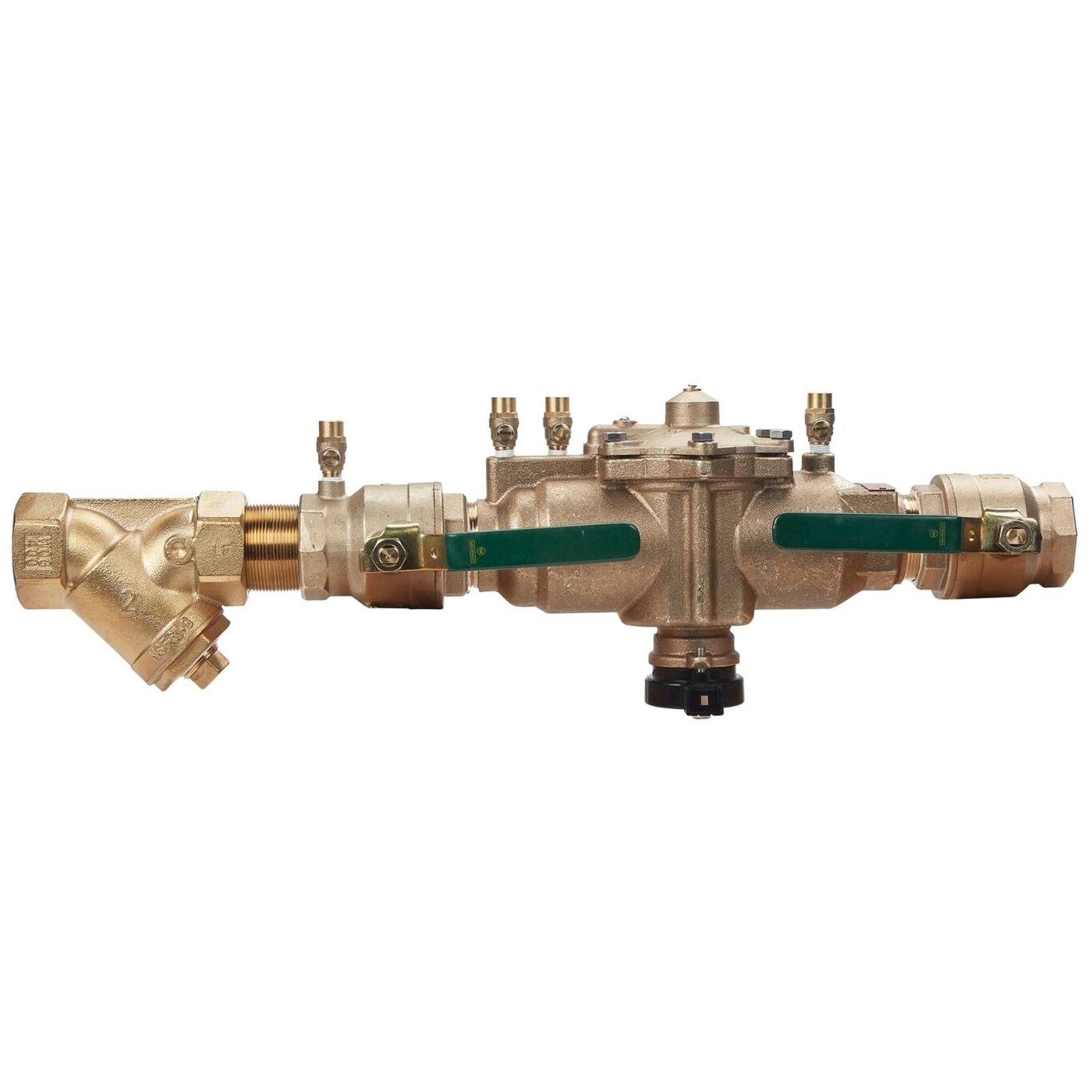

WATTS® LF009 Series 88004087 Backflow Preventer Assembly, 2 in, FNPT, Lead-Free

  • Manufacturer: Watts Water Technologies
  • Brand Name: WATTS®
  • Part Number: 2483126
  • MPN: 88004087
  • UPC: 098268348750
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

This 2 in lead-free copper silicon alloy reduced pressure zone backflow preventer assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to back siphonage and or back pressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of a lead-free body and strainer, NPT end connections, quarter-turn ball valve shut-offs with tee handles, top-mounted test cocks, two in-line independent check valves, captured springs and replaceable check seats with an internal relief valve for reduced space requirements. This backflow assembly includes flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify the user of potential flooding. Add-on sensor connection kits are available for both BMS and cellular communications.

WATTS® Backflow Preventer Assembly, LF009 Series, 2 in Nominal, FNPT Connection, Full Port, 175 psi Pressure, Media: Water, 4-1/2 in Top to Inlet Center, Quarter-Turn Ball Valve Operator, Copper Silicone Alloy Body, Lead-Free/Contains Lead: Lead-Free, Cast Copper Silicon Alloy, 33 to 180 deg F, Additional Information: Reduced Pressure Zone Assembly-Type, Inline Body Pattern

Additional Information      :      Reduced Pressure Zone Assembly-Type, Inline Body Pattern
Body Material      :      Copper Silicone Alloy
Connection Type      :      FNPT
Finish      :      Cast Copper Silicon Alloy
Lead-Free/Contains Lead      :      Lead-Free
Media      :      Water
Nominal Size      :      2 in
Operator Type      :      Quarter-Turn Ball Valve
Port Type      :      Full
Pressure Rating      :      175 psi
Series      :      LF009 Series
Temperature Rating      :      33 to 180 deg F
Top to Inlet Center      :      4-1/2 in
  • Features flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve
  • Alert features available with add-on sensor connection kit
  • Lead-free copper silicon alloy body
  • Furnished with a strainer
  • Quarter-turn full port resilient seated ball valve shut-offs
  • Single access cover and modular check construction for the ease of maintenance
  • Internal relief valve for reduced installation clearances
