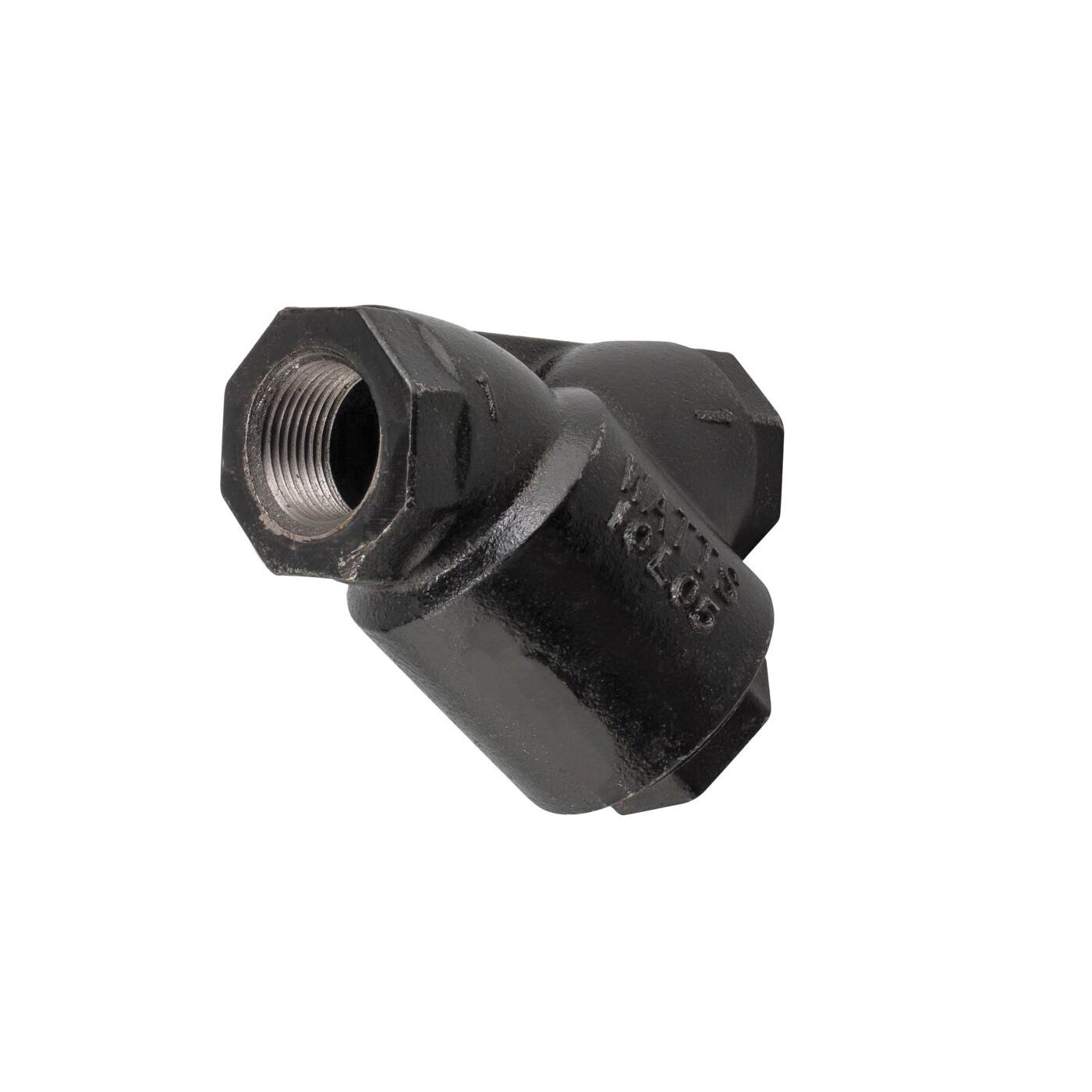

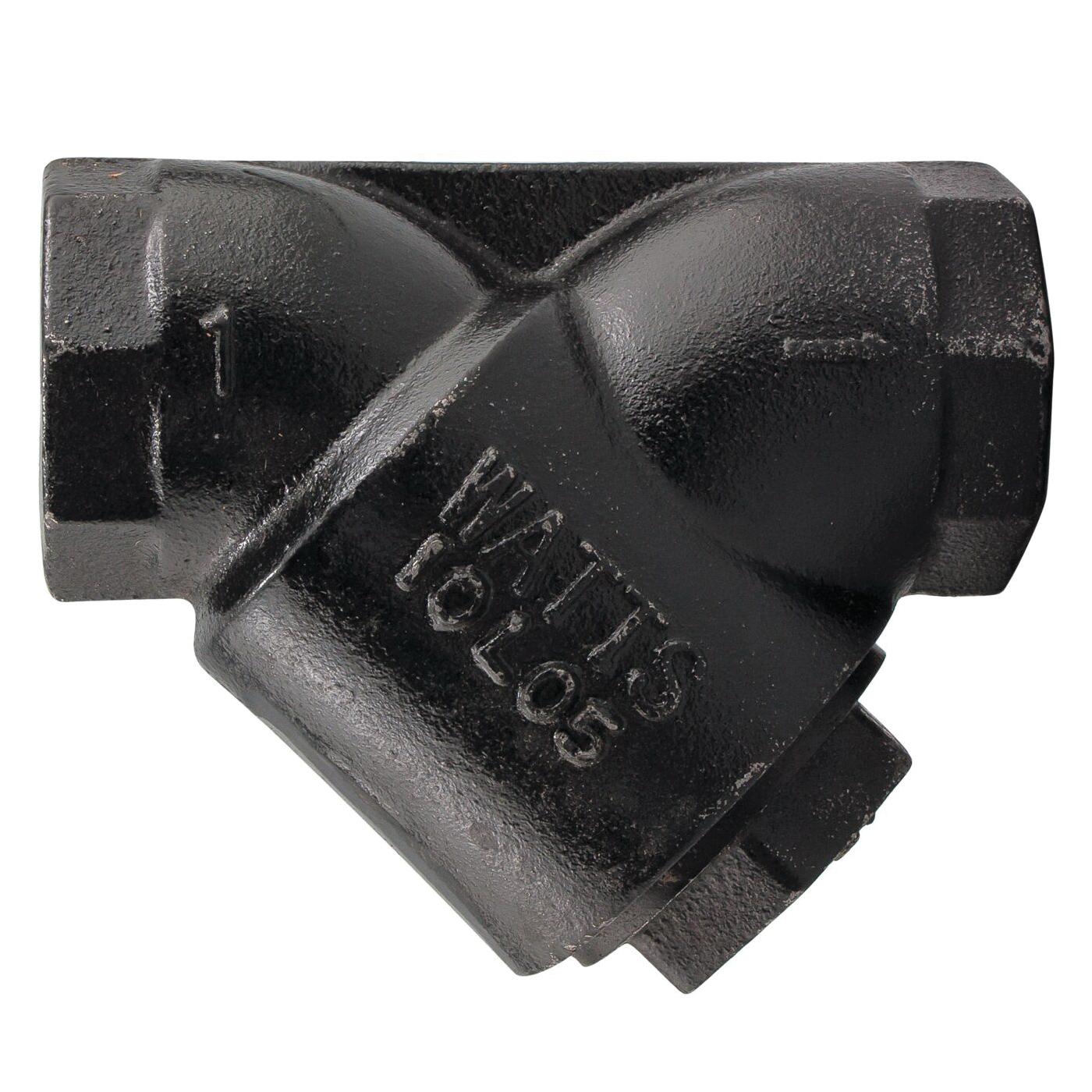

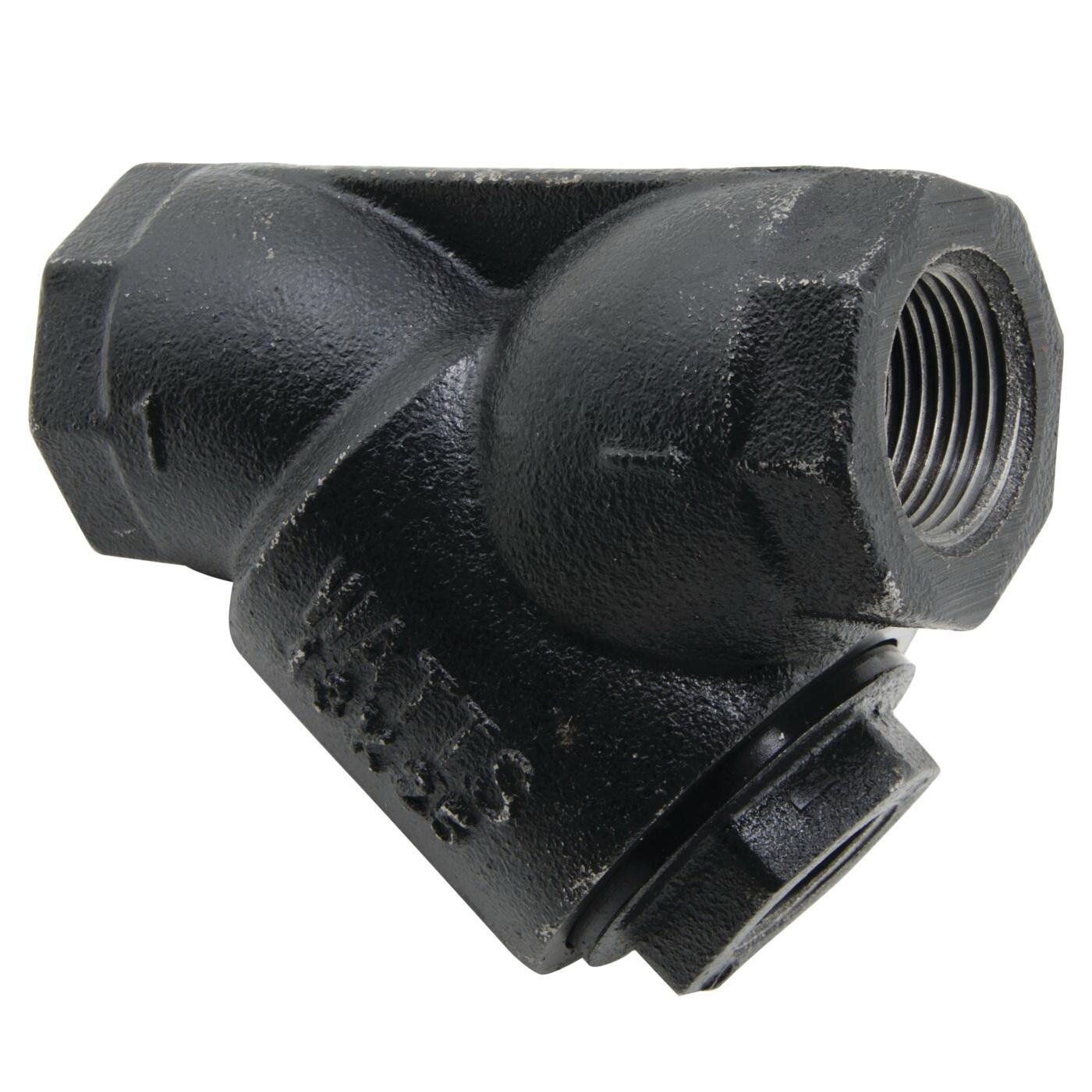

WATTS® 77S M1 Series 77S-M1-20 1 Wye Strainer, 1 in Nominal, NPT, #20 Mesh

  • Manufacturer: Watts Water Technologies
  • Brand Name: WATTS®
  • Part Number: 42865
  • MPN: 77S-M1-20 1
  • UPC: 098268643169
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

This cast iron wye pattern strainer, 1 in WATTS® model 77S, has an iron body with 20 mesh screen, threaded connections, stainless steel screen, threaded iron retainer cap with non-asbestos gasket and tapped blowdown connection. It is designed to protect system components from dirt, rust and other damaging debris in the piping system. It is used in steam and liquid applications. It is furnished with a machined seat that allows the screen to be self-aligning to assure a perfect fit. Maximum pressure (non-shock) 400 psi (27.6 bar) at 150 deg F (66 deg C) WOG, 250 psi (17.2 bar) at 406 deg F (208 deg C) WSP.

WATTS® Wye Strainer, 77S M1 Series, 1 in Nominal, NPT Connection, #20 Mesh, Iron Housing, 4-1/2 in L, 250 to 400 psi, 150 to 406 deg F, Additional Information: PTFE Gasket, Stainless Steel Screen

Additional Information      :      PTFE Gasket, Stainless Steel Screen
Connection Type      :      NPT
Dimensions      :      4-1/2 in L
Housing Material      :      Iron
Mesh Size      :      #20
Nominal Size      :      1 in
Pressure Rating      :      250 to 400 psi
Series      :      77S M1 Series
Temperature Rating      :      150 to 406 deg F
  • Threaded end connections
  • Tapped retainer cap
