WATTS® 66100 42558

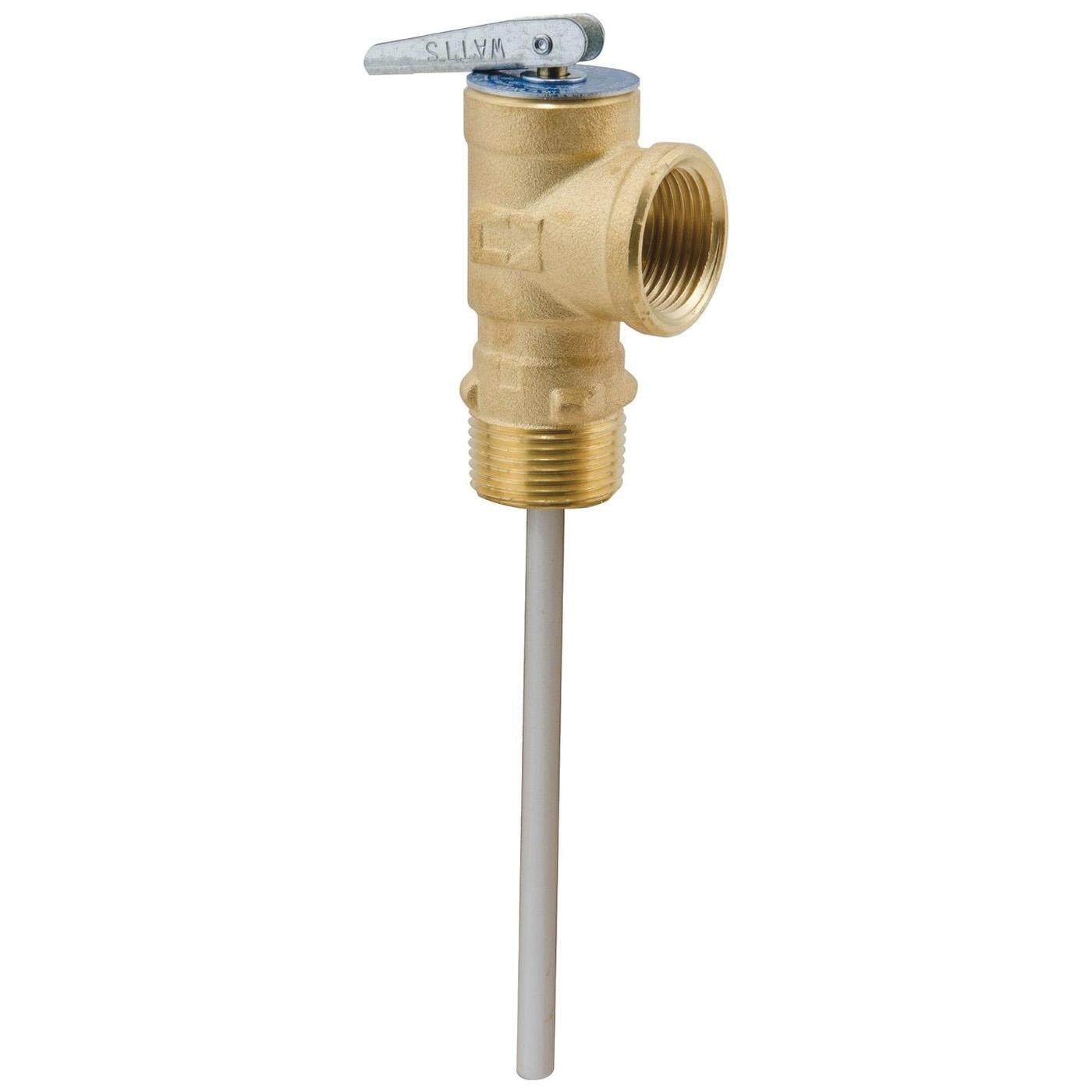

WATTS® 66100 Temperature and Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT, 150 psi, 210 deg F, Brass Body

  • Manufacturer: Watts Water Technologies
  • Brand Name: WATTS®
  • Part Number: 42558
  • MPN: 66100
  • UPC: 098268000016
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

Watts Regulator series 100XL temperature and pressure relief valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105000 Btu/hr. They feature a bronze body with MNPT inlet and FNPT outlet connections, unique thermostat with special thermo-bonded coating, and a test lever.

WATTS® Temperature and Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT Connection, 150 psi, Lever Actuator, Brass Body, 210 deg F

Actuator Type      :      Lever
Body Material      :      Brass
Connection Type      :      MNPT x FNPT
Nominal Size      :      3/4 in
Pressure Rating      :      150 psi
Temperature Rating      :      210 deg F
  • Features a unique thermostat with special thermo-bonded coating
  • Stainless steel spring
  • Thermostat is accurate and proven and exclusively designed and manufactured by Watts
