WATTS® 6551631 2492568
  1. pin-int

WATTS® 6551631 2492568

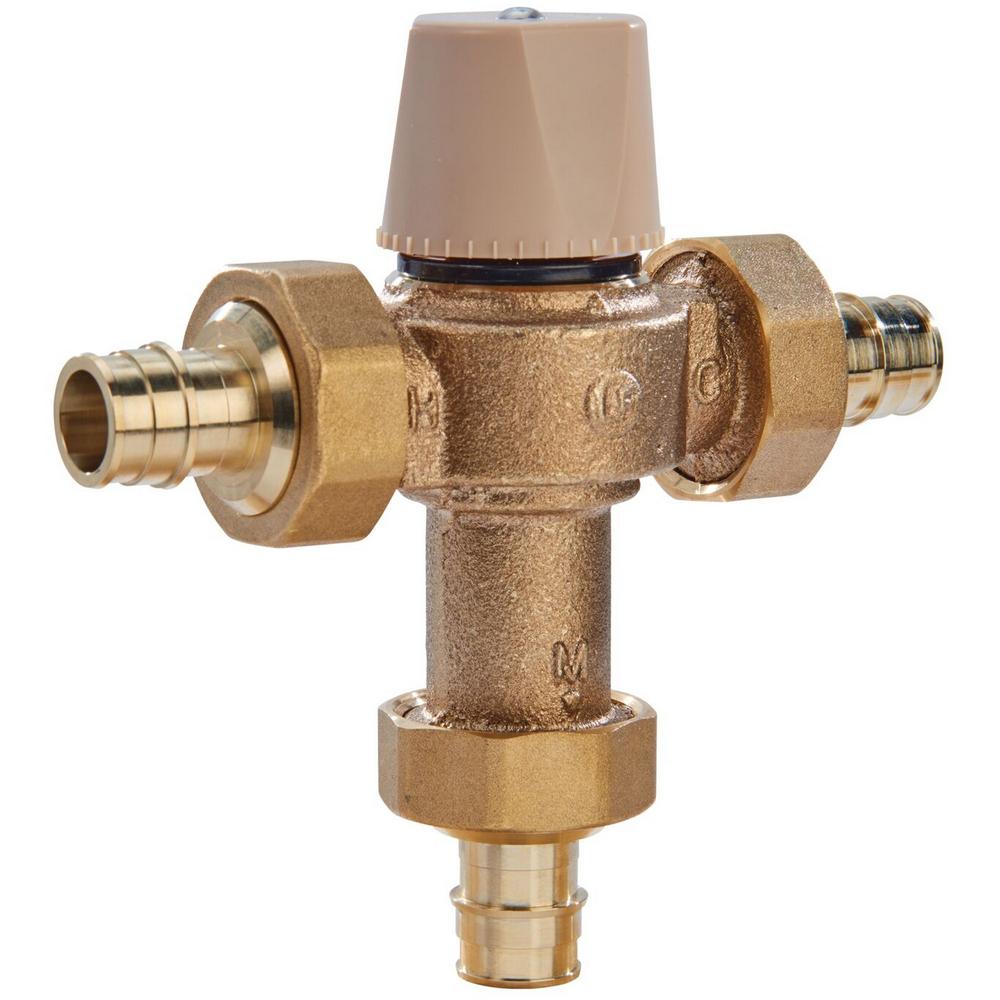

WATTS® LFMMV Series 6551631 Thermostatic Mixing Valve, 1/2 in Nominal, PEX Cold Expansion, 0.5 to 20 gpm, 150 psi

  • Manufacturer: Watts Water Technologies
  • Brand Name: WATTS®
  • Part Number: 2492568
  • MPN: 6551631
  • UPC: 098268338867
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

This 1/2 in lead-free thermostatic mixing valve is designed for residential, commercial or institutional environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold water supply to the mixed outlet. It consists of a lead-free brass body, cold expansion fitting (CEF/PEX F1960) end connections for PEX-a tubing, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting.

WATTS® Thermostatic Mixing Valve, LFMMV Series, 1/2 in Nominal, PEX Cold Expansion Connection, 150 psi, 0.5 to 20 gpm Flow Rate, Water Media, Copper Silicone Alloy Body, Stainless Steel Disc, Stainless Steel Trim, Buna-N/EPDM Packing, Copper/Polysulfone Softgoods, 120 to 180 deg F, 5-1/2 in L x 5-11/16 in H

Body Material      :      Copper Silicone Alloy
Connection Type      :      PEX Cold Expansion
Dimensions      :      5-1/2 in L x 5-11/16 in H
Disc Material      :      Stainless Steel
Flow Rate      :      0.5 to 20 gpm
Media      :      Water
Nominal Size      :      1/2 in
Packing Material      :      Buna-N/EPDM
Pressure Rating      :      150 psi
Series      :      LFMMV Series
Softgoods Material      :      Copper/Polysulfone
Temperature Rating      :      120 to 180 deg F
Trim Material      :      Stainless Steel
  • Thermal actuation technology for precise temperature control
  • Locking mechanism secures temperature setting
