WATTS® 100XL-4-175 2413300
  1. pin-int

WATTS® 100XL-4-175 2413300

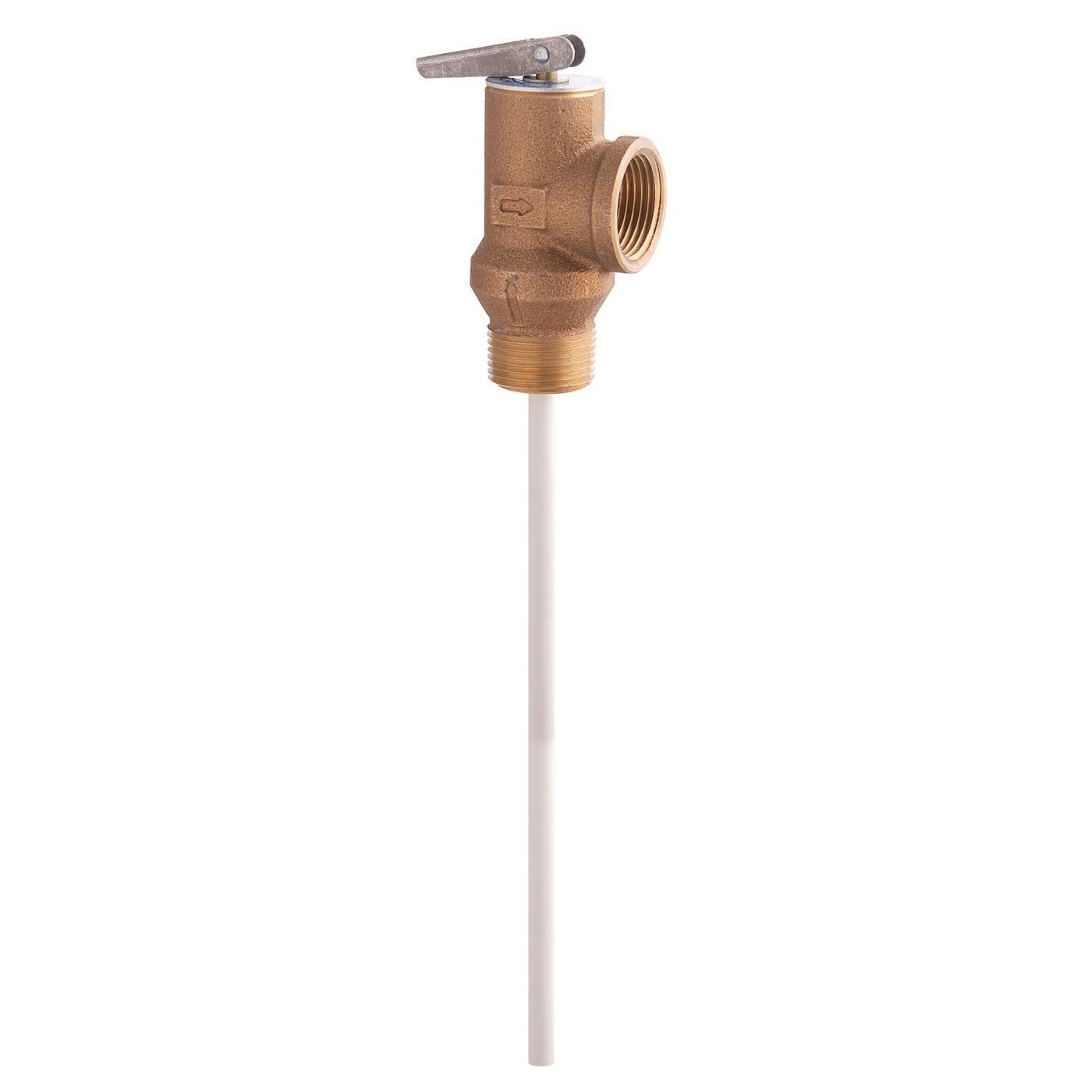

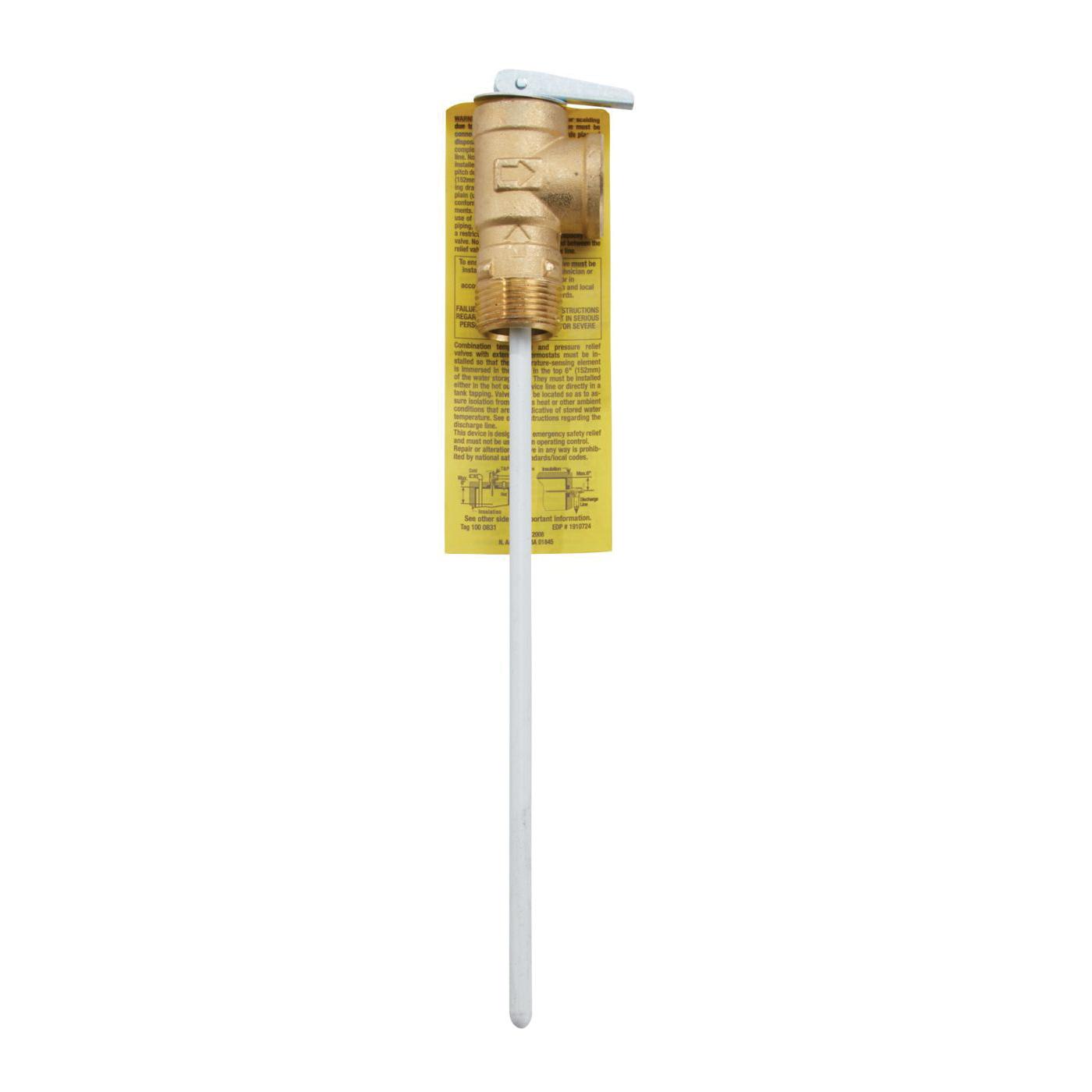

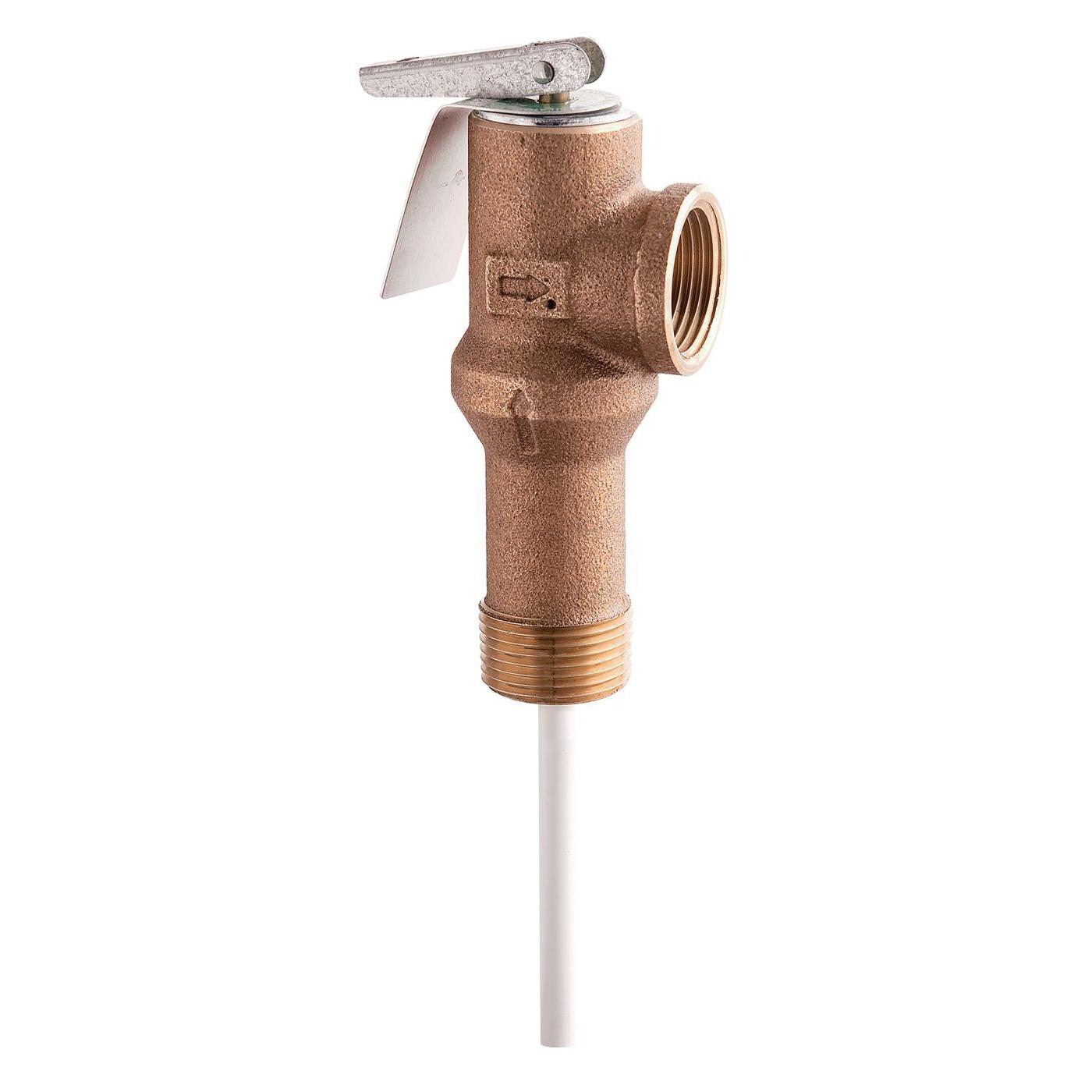

WATTS® 100XL-4-175 Temperature and Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT, 175 psi, 210 deg F, Brass Body

  • Manufacturer: Watts Water Technologies
  • Brand Name: WATTS®
  • Part Number: 2413300
  • MPN: 100XL-4-175
  • UPC: 098268583175
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

Watts Regulators series LF100XL temperature and pressure relief valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105000 Btu/hr. They feature a Lead Free copper alloy body with MNPT and FNPT outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. The combined 2 in 1 temperature and pressure relief valve provides the least expensive and proven means for protection against both excessive temperature and pressure emergency conditions.

WATTS® Temperature and Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT Connection, 175 psi Pressure, Lever Handle Actuator, Brass Body, 210 deg F, Dimensions: 3-11/64 in H x 1-5/32 in W

Actuator Type      :      Lever Handle
Body Material      :      Brass
Connection Type      :      MNPT x FNPT
Dimensions      :      3-11/64 in H x 1-5/32 in W
Nominal Size      :      3/4 in
Pressure Rating      :      175 psi
Temperature Rating      :      210 deg F
  • Unique thermostat with special thermo-bonded coating
  • Stainless steel spring
  • Thermostat is accurate and proven and exclusively designed and manufactured by Watts
  • 4 in L thermostat
  • 105000 Btu/hr nominal capacity
