WATTS® 0825201 241
  1. pin-int

WATTS® 0825201 241

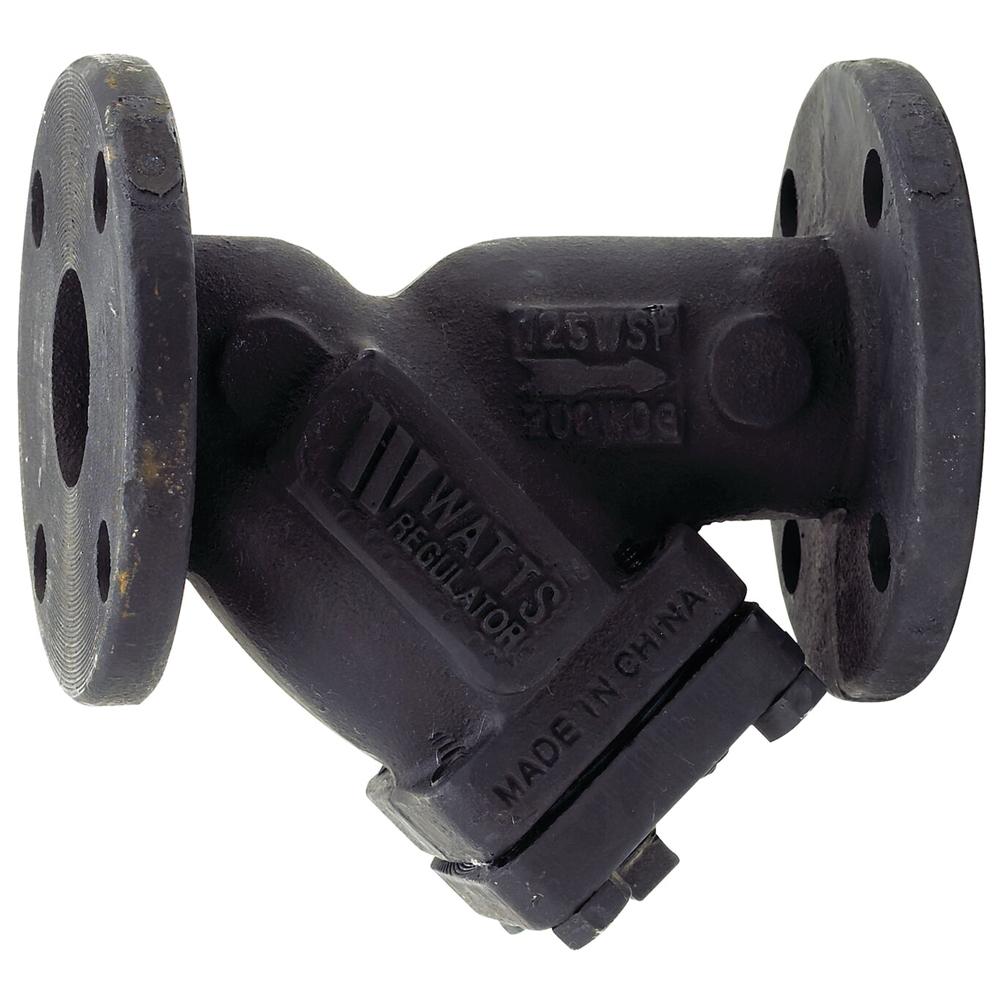

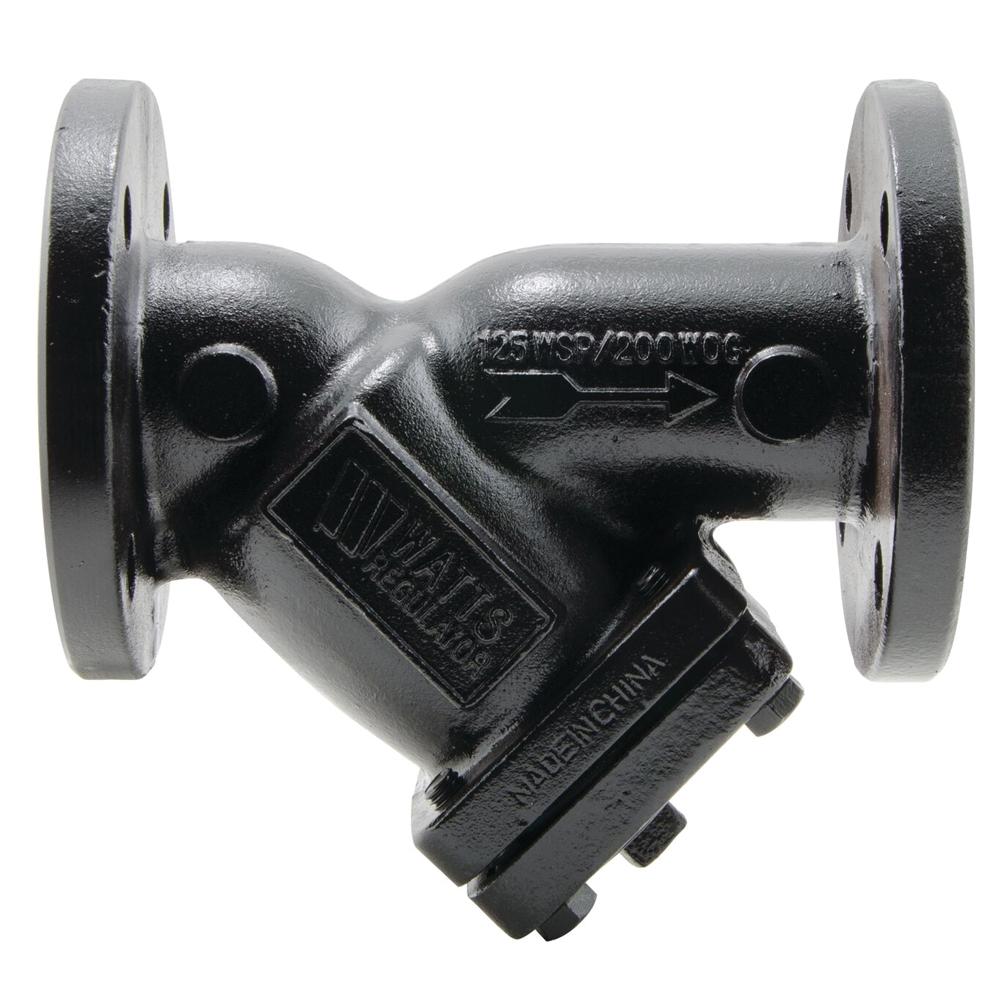

WATTS® 77F-DI-125 Series 0825201 Y-Strainer, 2-1/2 in Nominal, Flanged

  • Manufacturer: Watts Water Technologies
  • Brand Name: WATTS®
  • Part Number: 241
  • MPN: 0825201
  • UPC: 098268051711
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

This cast iron flanged wye pattern strainer 2 1/2 inch WATTS® model 77F-DI-125, has lead-free class B cast iron body with 1/16 inch perforated screen, class 125 flanged connections, cast iron blowdown plug, stainless steel perforated screen, bolted and tapped iron retainer cap with graphite gasket and drain/blow off connection furnished with a closure plug. Applicable for liquid and steam service to protect check valves, backflow preventers and similar controls from foreign matter. Maximum pressure (non-shock) 200 psi (13.8 bar) at 210 deg F (99 deg C) WOG, 125 psi (8.6 bar) at 353 deg F (178 deg C) WSP.

WATTS® Y-Strainer, 77F-DI-125 Series, 2-1/2 in Nominal, Flanged Connection, Perforation Size: 1/16 in, Iron Housing, 10 in, 200 psi, 353 deg F

Connection Type      :      Flanged
Dimensions      :      10 in
Housing Material      :      Iron
Nominal Size      :      2-1/2 in
Perforation Size      :      1/16 in
Pressure Rating      :      200 psi
Series      :      77F-DI-125 Series
Temperature Rating      :      353 deg F
