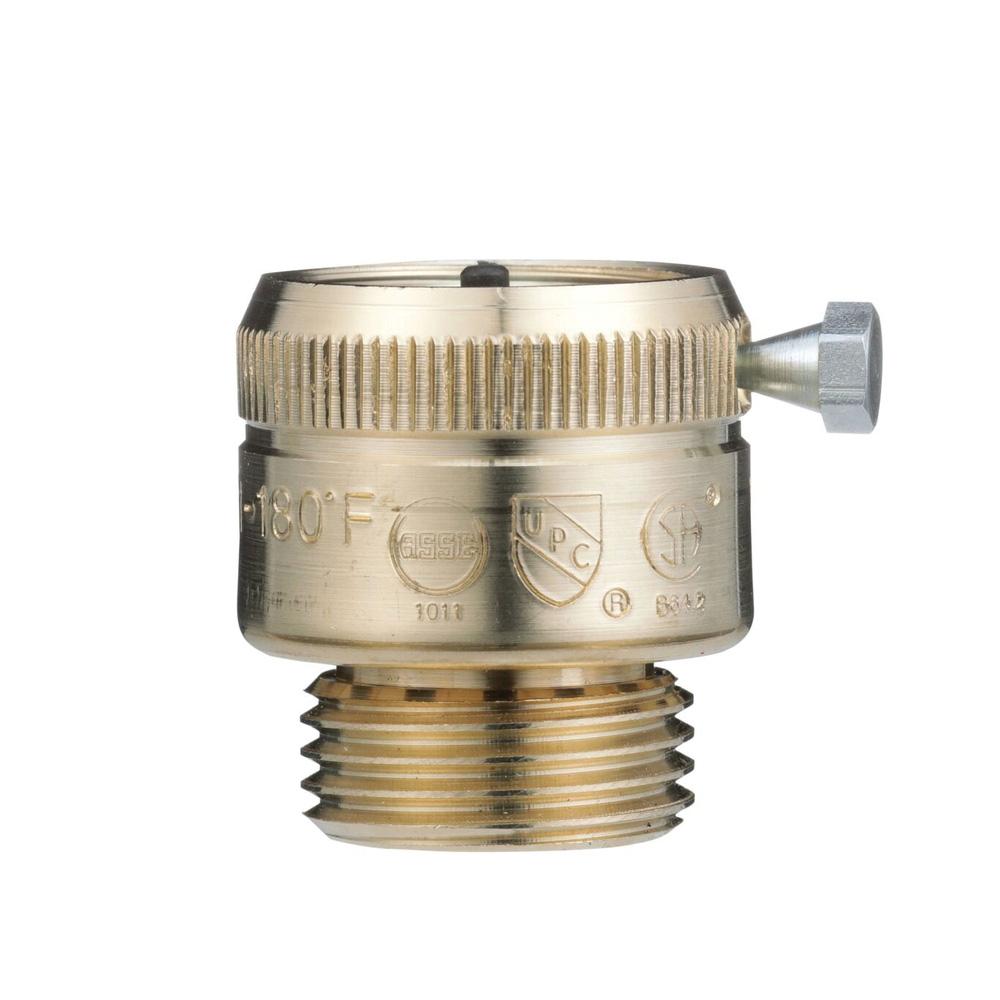

WATTS® LF8 Series 0792086 Vacuum Breaker, 3/4 in Nominal, FNPT x MNPT, 125 psi, Brass Body

  • Manufacturer: Watts Water Technologies
  • Brand Name: WATTS®
  • Part Number: 2494540
  • MPN: 0792086
  • UPC: 098268434736
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

This 3/4 in lead-free hose connection vacuum breaker backflow preventer permits the attachment of portable hoses to hose thread faucets and prevents the reverse flow of polluted water from entering into the potable water supply due to backsiphonage. It consists of a lead-free body construction, stainless steel working parts, a rubber diaphragm and disc, a draining stem and a break-away setscrew for tamper-resistant installations. It is ideal for inside and outside, health hazard installations requiring non-continuous pressure such as service sinks, swimming pools, photo developing tanks, laundry tubs, wash racks, dairy barns, marinas and general outside gardening uses. Check with local inspection authorities for installation requirements. Maximum pressure is 125 psi (8.6 bar).

WATTS® Vacuum Breaker, LF8 Series, 3/4 in Nominal, FNPT x MNPT Connection, 125 psi, Lead-Free, Brass Body, 33 to 180 deg F, 1-1/2 in H x 1-3/8 in W

Body Material      :      Brass
Connection Type      :      FNPT x MNPT
Dimensions      :      1-1/2 in H x 1-3/8 in W
Lead-Free/Contains Lead      :      Lead-Free
Nominal Size      :      3/4 in
Pressure Rating      :      125 psi
Series      :      LF8 Series
Temperature Rating      :      33 to 180 deg F
  • Durable rubber diaphragm and disc for consistent positive seating
  • Break away setscrew
  • No special tools are required for servicing
