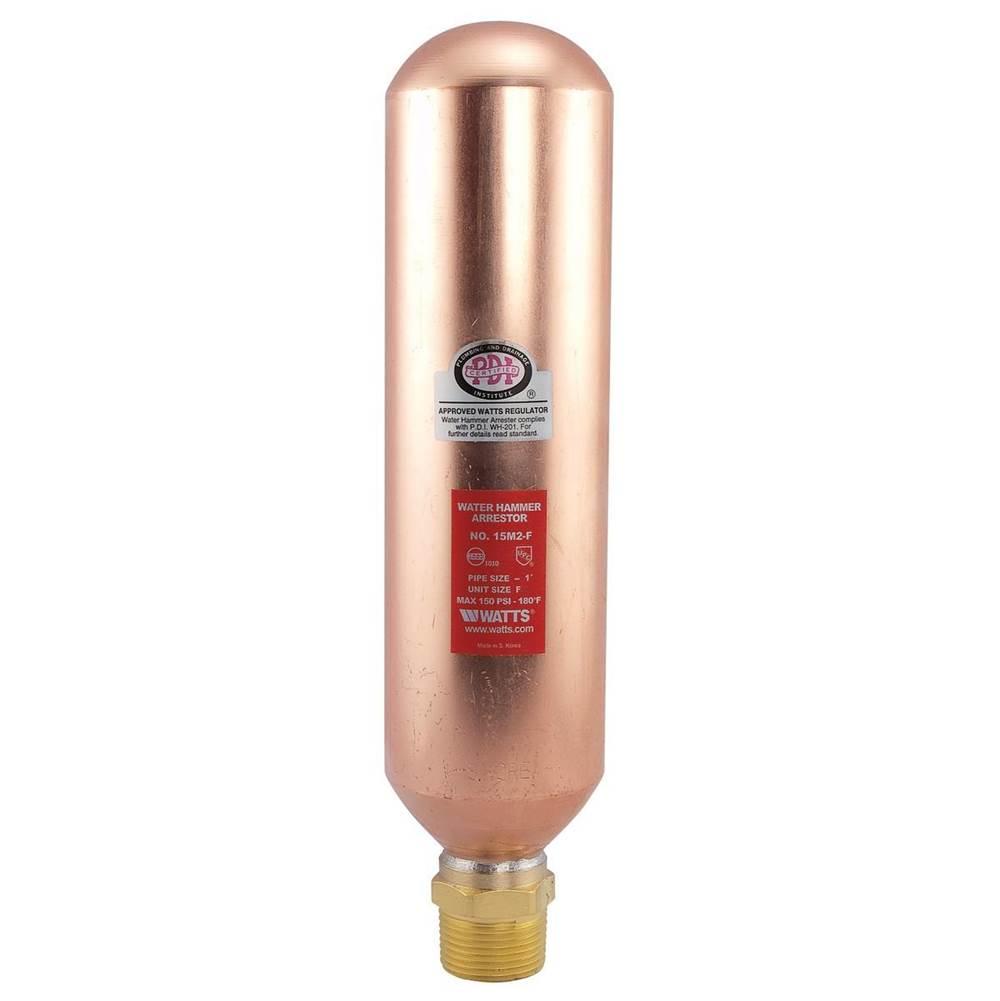

WATTS® 0750165 2494002

This 1 in, unit size F lead-free water hammer arrestor is used in commercial and industrial applications to control water pressure shock and prevent water hammer conditions. It consists of a copper body with a lead-free brass NPT threaded hex adapter, EPDM seals and O-rings, polypropylene piston and cap. It is factory air charged at 60 psi (4.2 bar) and is permanently capped and epoxy sealed to absorb the shock and is not rechargeable. It may be installed in new or existing plumbing systems with a standard pipe tee vertically, horizontally or at any angle and is ideal for commercial dishwashers, washing machine and quick-closing faucets applications. It is designed to operate on all domestic and commercial lines at 150 psi (10.3 bar) working pressure. This water hammer arrestor, size F is used to cover the required PDI listed 155 to 330 fixture units.

WATTS® Water Hammer Arrestor, LF15M2 Series, 1 in Connection, FNPT Connection, 150 psi, Lead-Free, Copper, 33 to 180 deg F, 11.15 in H x 5.625 in W

• Lead-free brass NPT hex adapter for easy installation
• Factory air charged at 60 psi (4.2 bar) and is not rechargeable in the field
• May be installed in concealed locations without access panels

• Instruction/Installation Manual Instruction/Installation Manual
• Specification Sheet Specification Sheet
