WATTS® 0559122 2412498

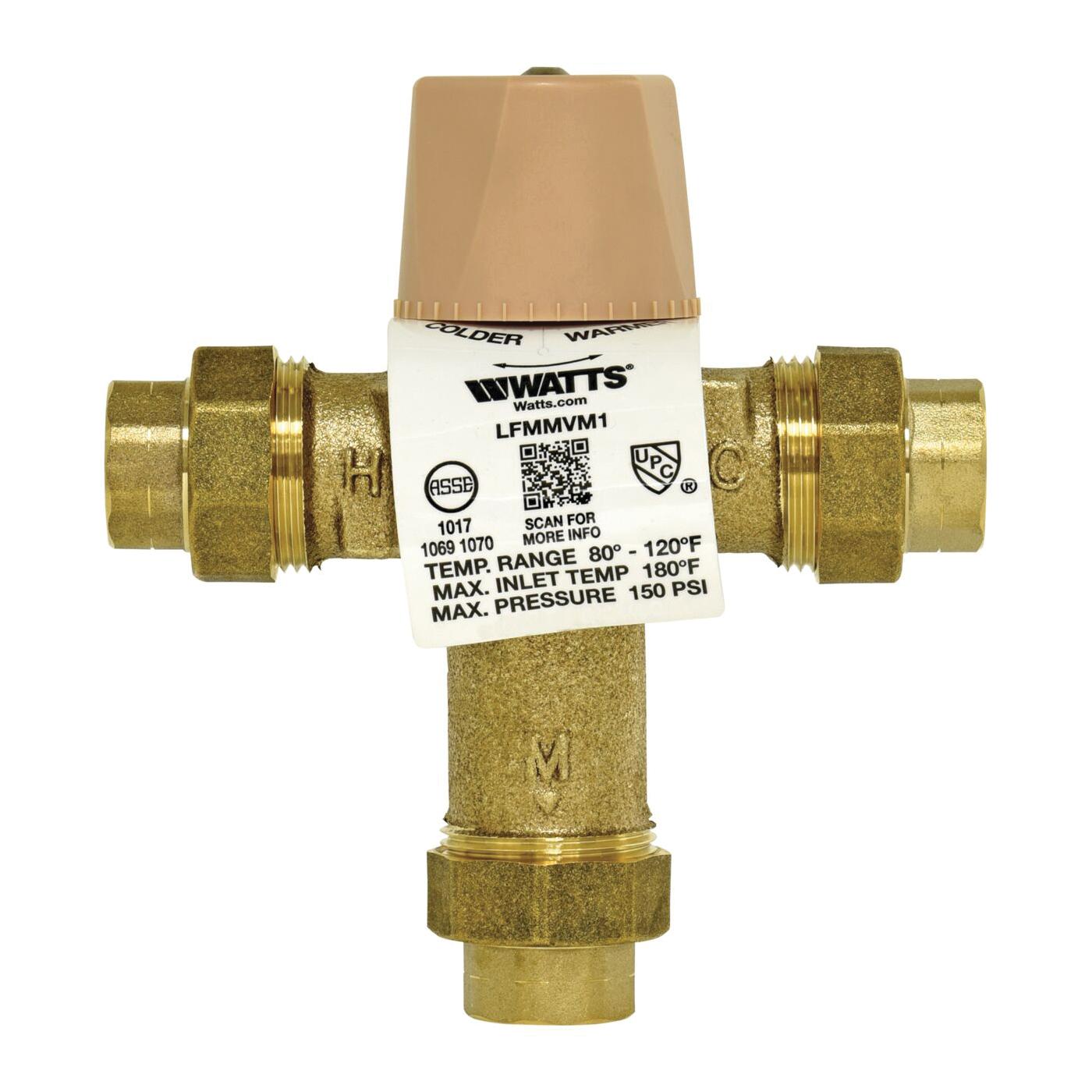

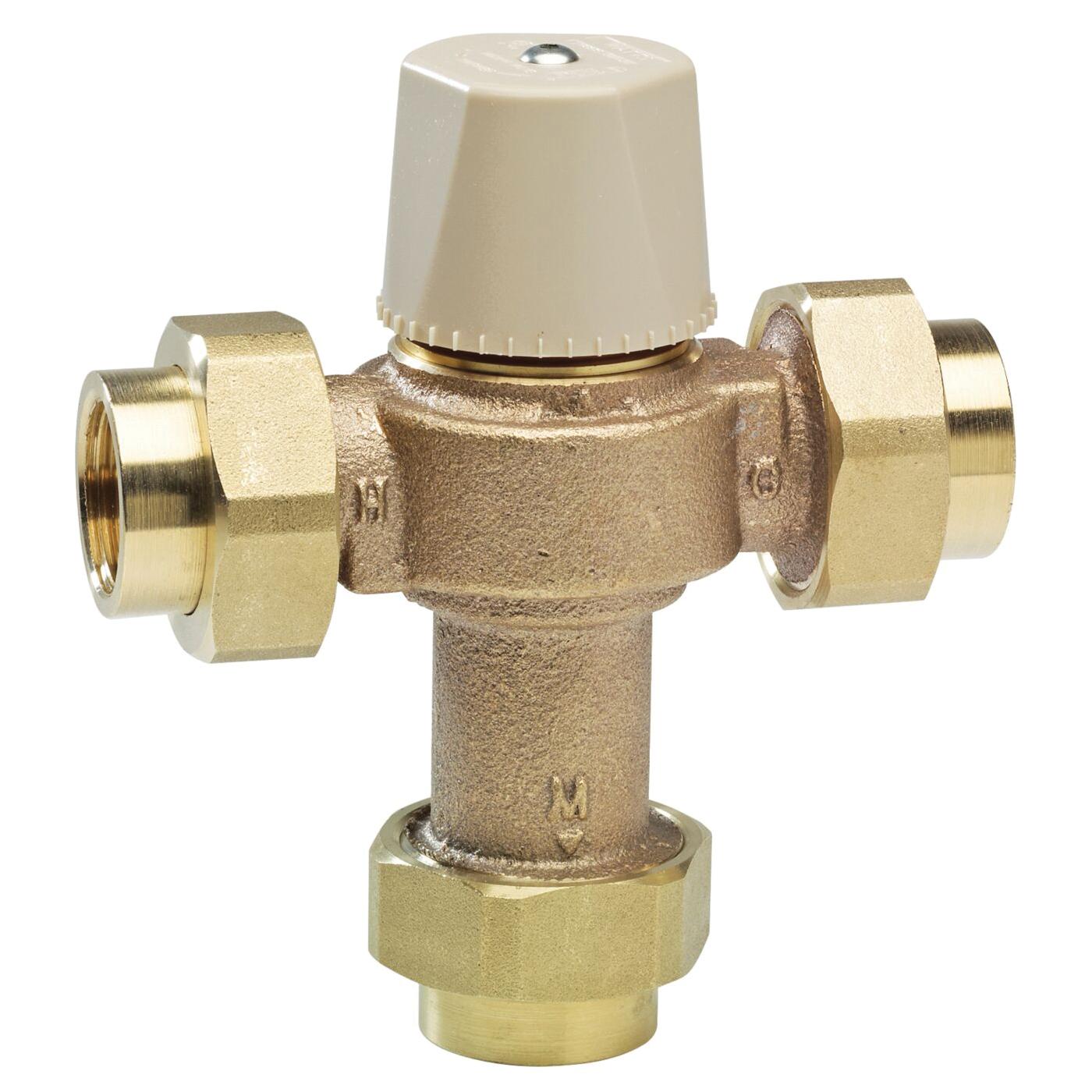

WATTS® LFMMV Series 0559122 Thermostatic Mixing Valve, 1 in Nominal, FNPT, 0.5 to 20 gpm, 150 psi, 200 deg F

  • Manufacturer: Watts Water Technologies
  • Brand Name: WATTS®
  • Part Number: 2412498
  • MPN: 0559122
  • UPC: 098268451856
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

This 1 inch lead free thermostatic mixing valve is designed for residential, commercial or institutional environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold water supply to the mixed outlet. It consists of a lead free brass body, threaded union connections, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The adjustable field range temperature at mixed outlet is 80 to 120 degrees F (27 to 49 degrees C). The maximum pressure rating is 150 psi (10.3 bar).

WATTS® Thermostatic Mixing Valve, LFMMV Series, 1 in Nominal, FNPT Connection, Threaded Union End, 150 psi, 0.5 to 20 gpm Flow Rate, Water Media, 5-5/16 in Inlet to Outlet Length, Copper Silicon Alloy Body, Stainless Steel Disc, Stainless Steel Trim, Buna-N/EPDM Softgoods, Finish: Rough Bronze, 200 deg F, 5-5/8 in H x 5-5/16 in W, Additional Information: Lead-Free, 39 to 85 deg F Cold Inlet Temperature Range, 105 deg F Factory Set Temperature, 120 to 180 deg F Hot Inlet Temperature Range, 25% Maximum Pressure Differential, 5 deg F Minimum Differential Temperature, +/-7 deg F Outlet Temperature Accuracy

Additional Information      :      Lead-Free, 39 to 85 deg F Cold Inlet Temperature Range, 105 deg F Factory Set Temperature, 120 to 180 deg F Hot Inlet Temperature Range, 25% Maximum Pressure Differential, 5 deg F Minimum Differential Temperature, +/-7 deg F Outlet Temperature Accuracy
Body Material      :      Copper Silicon Alloy
Connection Type      :      FNPT
Dimensions      :      5-5/8 in H x 5-5/16 in W
Disc Material      :      Stainless Steel
End Type      :      Threaded Union
Finish      :      Rough Bronze
Flow Rate      :      0.5 to 20 gpm
Inlet to Outlet Length      :      5-5/16 in
Media      :      Water
Nominal Size      :      1 in
Pressure Rating      :      150 psi
Series      :      LFMMV Series
Softgoods Material      :      Buna-N/EPDM
Temperature Rating      :      200 deg F
Trim Material      :      Stainless Steel
  • Lead free brass construction
  • Thermal actuation technology for precise temperature control
  • Locking mechanism secures temperature setting
  • ASSE 1070, ASSE 1069, ASSE 1017 and UPC listed
