WATTS® 0545005 2487344
  1. pin-int

WATTS® 0545005 2487344

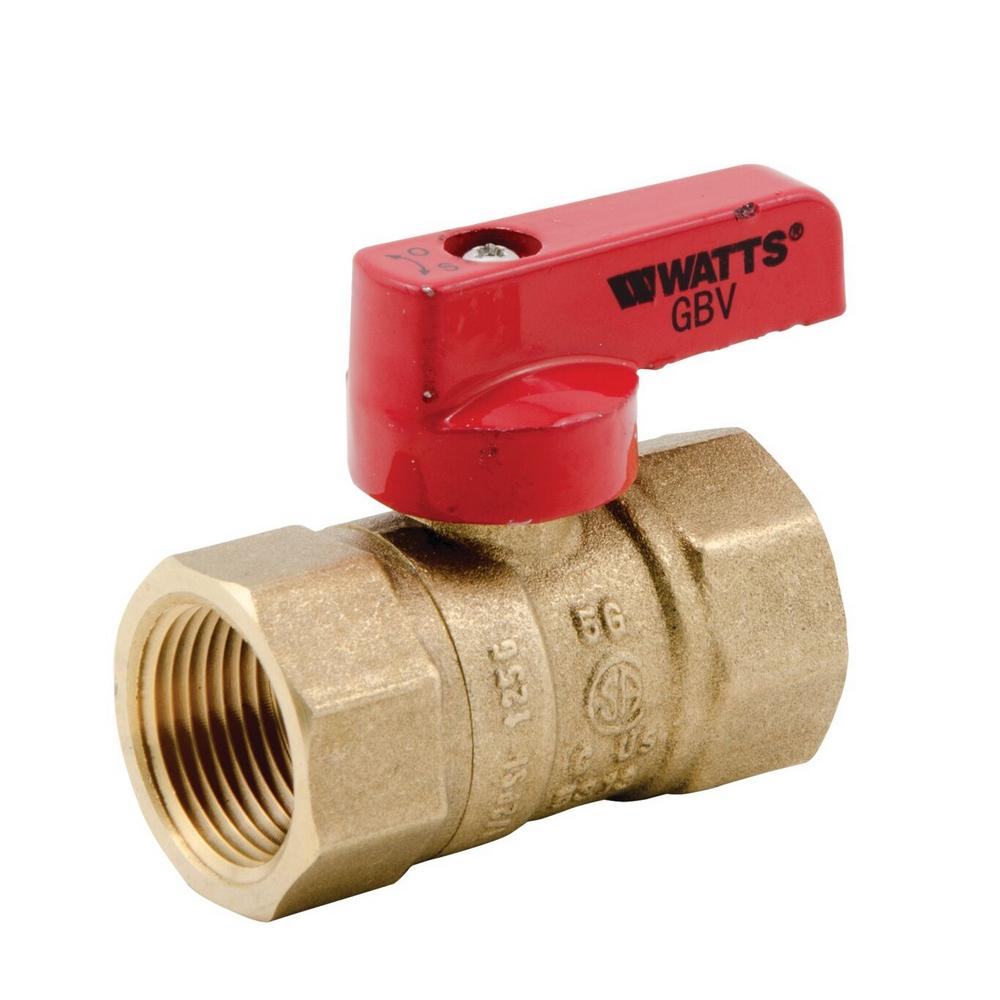

WATTS® GBV Series 0545005 2-Piece Ball Valve, 3/4 in, FNPT, Brass, 5 psi

  • Manufacturer: Watts Water Technologies
  • Brand Name: WATTS®
  • Part Number: 2487344
  • MPN: 0545005
  • UPC: 098268074390
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

This 3/4 in two-piece brass gas ball valve with female threaded end connections is used in residential and commercial applications for natural gas and LP gas on in-house and indoor piping systems. The valve features brass body construction, virgin PTFE seats and seals, brass end piece and plug and zinc alloy handle.

WATTS® 2-Piece Ball Valve, GBV Series, 3/4 in Nominal, FNPT Connection, 5 psi, Gas Media, T-Handle Operator, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, PTFE Packing, Zinc Alloy Handle, Brass Ball, Finish: Brass, -20 to 125 deg F, 2-7/16 in L

Ball Material      :      Brass
Body Material      :      Brass
Connection Type      :      FNPT
Dimensions      :      2-7/16 in L
Finish      :      Brass
Handle Material      :      Zinc Alloy
Media      :      Gas
Nominal Size      :      3/4 in
Operator Type      :      T-Handle
Packing Material      :      PTFE
Pressure Rating      :      5 psi
Seal Material      :      PTFE
Seat Material      :      PTFE
Series      :      GBV Series
Stem Material      :      Brass
Temperature Rating      :      -20 to 125 deg F
  • Brass two-piece body construction
  • Used for LP and natural gas in residential and commercial applications
  • Complies with ANSI standards for gas piping
  • UL approved at 5 psi
  • NPT female connections and T-handle
