WATTS® 0204152 2482076

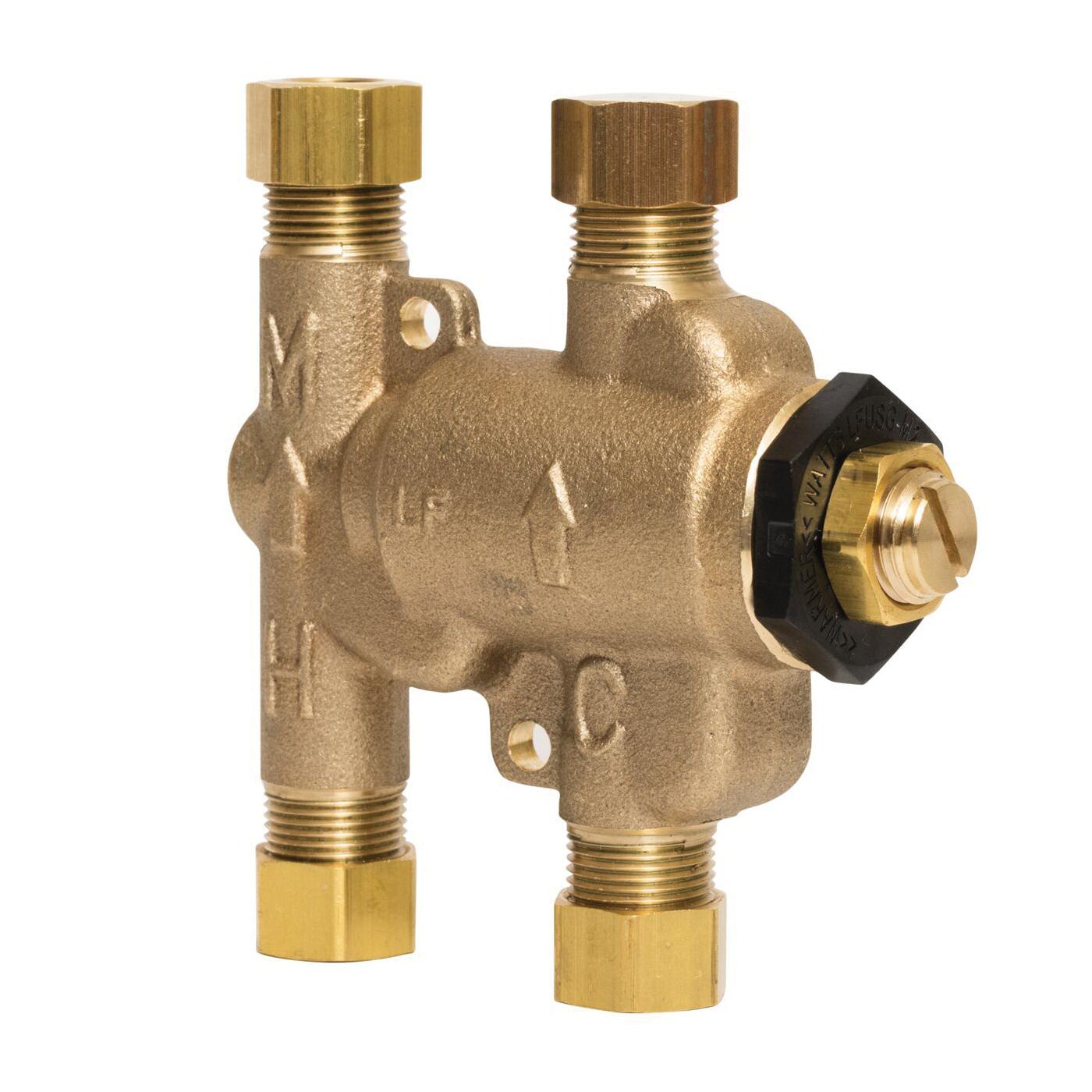

WATTS® LFUSG Series LFUSG-B M3 0204152 Lavatory Mixing Valve, 3/8 in Nominal, Compression, 2.5 gpm, 150 psi, 105 deg F

  • Manufacturer: Watts Water Technologies
  • Brand Name: WATTS®
  • Part Number: 2482076
  • MPN: 0204152
  • UPC: 098268520774
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

This 3/8 in Under Sink Guardian® lead-free thermostatic mixing valve is used in commercial and residential applications to control the hot water temperature and minimize the potential for accidental scalding. It is suitable for kitchen and bath installations where the water delivered to the fixtures is intended for bathing or washing. The double throttling design controls both the hot and cold-water supply to the mixed outlet. This valve consists of a lead-free brass body, 3/8 in male compression fittings, copper thermostat, check valves, integral strainer with 40-mesh stainless steel screens and a tamper-resistant locking cap. The maximum working pressure is 150 psi (1034 kPa). The water temperature can be field adjusted between 80 to 120 deg F (27 to 49 deg C). The recommended maximum temperature is 110 deg F (43 deg C). This product meets the reduced Q test statistic criteria of 0.5 ppb for lead per section 9.5.1.1 of NSF/ANSI/CAN 61.

WATTS® Lavatory Mixing Valve, LFUSG Series, Model: LFUSG-B M3, 3/8 in Nominal, Compression Connection, 150 psi, 2.5 gpm Flow Rate, Water Media, 1-1/2 in Inlet to Outlet Length, 2 Handles, Brass Body, Buna-N Seal, Buna-N Disc, 105 deg F, 3-3/16 in H x 3-3/8 in W

Body Material      :      Brass
Connection Type      :      Compression
Dimensions      :      3-3/16 in H x 3-3/8 in W
Disc Material      :      Buna-N
Flow Rate      :      2.5 gpm
Inlet to Outlet Length      :      1-1/2 in
Media      :      Water
Model      :      LFUSG-B M3
Nominal Size      :      3/8 in
Number of Handles      :      2
Pressure Rating      :      150 psi
Seal Material      :      Buna-N
Series      :      LFUSG Series
Temperature Rating      :      105 deg F
  • Accurate temperature control with low pressure drop
  • Built-in check valves prevent hot and cold-water cross flow
  • Provides superior flow rate between 0.25 and 2.5 gpm
  • Installs easily between the stop valves and faucet
  • Includes tamper-resistant locking nut to prevent accidental mis-adjustment
  • Built-in check valves prevent migration of hot water to cold and cold-water to hot water piping
  • Provided with cap for three port application
  • Integral strainer with 40 mesh stainless steel screens to filter out debris
