WATTS® 0121224 2447501
  1. pin-int

WATTS® 0121224 2447501

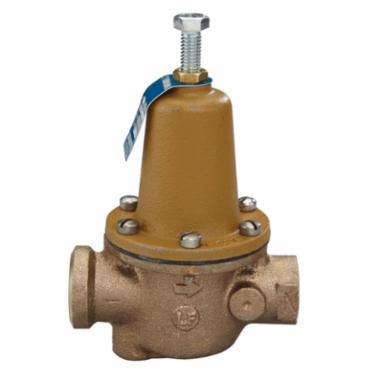

WATTS® 0121224 Low Pressure Regulator, 1/2 in Nominal, FNPT, 200 psi, 33 to 180 deg F, Copper Silicon Body

  • Manufacturer: Watts Water Technologies
  • Brand Name: WATTS®
  • Part Number: 2447501
  • MPN: 0121224
  • UPC: 098268580235
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

This 1/2 in low water pressure regulator is used in residential and point of use applications to regulate water pressure in piping systems that require low pressure regulation. It consists of a bronze body construction, NPT threaded female connections, stainless steel seat, stainless steel integral strainer, reinforced EPDM diaphragm and EPDM valve disc. It is serviceable inline. The adjustable reduced pressure range is 10 to 30 psi (0.68 to 2.0 bar) and is set at 25 psi (1.7 bar). The temperature range is 33 to 180 deg F (0.6 to 82 deg C).

WATTS® Low Pressure Regulator, 1/2 in Nominal, FNPT Connection, 200 psi, Water Media, 3-1/16 in Inlet to Outlet Length, 3-3/8 in Top to Inlet Center, Copper Silicon Body, Stainless Steel Seat, EPDM Disc, EPDM/PTFE Softgoods, 33 to 180 deg F

Body Material      :      Copper Silicon
Connection Type      :      FNPT
Disc Material      :      EPDM
Inlet to Outlet Length      :      3-1/16 in
Media      :      Water
Nominal Size      :      1/2 in
Pressure Rating      :      200 psi
Seat Material      :      Stainless Steel
Softgoods Material      :      EPDM/PTFE
Temperature Rating      :      33 to 180 deg F
Top to Inlet Center      :      3-3/8 in
  • Low pressure setting
  • Integral stainless steel strainer
  • Serviceable inline
