WATTS® 0066100 42558
  1. pin-int

WATTS® 0066100 42558

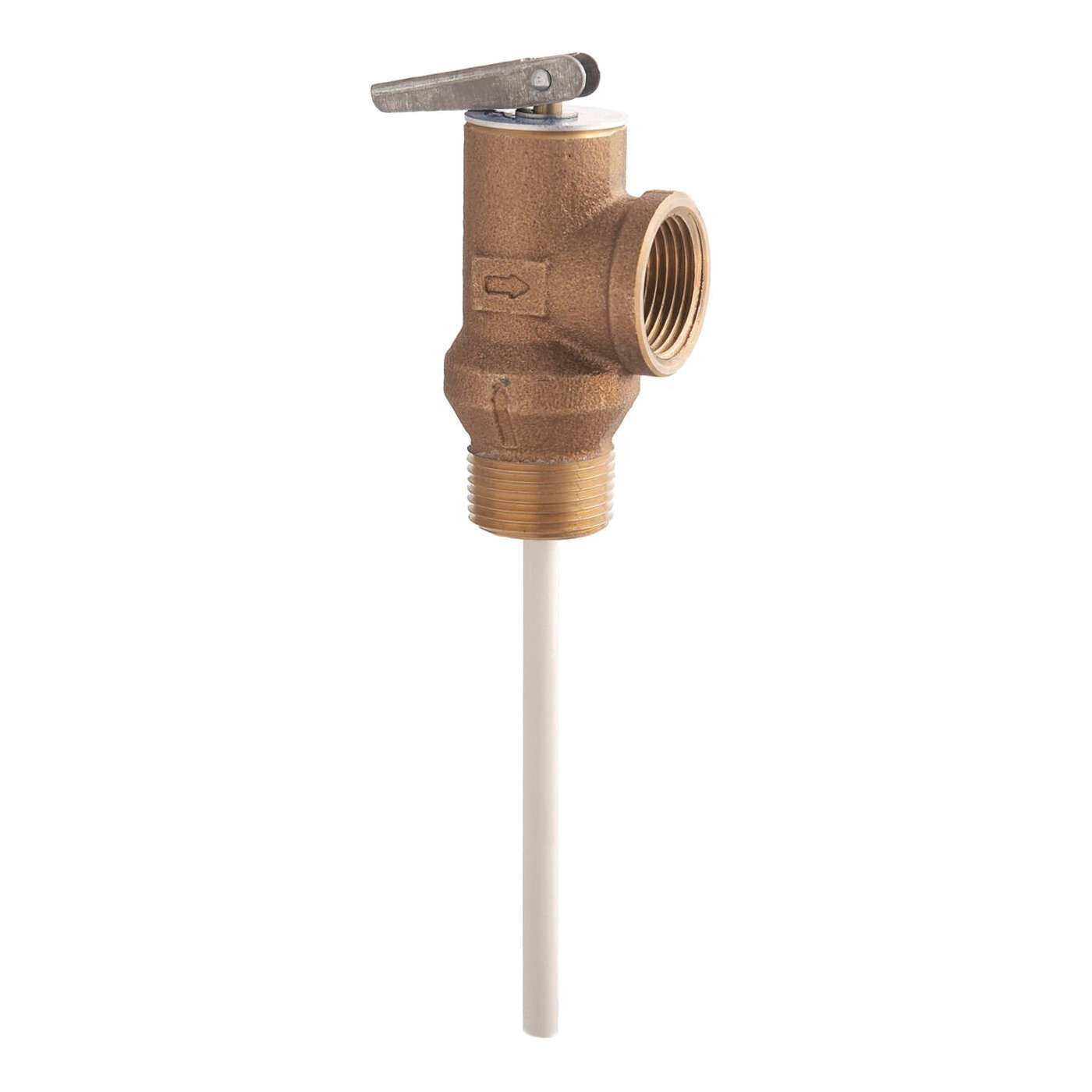

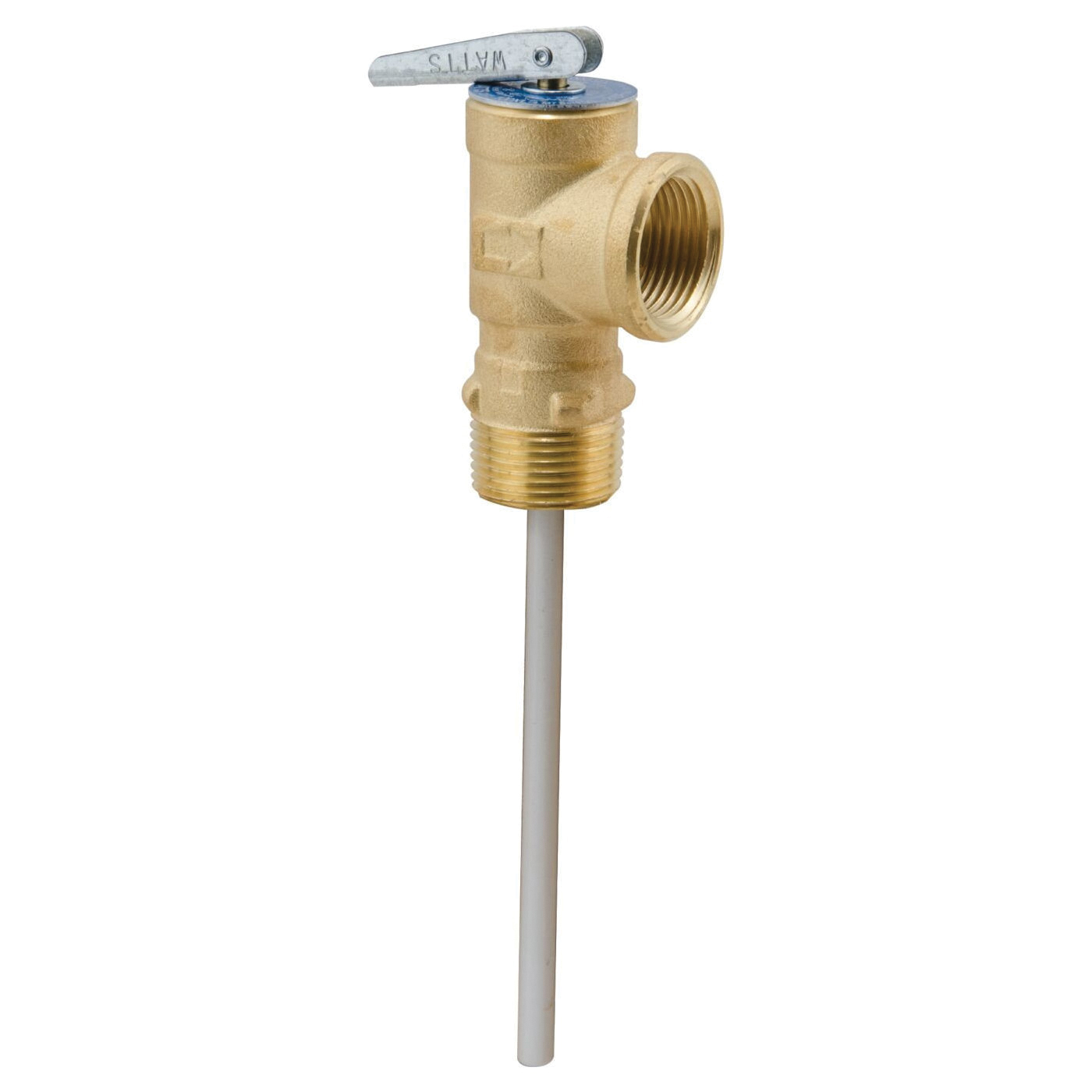

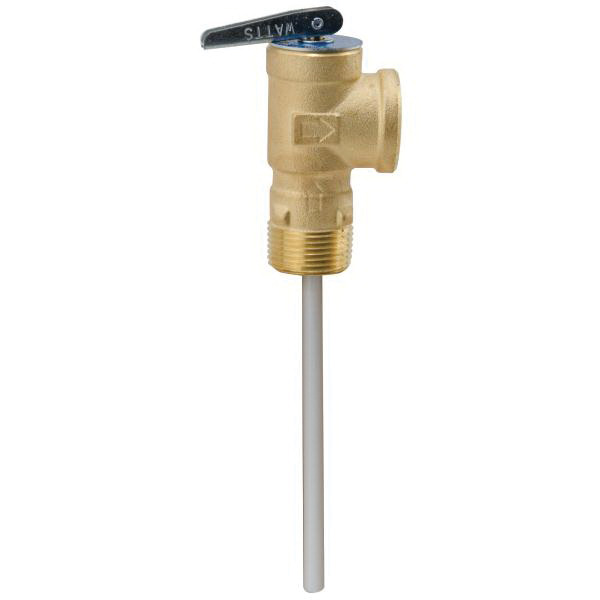

WATTS® 100XL Series 0066100 Temperature and Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT, 150 psi, 210 deg F

  • Manufacturer: Watts Water Technologies
  • Brand Name: WATTS®
  • Part Number: 42558
  • MPN: 0066100
  • UPC: 098268000016
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

This 3/4 inch temperature and pressure relief valve is used to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. It features a brass body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. This valve is ASME rated and CSA listed. Temperature relief is 210 degree F (99 degree C). Pressure relief is set at 150 psi.

WATTS® Temperature and Pressure Relief Valve, 100XL Series, 3/4 in Nominal, MNPT x FNPT Connection, 150 psi, Water Media, Lever Actuator, Brass Body, 210 deg F, 3-11/64 in H x 1-5/32 in W, Additional Information: 4 in L Thermostat Probe, Nylon Coated Copper Thermostat Material, 1-1/8 in L Shank

Actuator Type      :      Lever
Additional Information      :      4 in L Thermostat Probe, Nylon Coated Copper Thermostat Material, 1-1/8 in L Shank
Body Material      :      Brass
Connection Type      :      MNPT x FNPT
Dimensions      :      3-11/64 in H x 1-5/32 in W
Media      :      Water
Nominal Size      :      3/4 in
Pressure Rating      :      150 psi
Series      :      100XL Series
Temperature Rating      :      210 deg F
  • Required safety device on all water heaters
  • Prevents water heater from blowing up
  • Brass body construction
  • Temperature relief is 210 degree F (99 degree C)
  • Used to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr
  • ASME rated, CSA Listed
  • Features unique thermostat with special thermo-bonded coating
  • Includes test lever and stainless steel spring
  • ANSI Z21.22 certified
