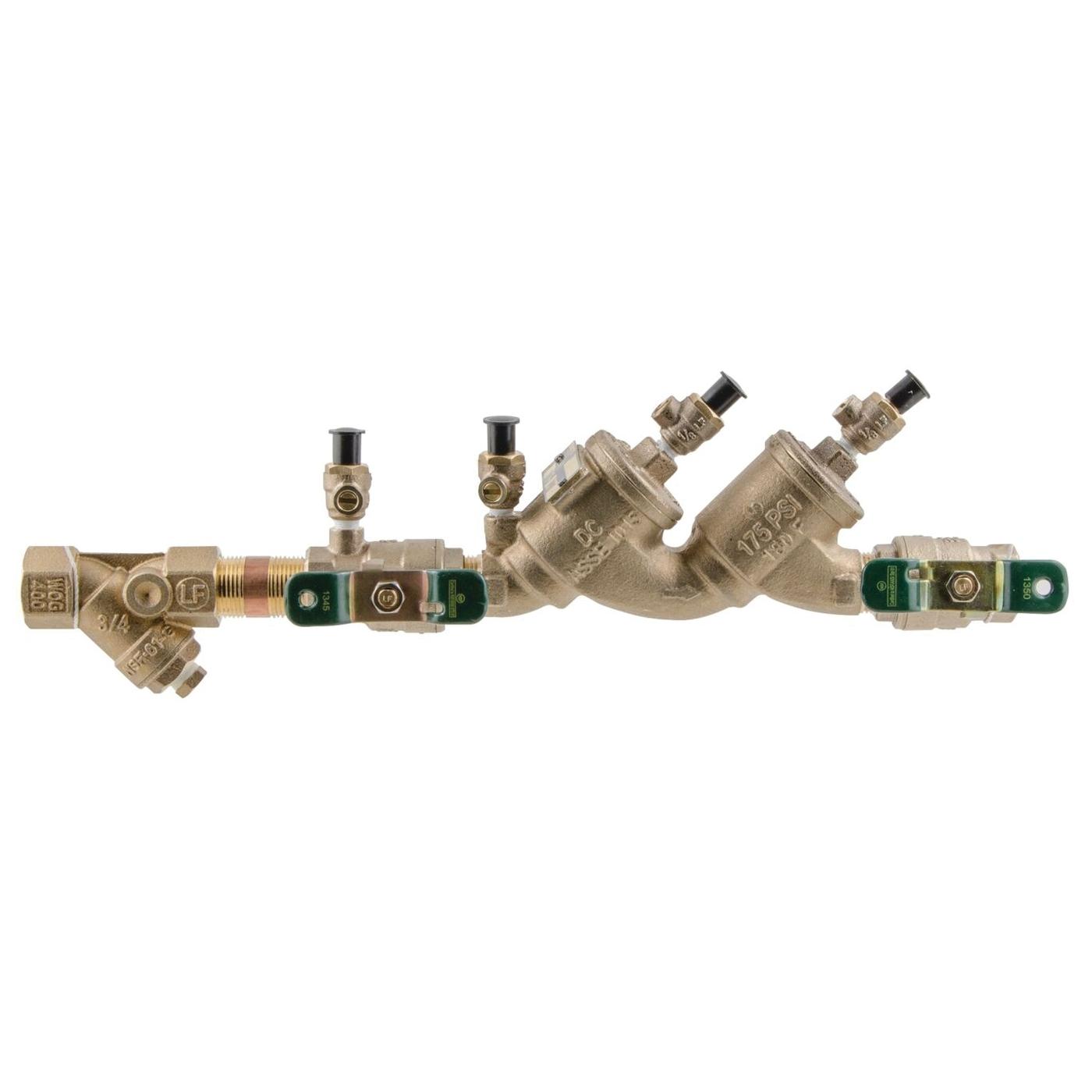

WATTS® LF719 Series 0065308 Backflow Preventer Assembly, 3/4 in, FNPT, Lead-Free

  • Manufacturer: Watts Water Technologies
  • Brand Name: WATTS®
  • Part Number: 2415082
  • MPN: 0065308
  • UPC: 098268236781
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

This 3/4 in lead-free double check valve backflow preventer assembly is designed to prevent the reverse flow of contaminated water of non-potable quality from being pumped or siphoned into the potable water supply due to back siphonage and or back pressure in accordance with national plumbing codes and water authority requirements. It is ideal for protection at cross-connections identified as non-health hazard applications and from other contaminants found at the service line entrance. This compact design with separate access top entry for easy maintenance is approved with the arrow on the valve pointing in the direction of flow for horizontal and vertical installations. This assembly consists of a lead-free cast copper silicon alloy body, quarter-turn ball valves with tee handles, NPT end connections, lead-free bronze strainer, screw driver slotted test cocks, two replaceable positive seating check valves and reversible rubber seat discs.

WATTS® Backflow Preventer Assembly, LF719 Series, 3/4 in Nominal, FNPT Connection, 175 psi Pressure, Media: Water, 15-7/16 in Inlet to Outlet Length, 3-1/2 in Top to Inlet Center, Quarter-Turn Ball Valve Operator, Bronze Body, Lead-Free/Contains Lead: Lead-Free, Cast Bronze, 33 to 180 deg F, Additional Information: Double Check Valve Assembly-Type, Inline Body Pattern

Additional Information      :      Double Check Valve Assembly-Type, Inline Body Pattern
Body Material      :      Bronze
Connection Type      :      FNPT
Finish      :      Cast Bronze
Inlet to Outlet Length      :      15-7/16 in
Lead-Free/Contains Lead      :      Lead-Free
Media      :      Water
Nominal Size      :      3/4 in
Operator Type      :      Quarter-Turn Ball Valve
Pressure Rating      :      175 psi
Series      :      LF719 Series
Temperature Rating      :      33 to 180 deg F
Top to Inlet Center      :      3-1/2 in
  • Lead-free cast copper silicon alloy body construction
  • Chloramine-resistant elastomers
  • Top-mounted screwdriver slotted ball valve test cocks
  • Reversible seat disc rubber, extends the check valve life
