WATTS® 0062968 488945

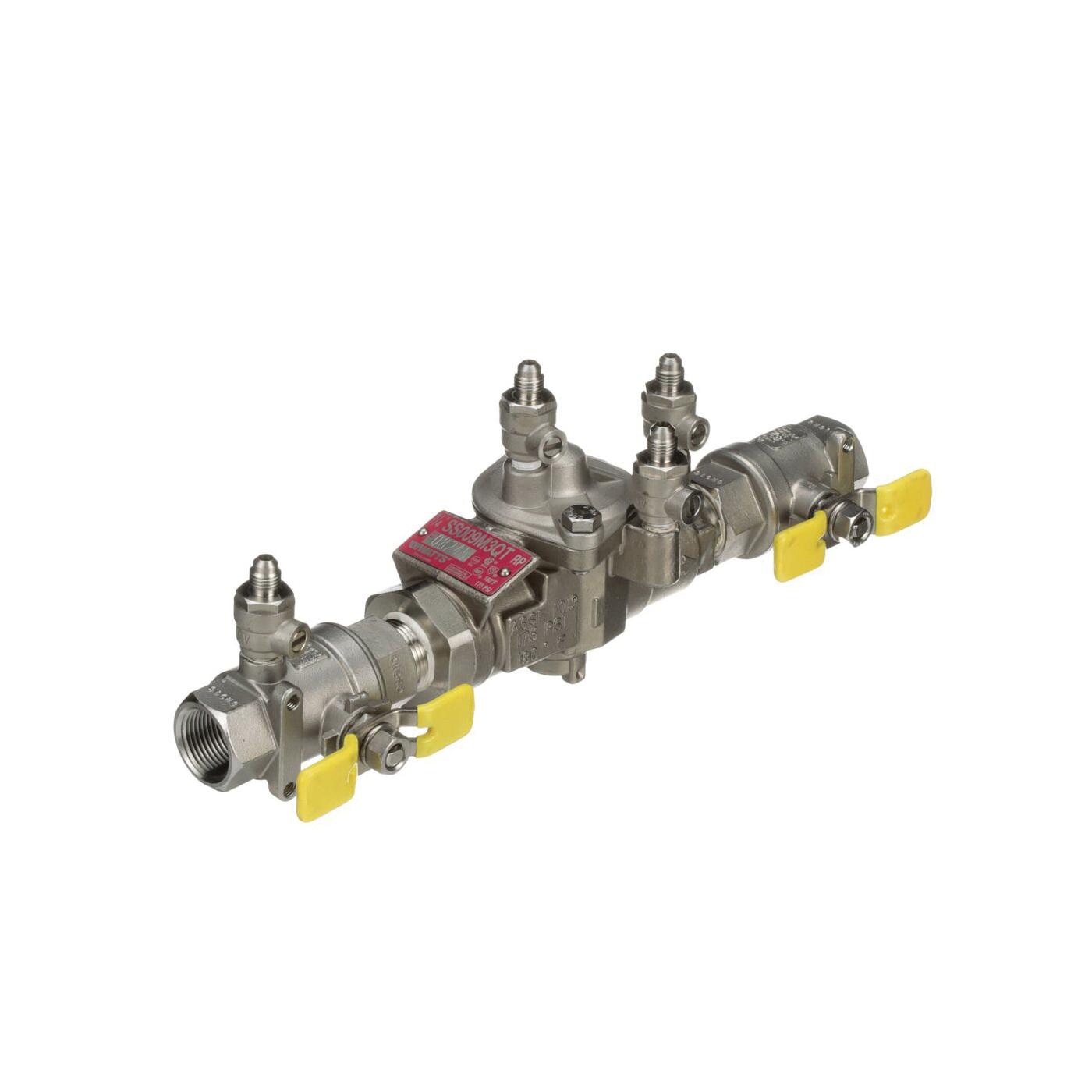

This 3/4 in stainless steel reduced pressure zone backflow preventer assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to back siphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is ideal for typical applications that are found in industrial plants, medical diagnostic equipment, reverse osmosis systems, carbonated beverage machines, brewing distillers, paper and pulp industries, chemical plants and aggressive atmospheres. This assembly consists of a 316 stainless steel body, NPT end connections, quarter turn ball valve shut-offs with tee handles, top-mounted vandal-resistant EZ-test cocks with covers, two inline independent check valves, captured springs, replaceable check seats, corrosion-resistant internal parts and a hydraulically operated differential pressure internal relief valve for reduced space requirements.

WATTS® Backflow Preventer Reduced Pressure Zone Assembly, SS009 Series, 3/4 in Nominal, FNPT Connection, Full Port, 175 psi Pressure, 7.5 fps Flow Rate, Stainless Steel Body, Lead-Free/Contains Lead: Lead-Free, 33 to 180 deg F

• True line sized check modules open further allowing dirt and debris to pass freely through the valve reducing fouling problems
• Top-mounted vandal-resistant EZ-TC test cocks provide easy access for testing
• NPT inlet and outlet connections
• Modular check construction featuring nonreversible checks with captured springs for simplified servicing
• Internal relief valve for right and left hand installations
• Quarter turn full-port resilient seated ball valve shut-offs
• Replaceable seats for an economical repair
• Bolted on, top entry single access cover for ease of maintenance
• Investment cast 316 stainless steel assembly for corrosion resistance
