WATTS® 0061656 2492490

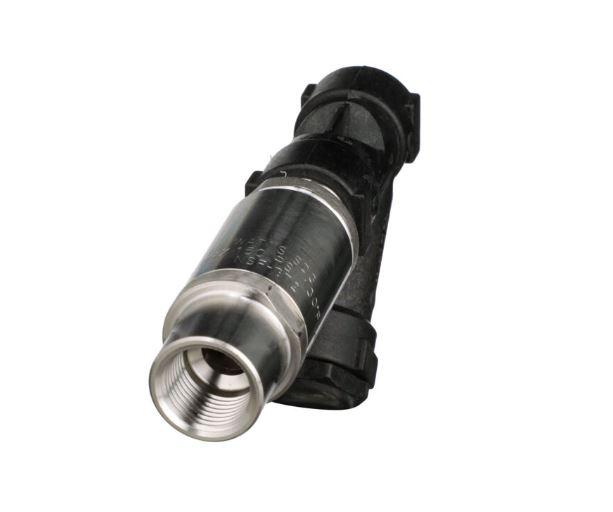

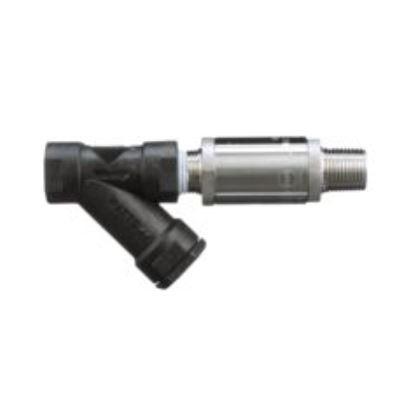

This 3/8 in dual check valve backflow preventer with atmospheric port and strainer for carbonated beverage machines prevents the reverse flow of polluted water, such as carbon dioxide gas and carbonated water, from entering into the potable water supply due to back pressure backflow. It is designed for continuous or intermittent pressure applications and ideal for use on post-mix carbonated beverage equipment and dispensing equipment for tea and coffee. This valve consists of stainless steel body construction, male NPT end connections, internal rubber components and an atmospheric vent and a wye pattern strainer. Includes an atmospheric port that provides visual indication of failure of the second check.

WATTS® Backflow Preventer, SD-3 Series, 3/8 in Nominal, MNPT Connection, 150 psi, 54 to 130 deg F, Atmospheric Port, Water Media, Stainless Steel Body, Lead-Free, Finish: Stainless Steel, 4-1/2 in L, Additional Information: Dual Check with Atmospheric Vent-Type

• Can be installed vertically or horizontally

• Instruction/Installation Manual Instruction/Installation Manual
• Specification Sheet Specification Sheet
• Warranty Information Warranty Information
