WATTS® 0009258 2432356
  1. pin-int

WATTS® 0009258 2432356

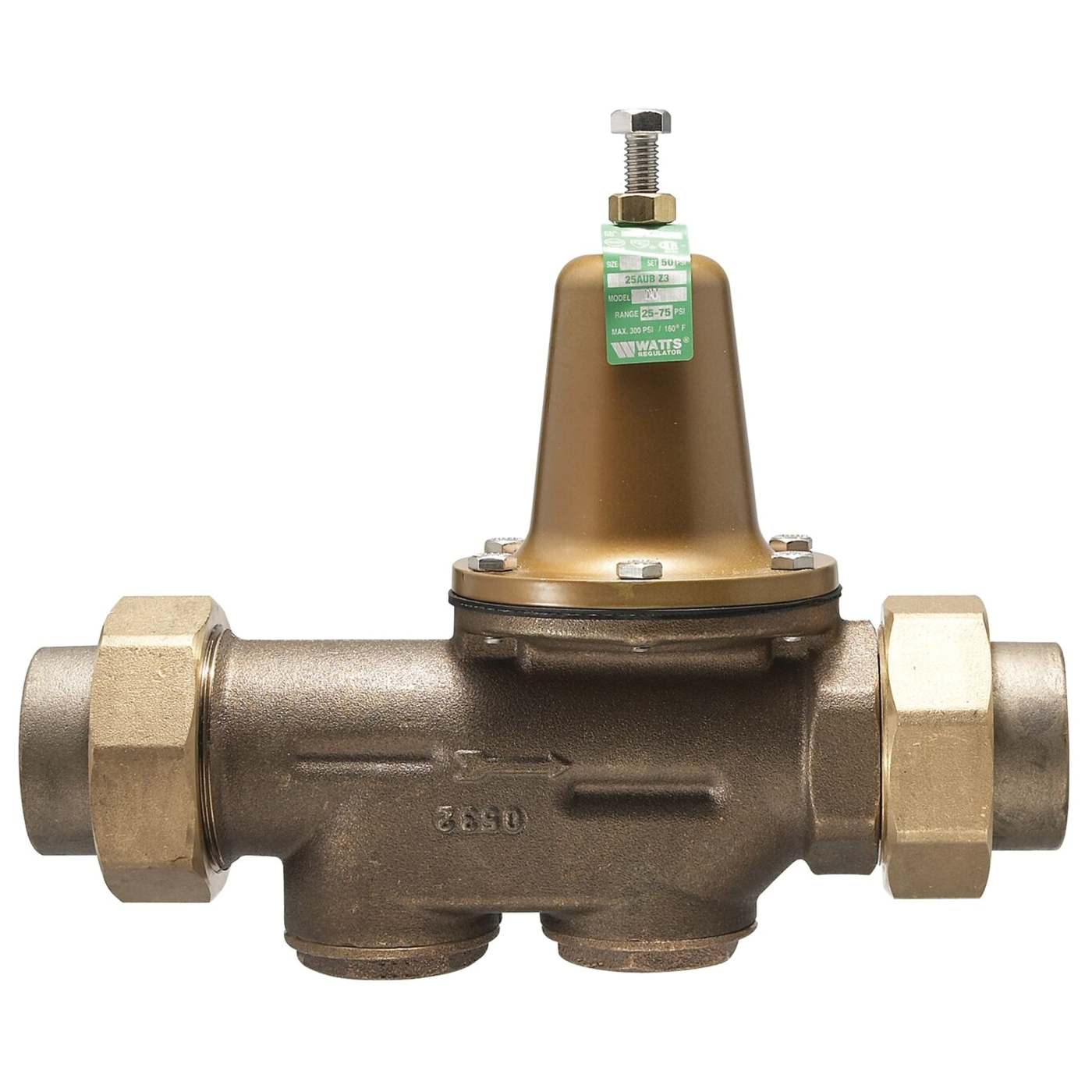

WATTS® LF25AUB-Z3 Series 0009258 Pressure Reducing Valve, 3/4 in Nominal, Union FNPT, 300 psi, 33 to 180 deg F

  • Manufacturer: Watts Water Technologies
  • Brand Name: WATTS®
  • Part Number: 2432356
  • MPN: 0009258
  • UPC: 098268329711
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

This 3/4 inch lead free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, double union NPT threaded female inlet and outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).

WATTS® Pressure Reducing Valve, LF25AUB-Z3 Series, 3/4 in Nominal, Union FNPT Connection, 300 psi, Water Media, 5-3/16 in Inlet to Outlet Length, Copper Silicon Alloy Body, EPDM Disc, Lead-Free, 33 to 180 deg F

Body Material      :      Copper Silicon Alloy
Connection Type      :      Union FNPT
Disc Material      :      EPDM
EA Height      :      3 in
EA Length      :      6.5 in
EA Weight      :      3.5405 lb
EA Width      :      6.437 in
Inlet to Outlet Length      :      5-3/16 in
Lead-Free/Contains Lead      :      Lead-Free
Media      :      Water
Net Content      :      1
Nominal Size      :      3/4 in
Pressure Rating      :      300 psi
Series      :      LF25AUB-Z3 Series
Temperature Rating      :      33 to 180 deg F
  • Bypass feature controls thermal expansion pressure
  • Sealed spring cage with stainless steel cage screws
  • Integral stainless steel strainer removable for cleaning
  • Replaceable seat module
