Viega 49240 2459475

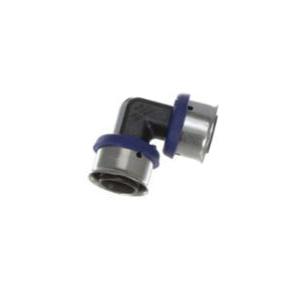

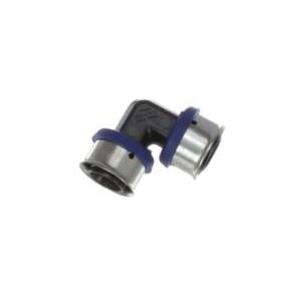

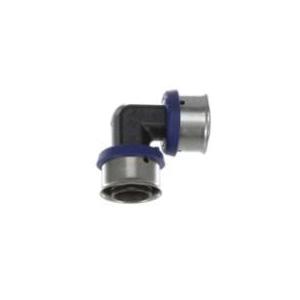

Viega PureFlow® V5616 Series 49240 90 deg Elbow, 3/4 in Press x 3/4 in Press, Polymer

  • Manufacturer: Viega
  • Brand Name: Viega
  • Part Number: 2459475
  • MPN: 49240
  • UPC: 691514492407
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

Viega PureFlow® press fittings are available in lead-free bronze and polymer and include a factory assembled, stainless steel sleeve with three viewing holes and a tool locator ring to ensure a proper PEX press connection Viega PureFlow® press is the most complete potable water and hydronic system solution available in North American.

Viega 90 deg Elbow, V5616 Series, 90 deg Elbow Fitting, Connection Size 1: 3/4 in, Connection Type 1: Press, Connection Size 2: 3/4 in, Connection Type 2: Press, Press|Press Connection, Polymer, Material Construction: Polymer, For Use With: Viega PureFlow® PEX, Viega FostaPEX or Viega Barrier PEX Tubes, 1.82 in L x 1.82 in W x 1.09 in H, 160 psi, 180 to 200 deg F

Connection Size 1      :      3/4 in
Connection Size 2      :      3/4 in
Connection Type 1      :      Press
Connection Type 2      :      Press
Connection Type      :      Press|Press
Dimensions      :      1.82 in L x 1.82 in W x 1.09 in H
Fitting Type      :      90 deg Elbow
For Use With      :      Viega PureFlow�� PEX, Viega FostaPEX or Viega Barrier PEX Tubes
Material Construction      :      Polymer
Material      :      Polymer
Pressure Rating      :      160 psi
Series      :      V5616 Series
Temperature Rating      :      180 to 200 deg F
  • Smart Connect® technology
  • Allows identification of an unpressed fitting during pressure testing
  • Polymer fittings use high-grade polymer (Radel® R)
