Supco® LLD032S 2445122
  1. pin-int

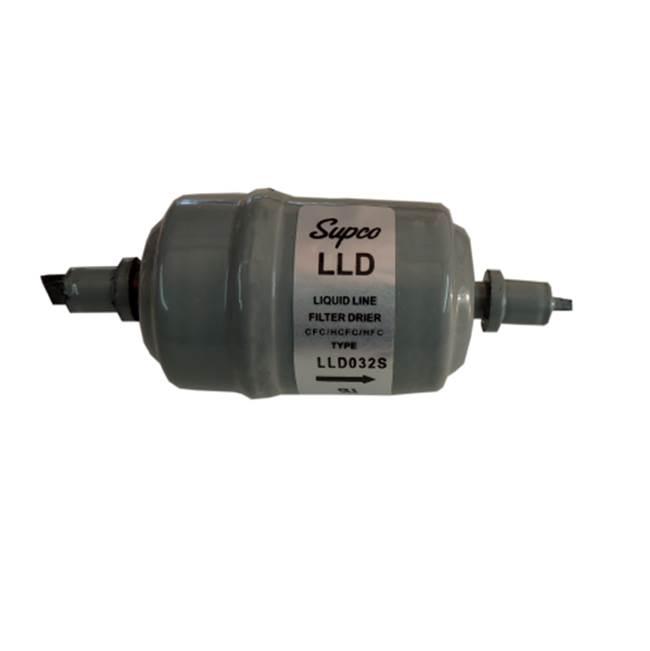

Supco® LLD032S 2445122

Liquid Line Drier

  • Manufacturer: Lennox International
  • Brand Name: Supco®
  • Part Number: 2445122
  • MPN: LLD032S
  • UPC: 687152068029
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches
Connection Size      :      ¼"
Connection Type      :      ODF
Desiccant Blend      :      Activated alumina with molecular sieve
Dimensions (End to End)      :      3 ¾"
Dimensions (Top to Bottom)      :      1 ⅝"
Filtration      :      40 microns
Maximum Working Pressure      :      Sizes 03-16 600 psig/ 30-75 cubic inch 500 psig
Tonnage      :      1 / 4 to 1 Ton
  • Shock resistant steel construction
  • Solid copper fittings
  • High acid and moisture removal
  • Corrosion resistant epoxy powder paint finish
  • Copeland® Approved for POE oils
  • Compatible with all refrigerants (including R290)
  • Desiccant blend activated alumina with molecular sieve
  • Filtration 40 microns
  • Maximum working pressure sizes 03-16 600 psig/30-75 cu-in 500 psig
  • Connection size No.188 in
  • Connection type ODF
  • Dimensions (end to end) 3 No.190 in
  • Dimensions (top to bottom) 1 No.8541 in
  • Tonnage 1/4 to 1 ton
