Sloan® 33820054 2493899
  1. pin-int

Sloan® 33820054 2493899

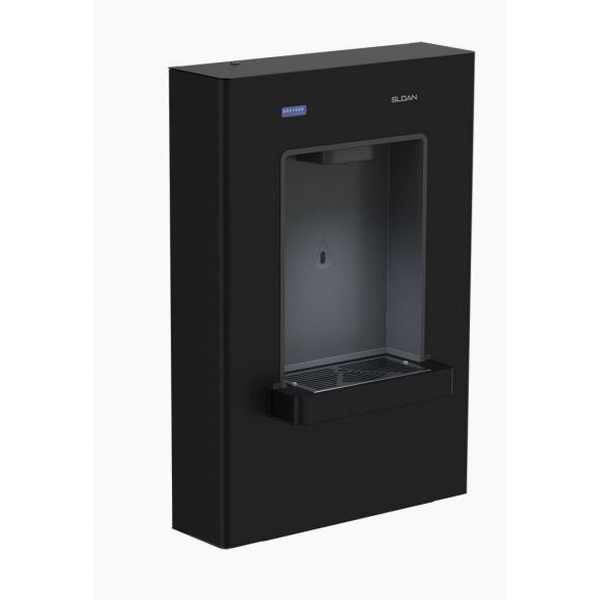

Sloan® DropSpot™ DRS100 Series 33820054 Bottle Filler, 115 V, 1 A, Black

  • Manufacturer: Sloan Valve Company
  • Brand Name: Sloan®
  • Part Number: 2493899
  • MPN: 33820054
  • UPC: 671254607330
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

Sloan's DropSpot™ On-wall Bottle Filler Filtered Unrefrigerated black powder coat. Bottle filler shall include sensor operated activation with a 20 second maximum run time. Bottle counter display indicates the number of 16 oz plastic bottles saved as well as the ounces of water dispensed for water consumption tracking. White light indicates the water filter status. Unit shall include LED lights that illuminate the bottle filling area. Bottle filler housing construction shall be galvaneeled steel with black powder coat finish. Bottle filler shall provide up to 1.2 gpm flow rate with a laminar flow. Cabinet door shall have swing-open mechanism, providing easy access for filter replacement. Filter used in the unit shall have capacity of 3000 gallons at a minimum, and shall reduce PFAS (PFOA and PFOS), lead, microplastic, cyst, chlorine and class 1 particles.

Sloan® Bottle Filler, DRS100 Series, 1.2 gpm Fill Rate, 115 V, 1 A, 60 Hz, Indoor Installation, Wall Mounting, 304 Stainless Steel Housing, Black Housing, 7.9 in Overall Length, 19 in Overall Width, 27.8 in Overall Depth, Additional Information: Galvannealed/Powder-Coated Finish, Without Remote Chiller

Additional Information      :      Galvannealed/Powder-Coated Finish, Without Remote Chiller
Amperage Rating      :      1 A
Fill Rate      :      1.2 gpm
Frequency Rating      :      60 Hz
Housing Color      :      Black
Housing Material      :      304 Stainless Steel
Installation Location      :      Indoor
Mounting Type      :      Wall
Overall Depth      :      27.8 in
Overall Length      :      7.9 in
Overall Width      :      19 in
Series      :      DRS100 Series
Voltage Rating      :      115 V
  • Touch-free sensor operated bottle filler with 20 second max run time
  • ADA compliant when installed properly
  • Up to 1.2 gpm fill rate for quick fill
  • Swing-open cabinet provides easy access to filter
  • Laminar flow water supply
  • Soft ambient white light to indicate filter status
  • Backlit LED light that illuminates bottle filling area when sensor is activated
  • Bottle Counter Display indicates the number of 16 oz plastic bottles saved as well as the ounces of water dispensed for water consumption tracking
  • Rough-in matches other manufacturers' recommended rough-in locations for easy replacement
  • Prop 65 compliant
  • Effectively reduces Total PFAS, lead, microplastic, cyst, particulate class 1, and chlorine
  • Effectively reduces Total PFAS, lead, microplastic, cyst, particulate class 1, and chlorine
