POWERS™ LFLM495-1 1/2 2408581
  1. pin-int

POWERS™ LFLM495-1 1/2 2408581

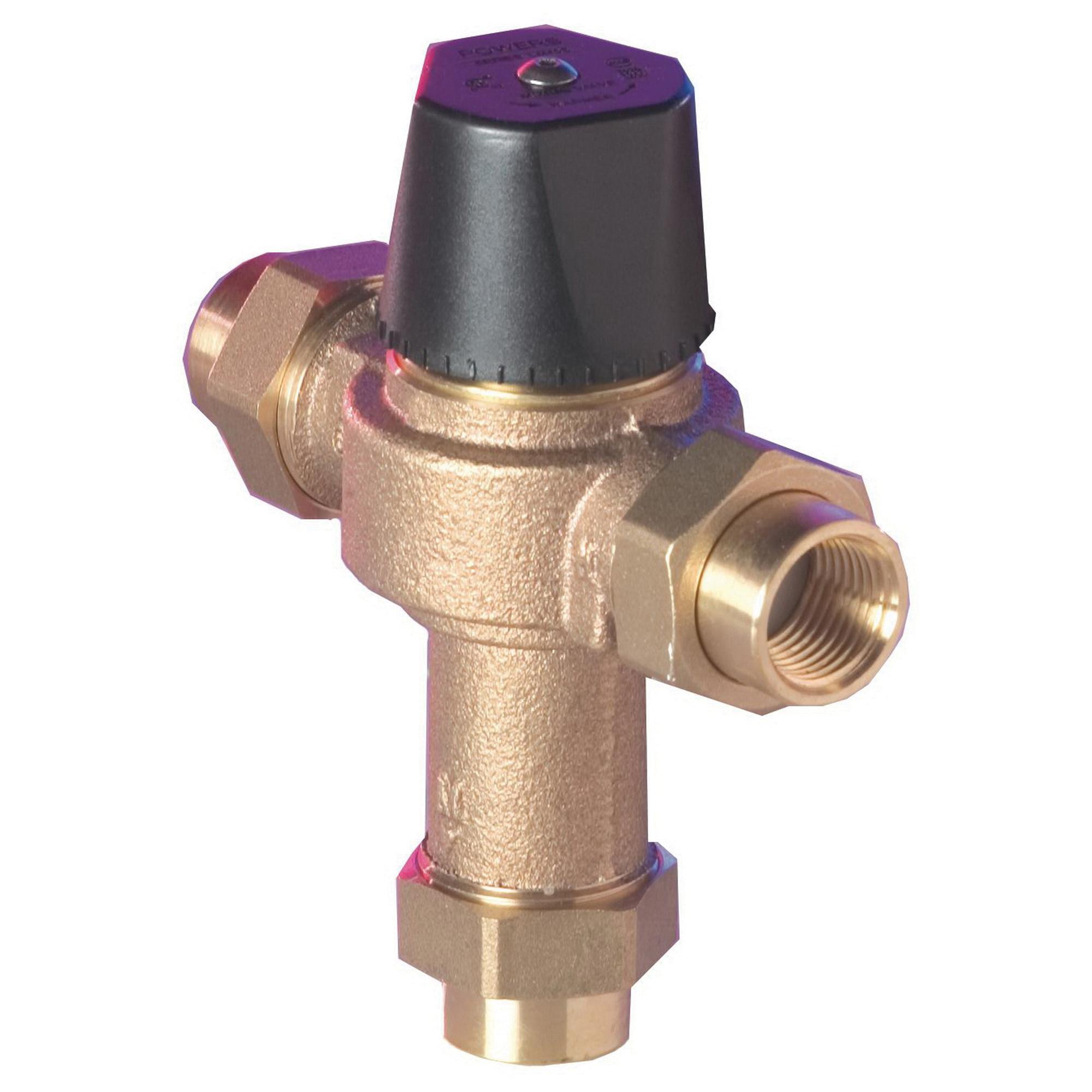

POWERS™ HydroGuard® LFLM495 Series LFLM495-1 1/2 Thermostatic Mixing Valve, 1/2 in Nominal, FNPT, 0.5 gpm, 125 psi

  • Manufacturer: Watts Water Technologies
  • Brand Name: POWERS™
  • Part Number: 2408581
  • MPN: LFLM495-1 1/2
  • UPC: 686408614447
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

HydroGuard® LFLM495 thermostatic tempering valves are designed for individual and multiple lavatory applications where the temperature of hot water must be controlled for safe, economic use. An advanced thermal actuator quickly senses and compensates for outlet temperature fluctuations induced by water temperature and pressure changes in the supply line. The Series LFLM495 features power's advanced paraffin-based actuation technology, integral checks and inlet screens to prevent cross flow and contamination. Rugged construction features solid lead-free brass body and corrosion-resistant internal components ensuring years of dependable, trouble-free service. Temperature adjustment handle is simple to adjust and has a locking mechanism to prevent tampering. The HydroGuard® Series LFLM495 is ASSE 1069 and 1070 listed and CSA B125 certified.

POWERS™ HydroGuard® Thermostatic Mixing Valve, LFLM495 Series, 1/2 in Nominal, FNPT Connection, 125 psi, Pressure Class: 125 lb, 0.5 gpm Flow Rate, Water Media, 4-7/8 in Inlet to Outlet Length, Copper Silicone Alloy Body, 80 to 120 deg F, 5-7/16 in H

Body Material      :      Copper Silicone Alloy
Connection Type      :      FNPT
Dimensions      :      5-7/16 in H
Flow Rate      :      0.5 gpm
Inlet to Outlet Length      :      4-7/8 in
Media      :      Water
Nominal Size      :      1/2 in
Pressure Class      :      125 lb
Pressure Rating      :      125 psi
Series      :      LFLM495 Series
Temperature Rating      :      80 to 120 deg F
  • Adjustable temperature selection with locknut to prevent tampering
  • Quickly senses and compensates for outlet temperature fluctuations caused by temperature and pressure changes in the supply line
  • Lead-free brass body and corrosion-resistant internal components ensure years of dependable service
  • For single and multiple lavatory applications where the water temperature must be controlled for safe use
