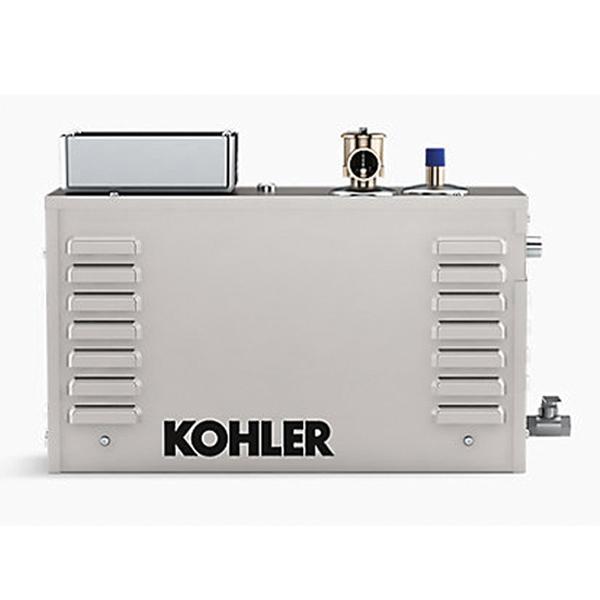

Kohler® K-5531-NA 2427620

Escape to the soothing comfort of your private steam bath, ready in just 60 s. With the press of a button, this 11 kW steam generator delivers the purifying benefits of steam, including respiratory relief and cleansing the body of toxins and impurities, to your shower stall or custom shower environment.

Kohler® Steam Generator, Invigoration Series, 11 kW, 240 V, 60 A, 50/60 Hz, 3/8 in Water Inlet, 3/8 in Drain Outlet, 1/2 in Steam Outlet, 3/4 in Safety Valve, 317 cu-ft Maximum Steam Room, NPT Connection, Stainless Steel Housing, 19-1/8 in Overall Length, 8-3/8 in Overall Width, 11-3/4 in Overall Height

• 317 cu-ft maximum volume rating for custom showering applications
• Generator is constructed of insulated stainless steel, which maintains the temperature while ensuring the case is safe to the touch
• Invigoration Series steam generators produce steam within 1 min of pushing the power button
• This Series is designed to produce steam at a consistent rate, which greatly minimizes temperature fluctuations
• At the touch of a button, water flushes sediment out of the generator through the steam head, no manual flushing required
• The interface is easy to read and use with clear function indicators for controlling operation, time and temperature
• The Invigoration Series uses approximately 1 gal of water per 20 min session, which is significantly less water than a traditional shower experience
• To ensure safety, the system automatically shuts down after 20 min if not reactivated by the user
• The generator case is constructed of insulated stainless steel, which maintains the temperature while ensuring the case is safe to the touch
• Kohler® offers a 3 years limited warranty on steam generators and a 5 years limited warranty on controls
