Jomar Valve® 150-205G 2492794
  1. pin-int

Jomar Valve® 150-205G 2492794

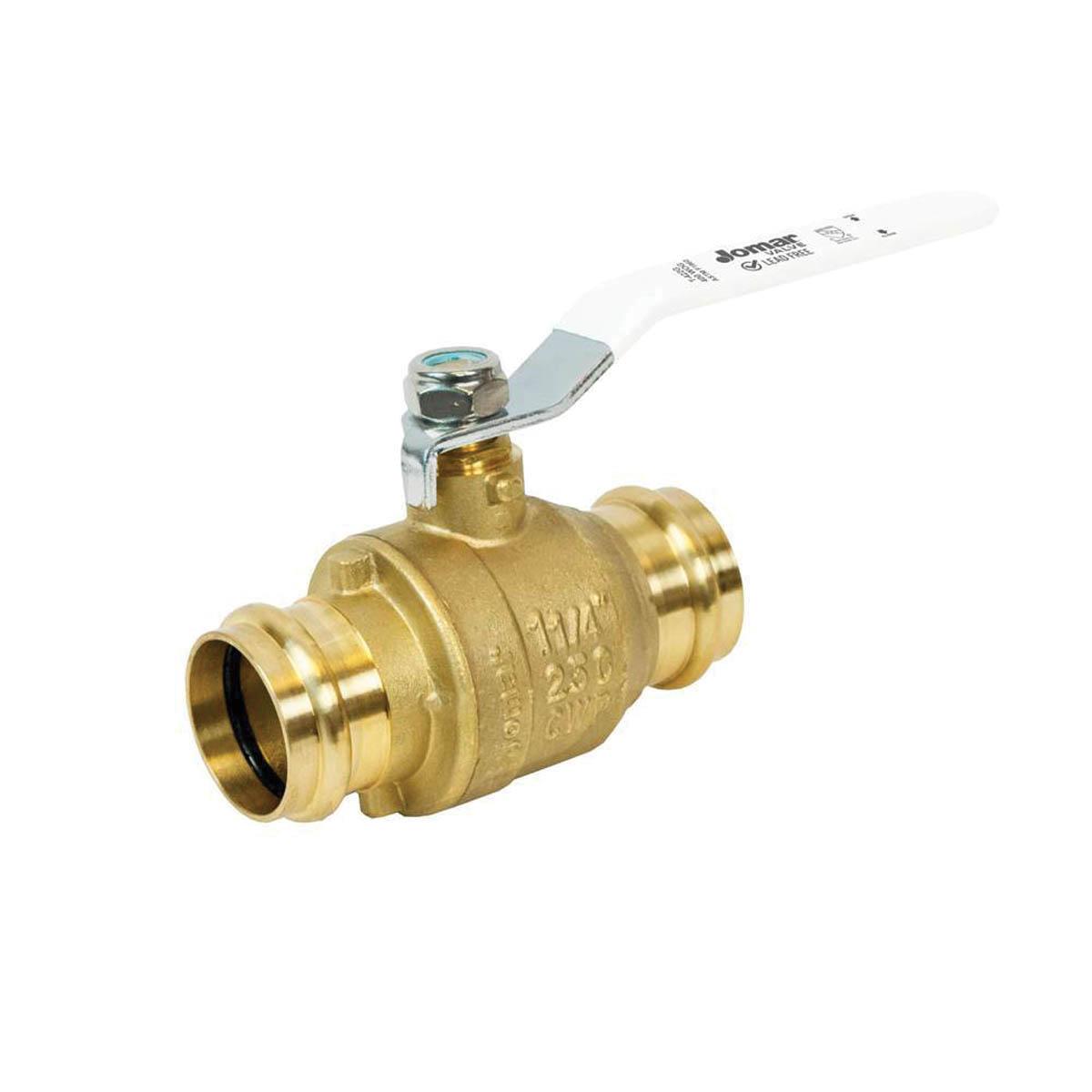

Jomar Valve® JP-150G Series 150-205G Ball Valve, 1 in, Press, Brass, 250 psi

  • Manufacturer: Jomar Valve
  • Brand Name: Jomar Valve®
  • Part Number: 2492794
  • MPN: 150-205G
  • UPC: 662527307484
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

Jomar Valve® Ball Valve, JP-150G Series, 1 in Nominal, Press Connection, Full Port, 250 psi, 0.98 in Orifice, 3.92 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Brass Body, PTFE Seat, Brass Stem, Buna-N/EPDM/NBR Seal, PTFE Packing, Steel Handle, Brass Ball, Lead-Free, 250 deg F

Ball Material      :      Brass
Body Material      :      Brass
Connection Type      :      Press
Handle Material      :      Steel
Inlet to Outlet Length      :      3.92 in
Lead-Free/Contains Lead      :      Lead-Free
Nominal Size      :      1 in
Orifice Size      :      0.98 in
Packing Material      :      PTFE
Port Type      :      Full
Pressure Rating      :      250 psi
Seal Material      :      Buna-N/EPDM/NBR
Seat Material      :      PTFE
Series      :      JP-150G Series
Stem Material      :      Brass
Temperature Rating      :      250 deg F
Top to Inlet Center      :      2-1/4 in
  • Dezincification-resistant brass
  • Gland follower and single O-ring stem design
  • Blowout-proof stem
  • 100% leak tested
  • Wetted surface contain less than 0.25% lead content
