ISOSTATIC 101206 2415566

  • Manufacturer: Isostatic Industries, Inc
  • Brand Name: ISOSTATIC
  • Part Number: 2415566
  • MPN: 101206
  • UPC: 846802002060
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

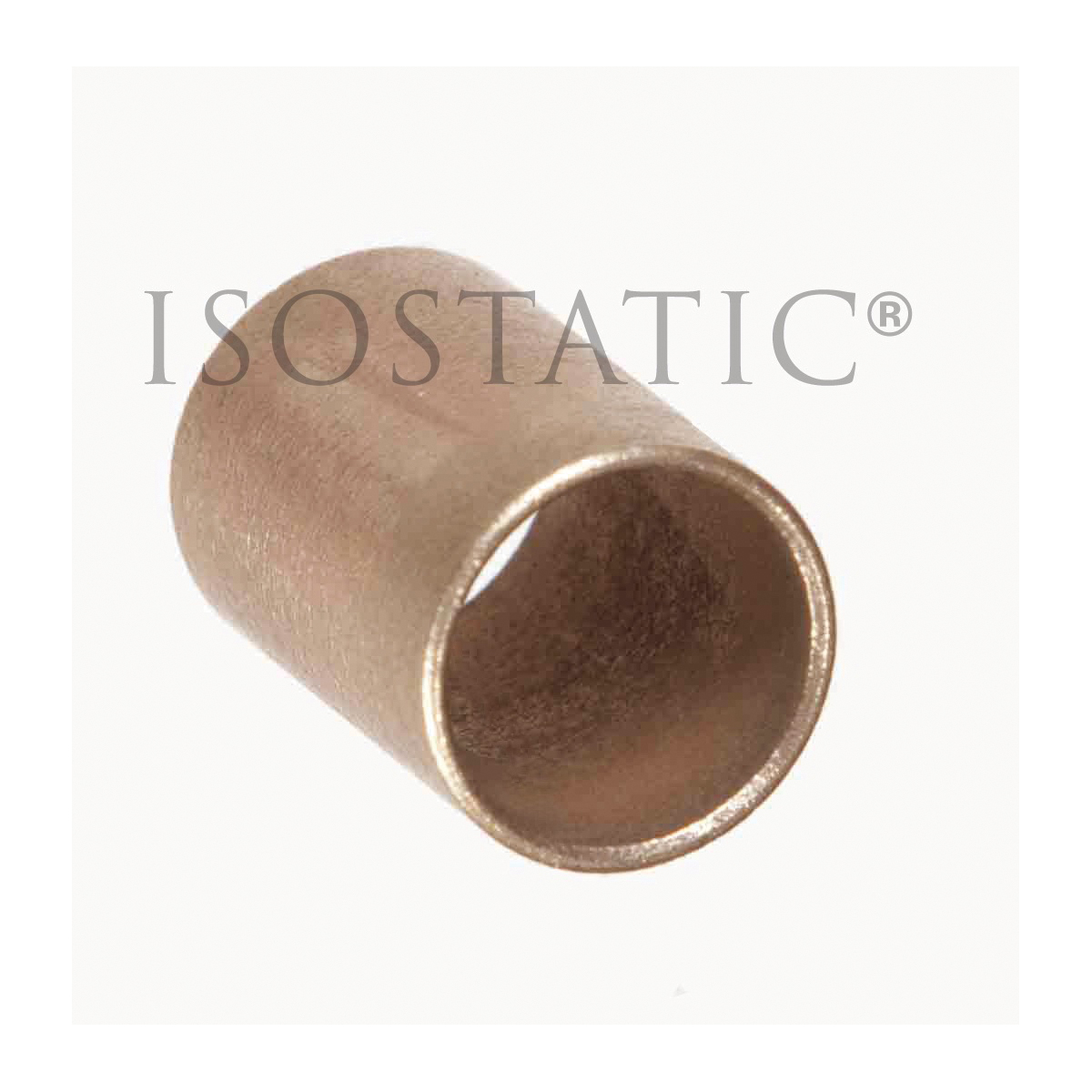

ISOSTATIC™ Oilube® Sleeve Bearing, Round Bore, 1/2 in Bore, 5/8 in OD, 9/16 in Width, 10 to 175 deg F, 2000 psi Maximum, 1200 sfpm Maximum Velocity, 50000 psi/sq-ft/min Maximum PV, SAE 841 Powdered Metal/Oil Impregnated Bronze Bearing

Bearing Material      :      SAE 841 Powdered Metal/Oil Impregnated Bronze
Bore Diameter      :      1/2 in
Maximum PV Rating      :      50000 psi/sq-ft/min
Maximum Pressure      :      2000 psi
Maximum Velocity      :      1200 sfpm
Outside Diameter      :      5/8 in
Temperature Rating      :      10 to 175 deg F
Type      :      Round Bore
Width      :      9/16 in
  • Standard stock products
  • SAE 841 copper (87 to 90%), tin (8 to 9%), carbon and other elements
  • Powdered metal bronze providing interconnected reservoirs for oil
  • Vacuum impregnated with SAE 30 oil during the manufacturing process
  • Self-lubricating, when in motion oil rises to the surface for lubrication and restores itself when at rest
  • Ideal for heavy loads at moderate speeds or light loads at high speeds
