Elkay® EZOSTL8SC 2396686

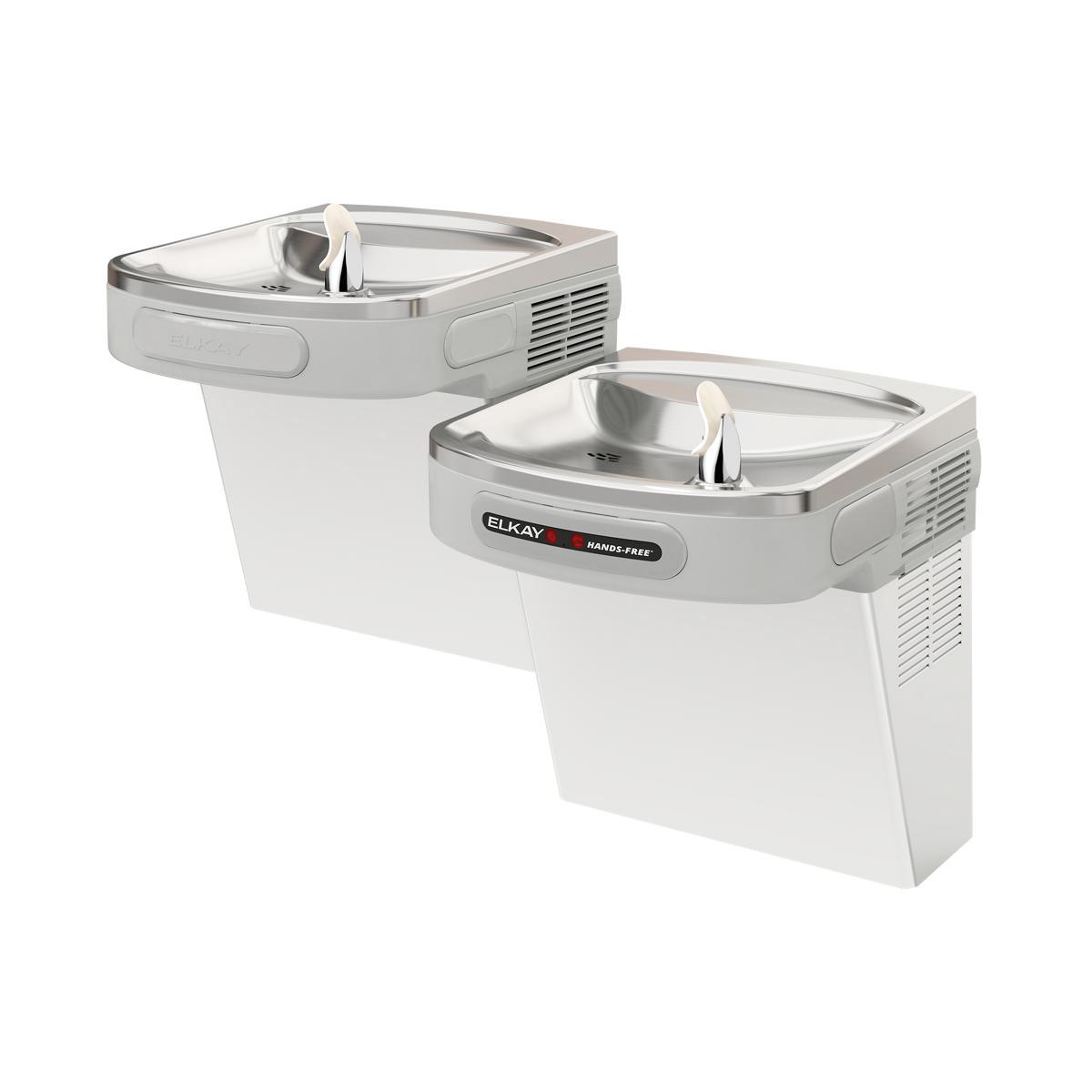

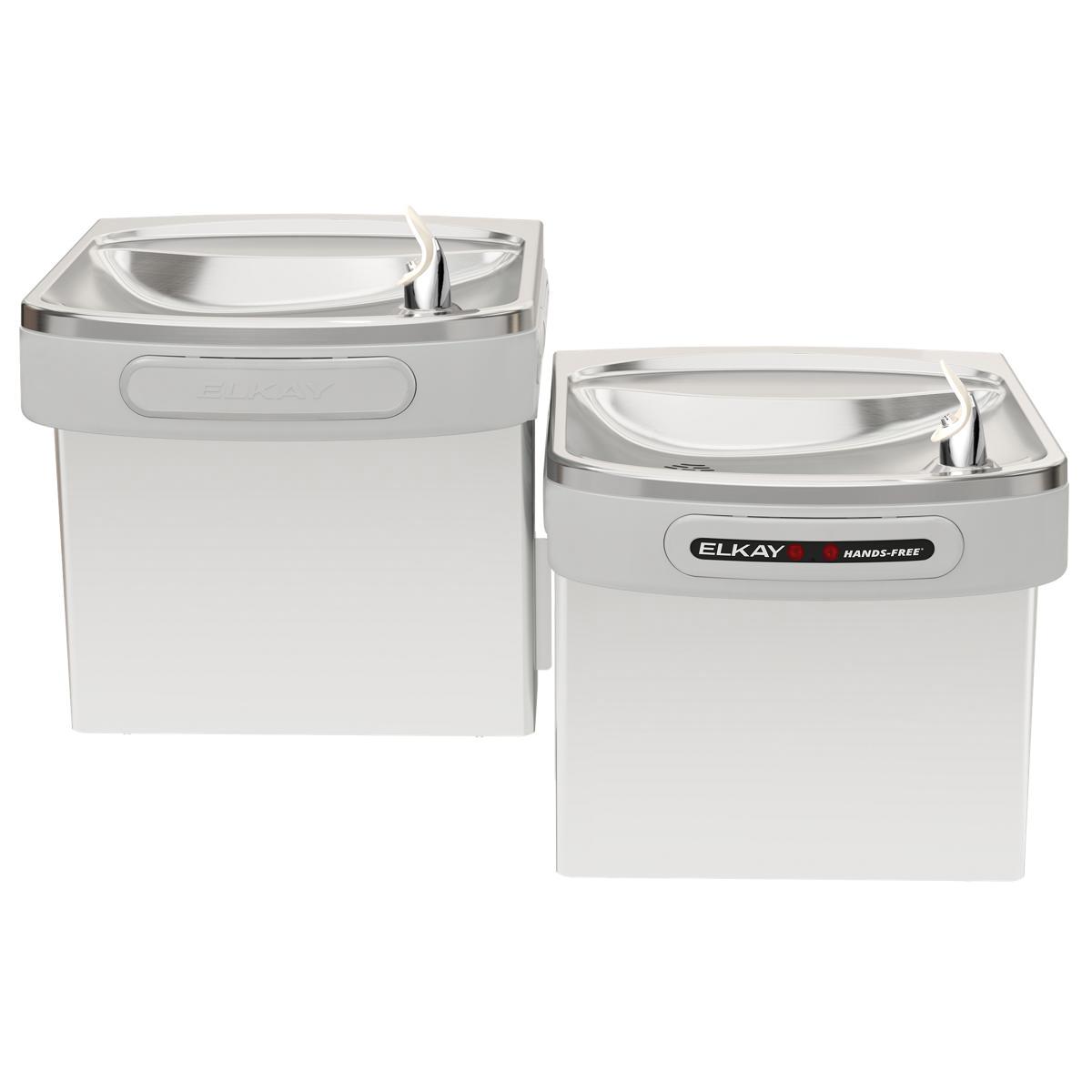

Elkay® EZOSTL8SC Hands-Free Activation Bi-Level Water Cooler
- Manufacturer: Zurn Elkay Water Solutions
- Brand Name: Elkay®
- Part Number: 2396686
- MPN: EZOSTL8SC
- UPC: 094902247595
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at ST LOUIS
-
Available at All Branches
-
Price:
Wall Mount Versatile Hands-free Activation Bi-level ADA Cooler Nonfiltered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 deg F drinking water, based on 80 deg F inlet water and 90 deg F ambient, per ASHRAE 18 testing. Features shall include Hands Free. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Sensor Bubbler activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.
Hands-Free Activation Bi-Level Water Cooler, 36-3/4 in Overall Length, 19 in Overall Width, 25-5/16 in Overall Depth, Additional Information: Wall-Mount, Stainless Steel Finish
| ADA Compliance | : | Yes |
| Additional Information | : | Wall-Mount, Stainless Steel Finish |
| Amperage Rating | : | 5 A |
| Dimensions | : | 36.75 in L x 19 in W x 25.31 in H |
| Finish | : | Stainless Steel |
| Flow Rate | : | 8 gph |
| Mounting Type | : | Wall |
| Number of Users | : | 2 |
| Operation Type | : | Electronic Sensor Bubbler |
| Overall Depth | : | 25-5/16 in |
| Overall Length | : | 36-3/4 in |
| Overall Width | : | 19 in |
| Pressure Rating | : | 370 psi |
| Voltage Rating | : | 120 V |
| Voltage | : | 115V/60Hz |
| activation_type | : | Electronic Sensor Bubbler |
| bubbler_style | : | Flexi-Guard ® Safety Bubbler |
| chilling_options | : | 8.0 GPH |
| features_drinking_water_prods | : | Hands Free |
| full_load_amps | : | 5 |
| installation_location | : | Indoor |
| item_dimensions | : | 36-3/4 x 19 x 25-5/16 |
| marketing_finish_name | : | Stainless Steel |
| marketing_material_type | : | Stainless Steel |
| mount_type_drinking_water | : | Wall Mount (On Wall) |
| number_of_stations | : | 2 |
| rated_watts | : | 370 |
- Compressor: Hermetically-sealed, reciprocating type, single phase. Sealed-in lifetime lubrication
- Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated
- Cooling Unit: Combination tube-tank type. Continuous copper tubing with is fully insulated with EPS foam that meets UL requirements for self-extinguishing material
- Refrigerant Control: Refrigerant R-134a is controlled by accurately calibrated capillary tube
- Temperature Control: Easily accessible enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements
Instruction/Installation Manual
