Dormont® D9000122 2507345

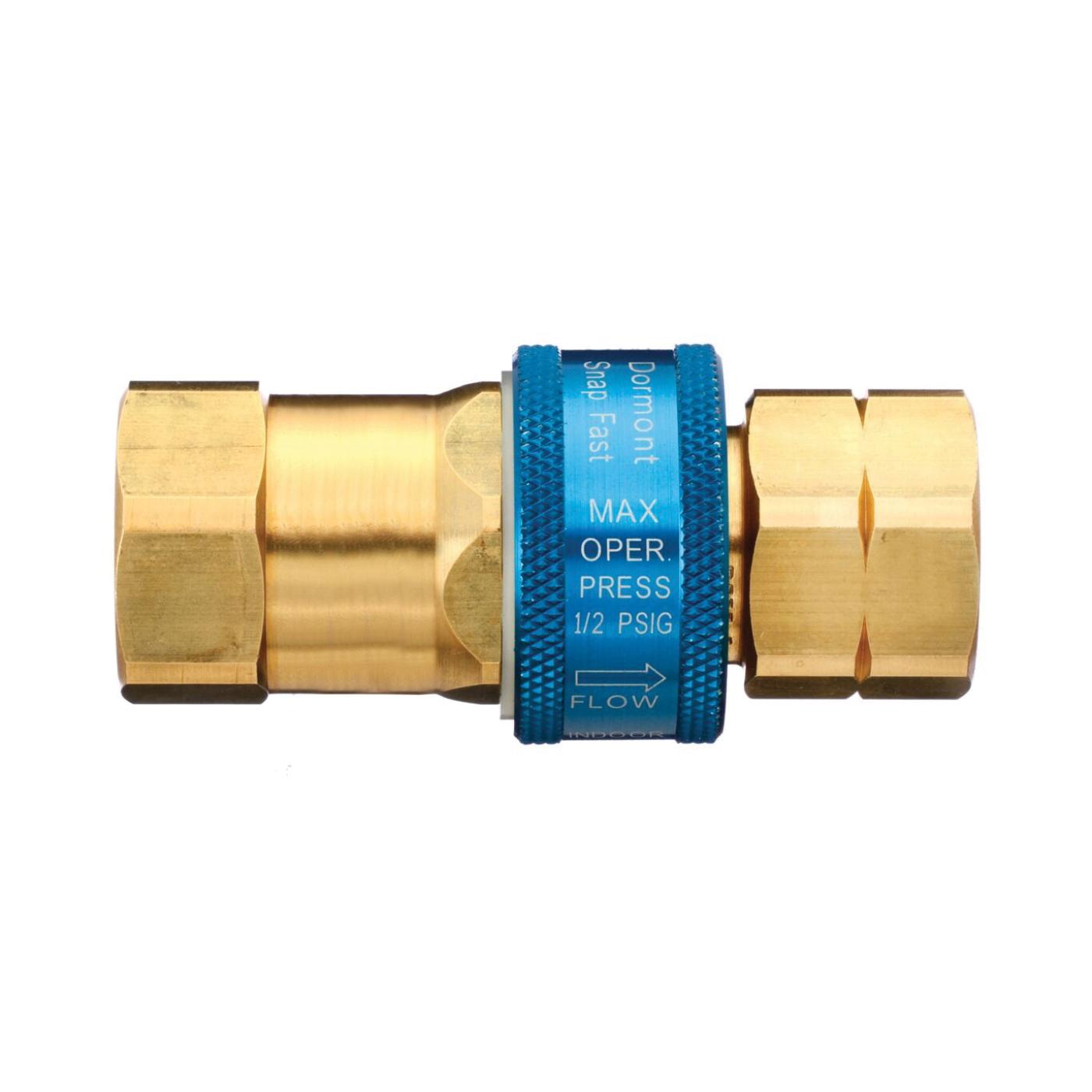

Dormont® SnapFast Series D9000122 Coupling, 3/4 in, NPTF x Push-To-Connect, Brass

  • Manufacturer: Watts Water Technologies
  • Brand Name: Dormont®
  • Part Number: 2507345
  • MPN: D9000122
  • UPC: 662447007709
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

This 3/4 in ID push to connect quick disconnect coupling. The quick disconnect contains a thermal shut-off feature which is a polymer ring located inside the nipple that will melt and close the gas supply valve if the temperature rises above 350 deg F. This quick disconnect also features a push to connect feature which allows the coupling components to be joined quickly by simply pushing them together until they snap into place. There is no need to hold or slide the operating ring.

Dormont® Coupling, SnapFast Series, NPTF x Push-To-Connect Connection, 3/4 in Connection, 225000 Btu/hr, 0.5 psi, 3/4 in Inside Diameter, Brass, 32 to 350 deg F

BTU Rating      :      225000 Btu/hr
Connection Size      :      3/4 in
Connection Type      :      NPTF x Push-To-Connect
Inside Diameter      :      3/4 in
Material      :      Brass
Pressure Rating      :      0.5 psi
Series      :      SnapFast Series
Temperature Rating      :      32 to 350 deg F
  • CSA certified
  • Designed specifically for the foodservice industry
  • Internal thermal shutoff feature
  • Push to connect technology
