Bell & Gossett 172713LF 2501145
  1. pin-int

Bell & Gossett 172713LF 2501145

Bell & Gossett 60 Series 608S 172713LF Centrifugal Pump, 1/2 hp, 1 ph, 115/230 V, Iron Housing

  • Manufacturer: Xylem
  • Brand Name: Bell & Gossett
  • Part Number: 2501145
  • MPN: 172713LF
  • UPC: 683328222943
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at ST LOUIS
  • loading Available at All Branches

The series e-60 is a three-piece centrifugal in-line pump designed for HVAC, potable water and other clean water applications in the residential and commercial markets. Series e-60 offers great value with class-leading hydraulic efficiency, long pump life and easy serviceability. Quiet operation, a robust mechanical seal and maintenance-free bearings make Series e-60 a truly worry-free, install-and-forget solution.

Bell & Gossett Centrifugal Pump, 60 Series, Model: 608S, 115/230 V, 60 Hz, 1/2 hp, 1 ph Phase, 175 psi Maximum Pressure, 1750 rpm, 225 deg F, In-Line Mounting, Iron Housing, 21-7/16 in Overall Width, 13 in Overall Height

Frequency Rating      :      60 Hz
HP Rating      :      1/2 hp
Housing Material      :      Iron
Maximum Pressure      :      175 psi
Model      :      608S
Mounting Type      :      In-Line
Overall Height      :      13 in
Overall Width      :      21-7/16 in
Phase      :      1 ph
Series      :      60 Series
Speed Rating      :      1750 rpm
Temperature Rating      :      225 deg F
Voltage Rating      :      115/230 V
  • Maintenance free pump and motor design
  • Improved hydraulic performance
  • Smooth, quiet operation
  • Parts interchangeability
  • Quality product
  • Time proven Bell & Gossett three-piece reliability
  • Wider hydraulic coverage
  • Maximum performance efficiency
  • The Series 60's design has an internally, self-flushing mechanical seal, which provides superior flow circulation around the seal faces
  • The hydraulically balanced impeller and resilient motor also help provide smooth, quiet operation
  • All bronze construction

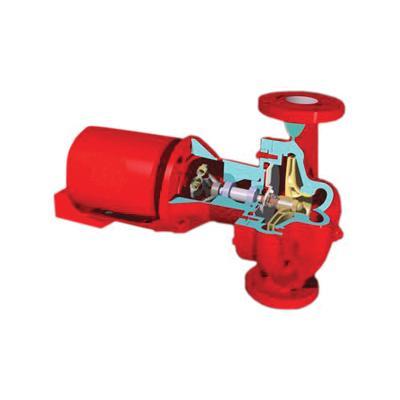

  • The Series 60 features a three-piece design, which includes a motor, bearing assembly and volute
